PG40 Series

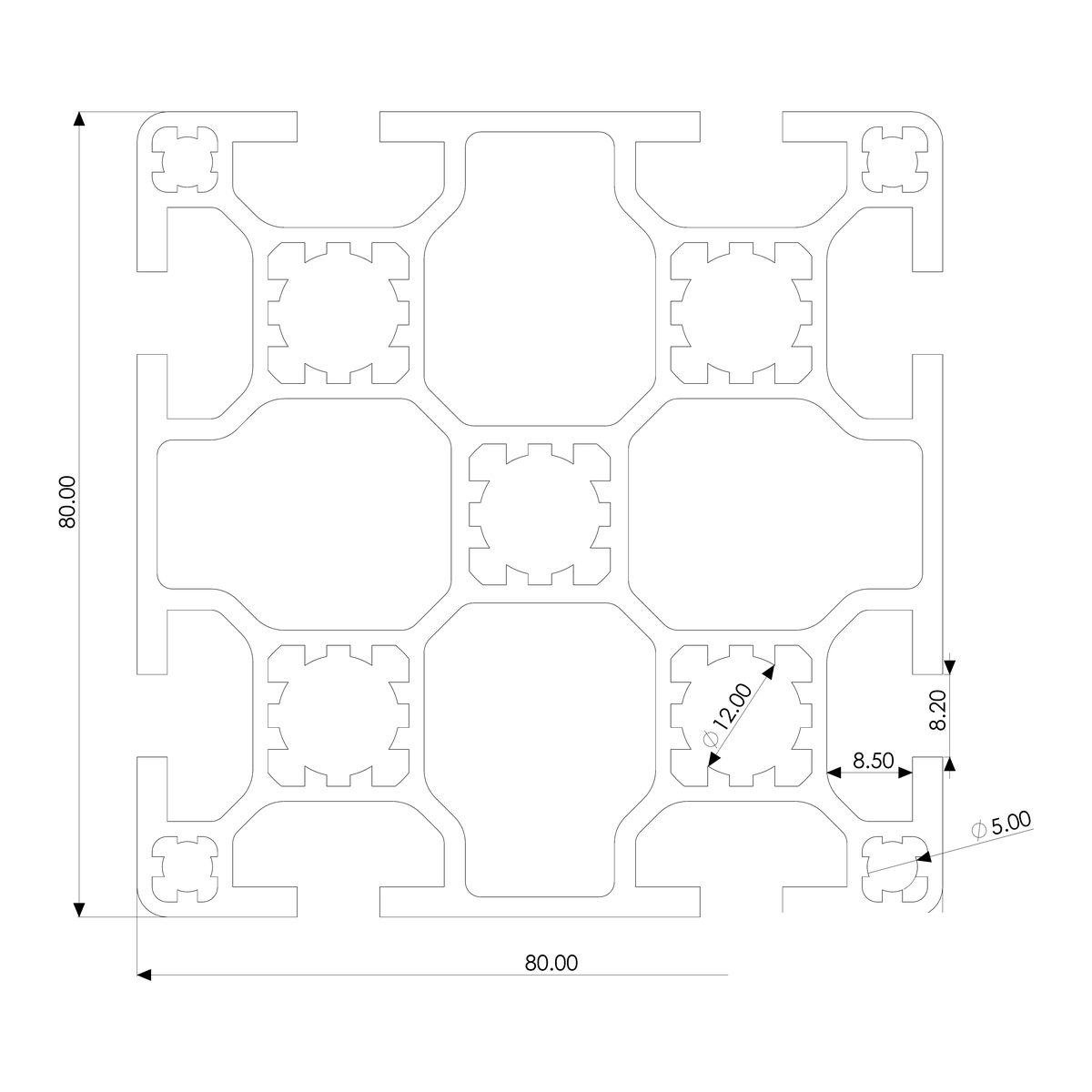

Profile 80×80, 8E, light, B
Used in robust applications where aesthetics and a clean professional exterior is required, additional core hole provides more flexibility for expansion in machine framing.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 110.2 | cm⁴ |
| Moment of Inertia | Iy | 110.2 | cm⁴ |
| Section Modulus | Wx | 27.6 | cm³ |
| Section Modulus | Wy | 27.6 | cm³ |
| Weight per Meter | G | 4.5 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
109 accessories work with this profile across 20 categories
