MayCAD Design Software
Design custom aluminum extrusion structures with automatic bill of materials, cut lists, and assembly instructions. World class design software.
Free for all customers. Used by 5,000+ companies worldwide.
Platform
Windows 64-bit
Size
~180 MB
License
Free
Export Formats
STEP, DXF, PDF
Product Catalogues
Technical Documentation
Comprehensive product catalogues with specifications, dimensions, and ordering information.
MayTec Profile System
Complete Product Catalogue
All profile series, connectors, fasteners, and accessories
MayTec Pipe & Joint System
Pipe Framing Catalogue
Pipe connectors and joint systems for lightweight structures
MayTec Telescopic System
Telescopic Profiles Catalogue
Telescopic sliding profiles for adjustable-length assemblies

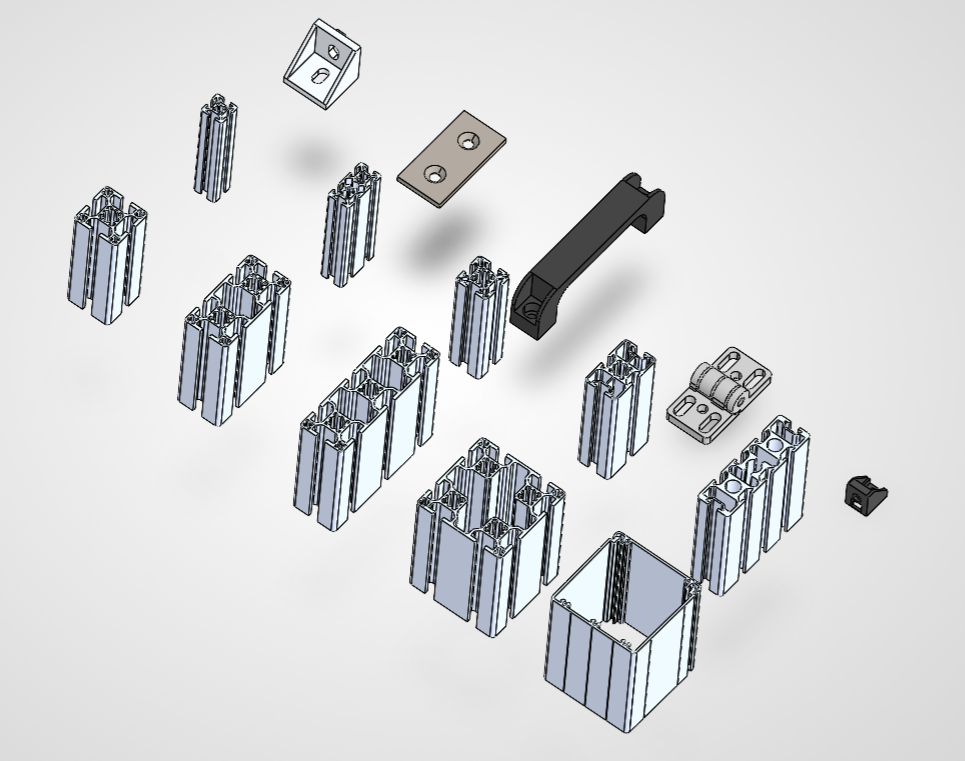

CAD File Library
Extensive 3D CAD Library
Most common MayTec components in one download. Profiles from PG16 to PG60, connectors, mounting blocks, handles, feet, and more.
200+
STEP Files
16
Categories
~36 MB
Download
Need Help Finding the Right Files?
Our engineering team can help with profile selection, custom designs, and technical questions.
