PG40 Series

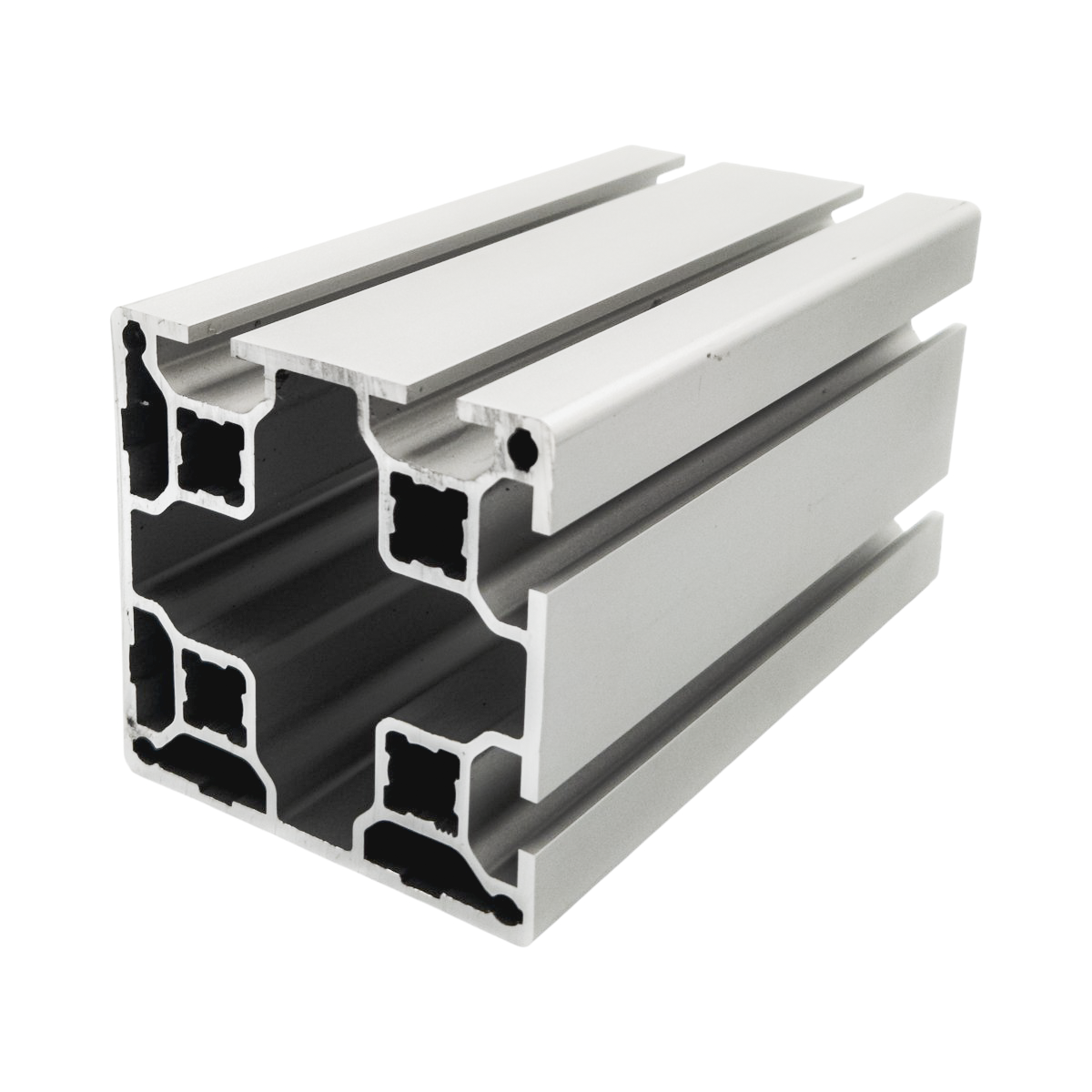

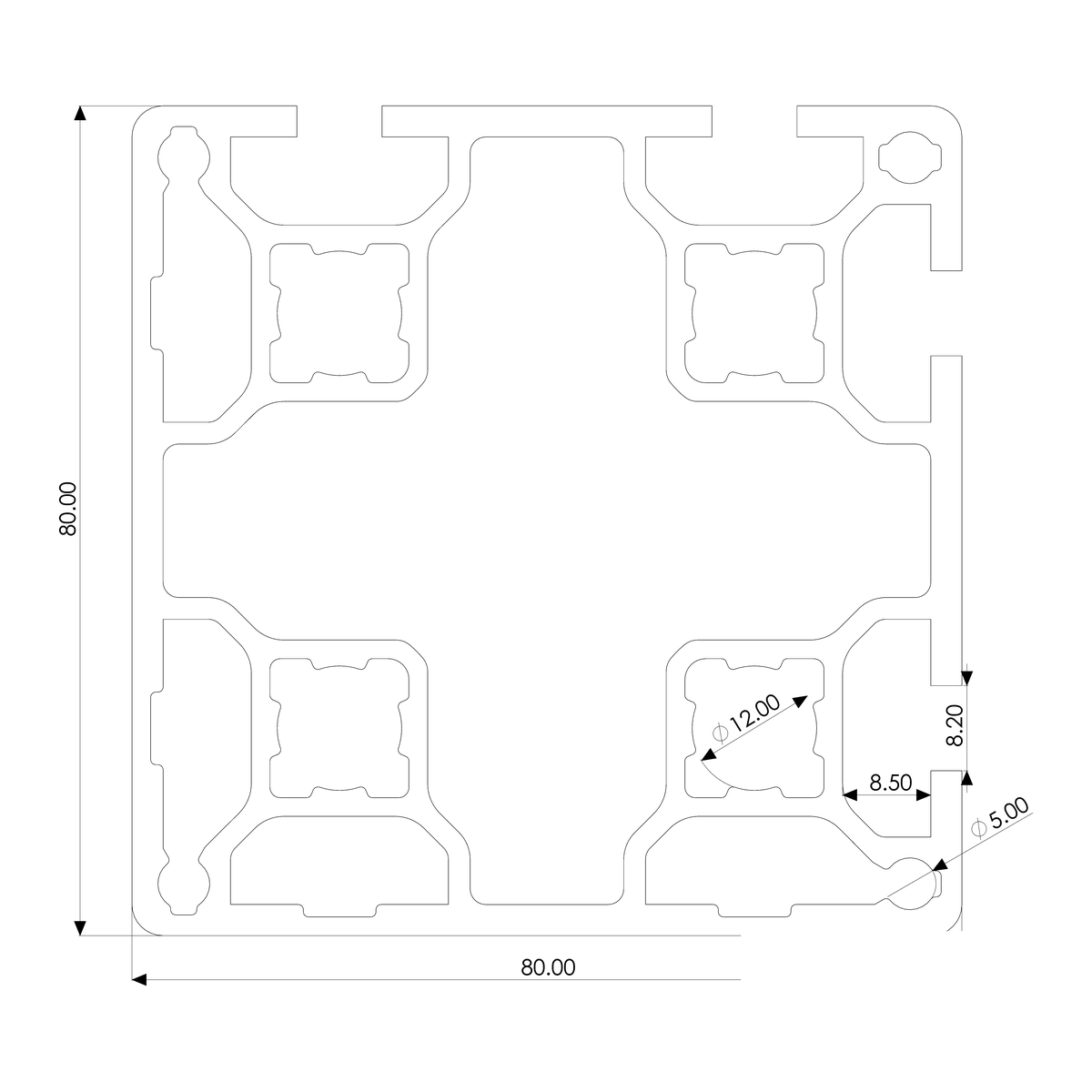

Profile 80×80, 4E, corner, light, plain
Used in robust applications where aesthetics and a clean professional exterior is required, smooth corner exterior provides a clean exterior for the edges of a frame while remaining flexible for expansion in framing.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 128 | cm⁴ |
| Moment of Inertia | Iy | 128 | cm⁴ |
| Section Modulus | Wx | 32 | cm³ |
| Section Modulus | Wy | 32 | cm³ |
| Weight per Meter | G | 4.5 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
