PG60 Series

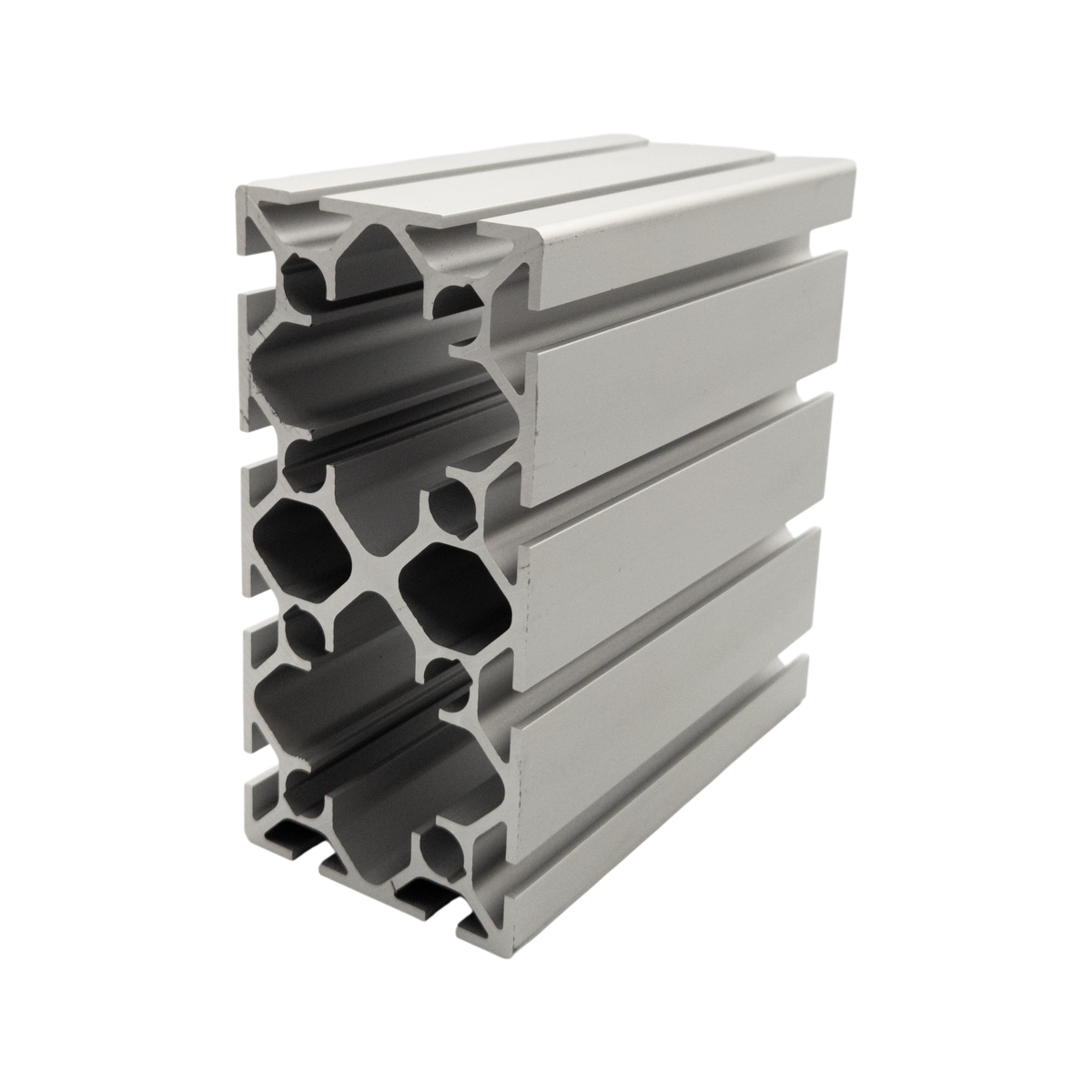

Profile 80×160, 12E, heavy, plain
Extremely robust profile optimized for rigidity, strength, versatility. Used in heavy weight bearing machine guarding applications, heavy and rigid applications with vibration dampening and heavy rigidity requirements while still remaining modular and easy to assemble.
Machining Options Available

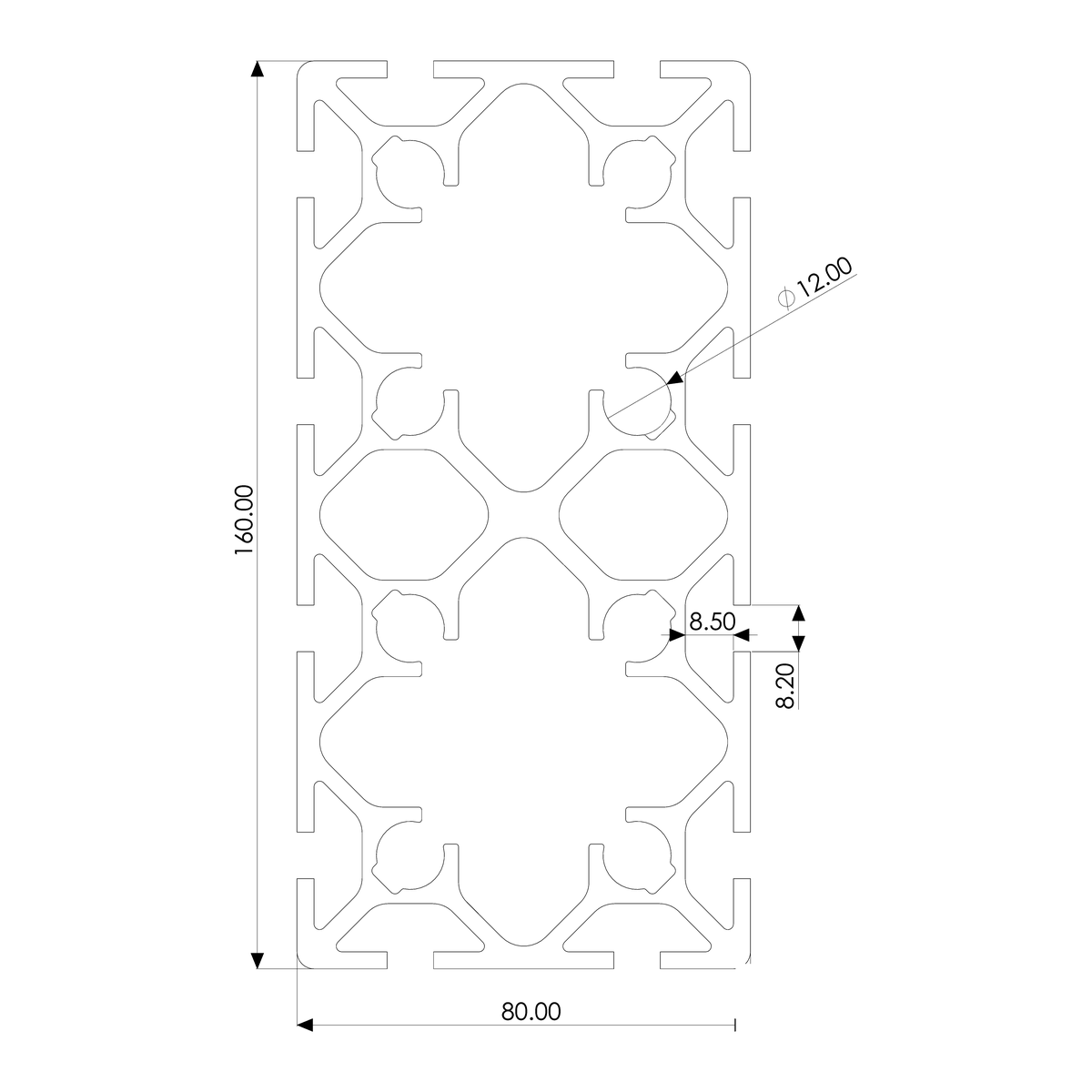

Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 883 | cm⁴ |
| Moment of Inertia | Iy | 269 | cm⁴ |
| Section Modulus | Wx | 110 | cm³ |
| Section Modulus | Wy | 67.3 | cm³ |
| Weight per Meter | G | 9.4 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
