PG60 Series

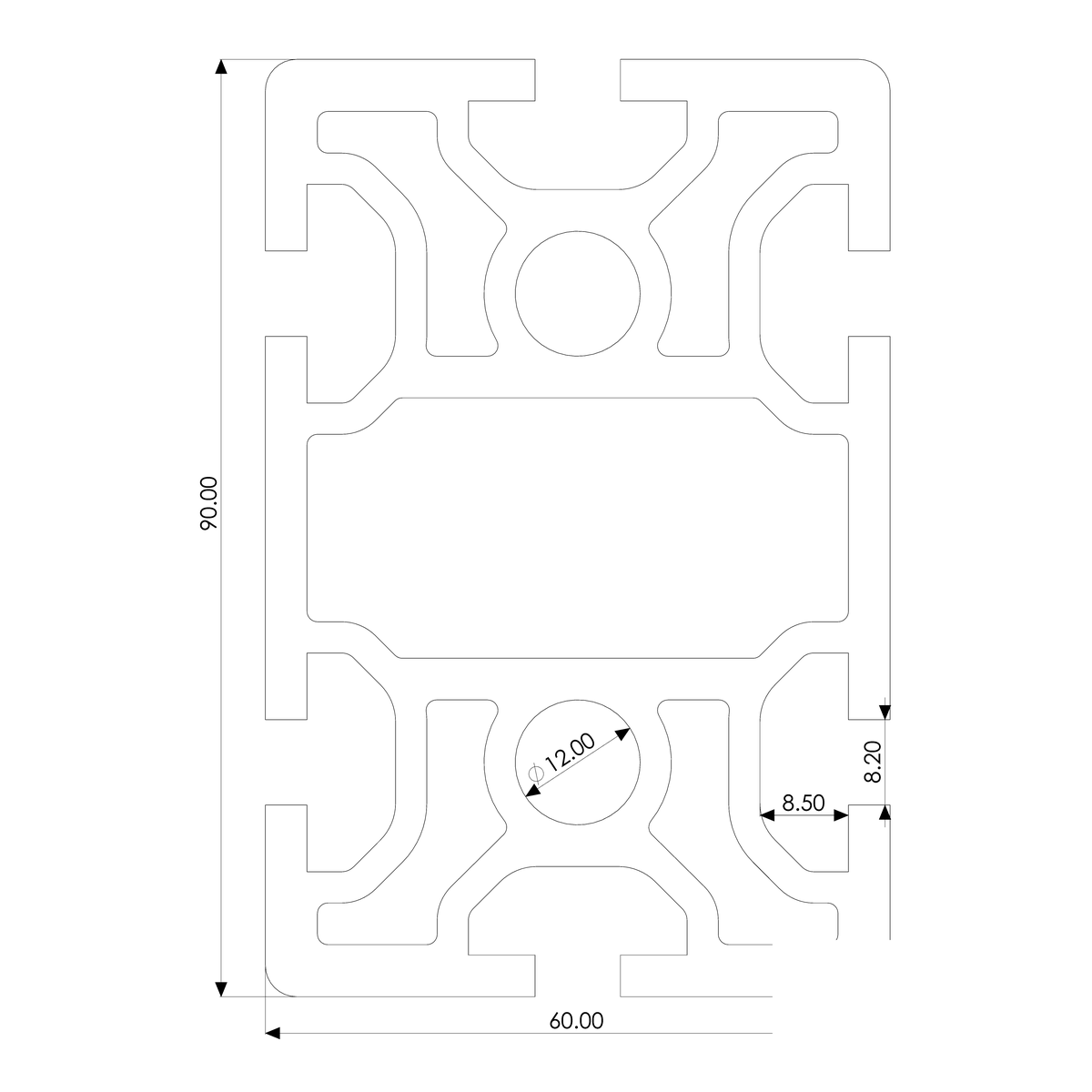

Profile 60×90, 6E, heavy
Extremely robust profile optimized for rigidity, strength, versatility. Used in machine guarding applications, machine framing.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 193 | cm⁴ |
| Moment of Inertia | Iy | 83 | cm⁴ |
| Section Modulus | Wx | 43 | cm³ |
| Section Modulus | Wy | 27.5 | cm³ |
| Weight per Meter | G | 6 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
101 accessories work with this profile across 18 categories
Anchor, universal, incl. spring
Connector
Angle GD-Zn, 40 x 39, natural
angle bracket
T-Nut for subsequent insertion, w. spring E, M8
t-nut
Threaded insert M14/M8, L30
threaded insert
Adust tilt-foot spindle steel, M14 x 66
foot
Mounting block screw type M6, black
mounting block
Cross bushing PG 60
Bushing

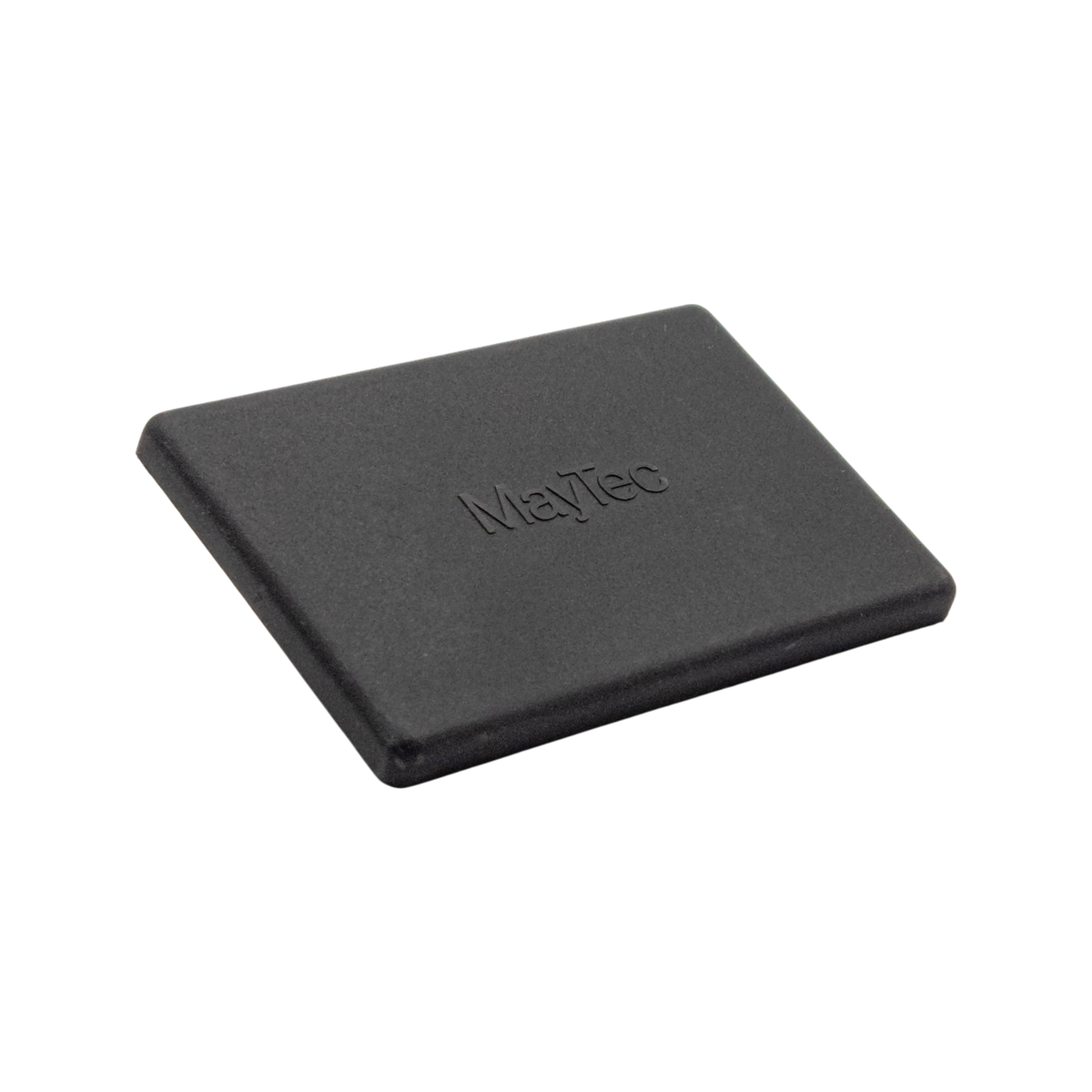

Cover Cap 60x90, Ø12, black
end caps
Connection plate 40x80
Connection Plate
Base plate 40x80, M14
Foot Plate
Handle PA, with bore Ø8.5 L151
handle
Latch lock compact (slam),face mount, keyed alike
locks and latches
