PG60 Series
Profile 60×60, 8F, angle, heavy
Profile optimized for extreme load bearing rigid applications with a unique configuration that offers additional connectivity in specific applications. This profile is used in machine framing and rapid prototyping for any custom application.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 35.2 | cm⁴ |
| Moment of Inertia | Iy | 35.2 | cm⁴ |
| Section Modulus | Wx | 9.9 | cm³ |
| Section Modulus | Wy | 9.9 | cm³ |
| Weight per Meter | G | 2.8 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
93 accessories work with this profile across 17 categories
Anchor, universal, incl. spring
Connector
Angle GD-Zn, 40 x 39, natural
angle bracket
T-Nut for subsequent insertion, w. spring F, M6
t-nut
Threaded insert M14/M8, L30
threaded insert
Adust tilt-foot spindle steel, M14 x 66
foot
Mounting block screw type M6, black
mounting block
Cross bushing PG 60
Bushing

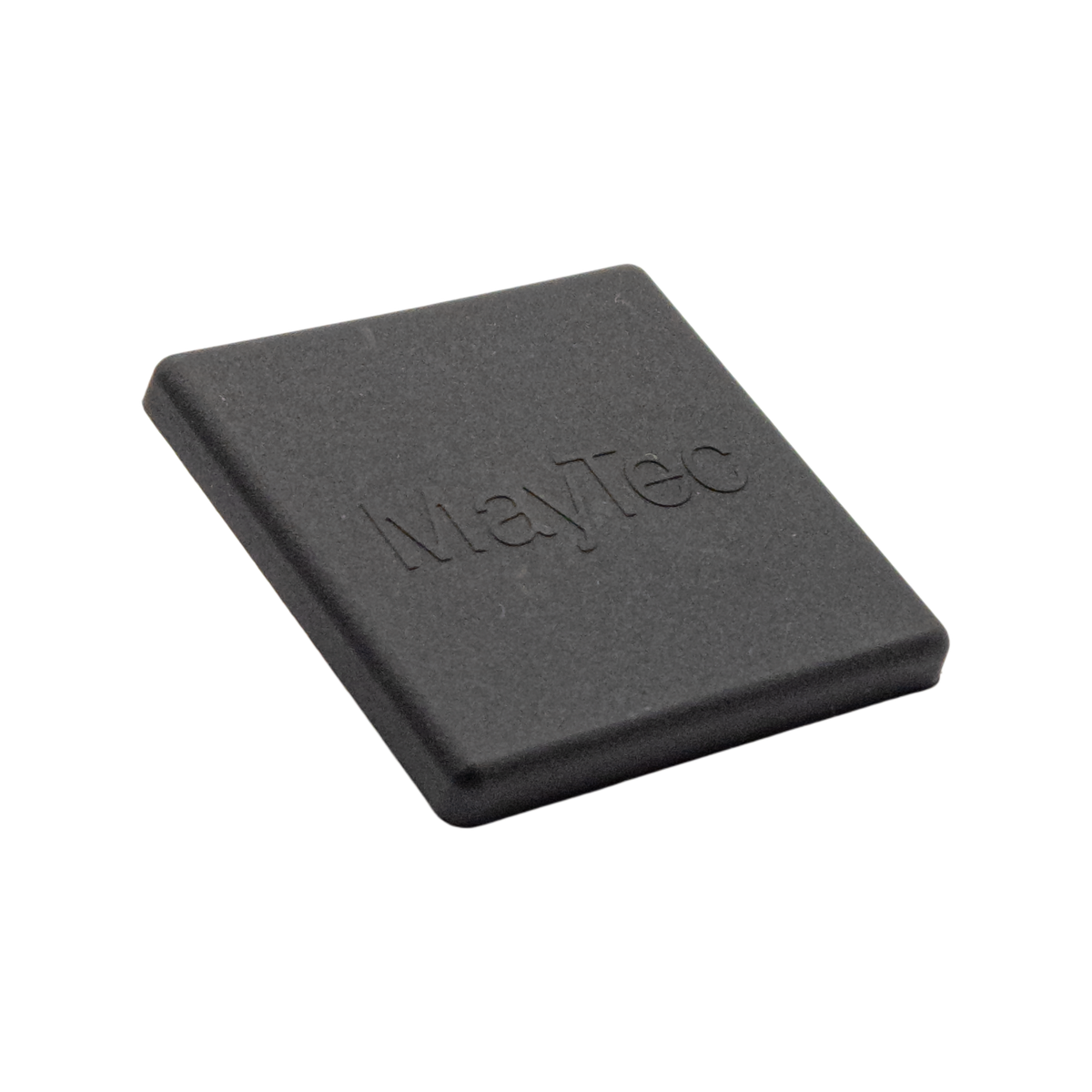

Cover Cap 60x60, Ø12, black
end caps
Connection plate 40x80
Connection Plate
Base plate 40x80, M14
Foot Plate
Handle PA, with bore Ø8.5 L151
handle
Latch lock compact (slam),face mount, keyed alike
locks and latches
You May Also Need

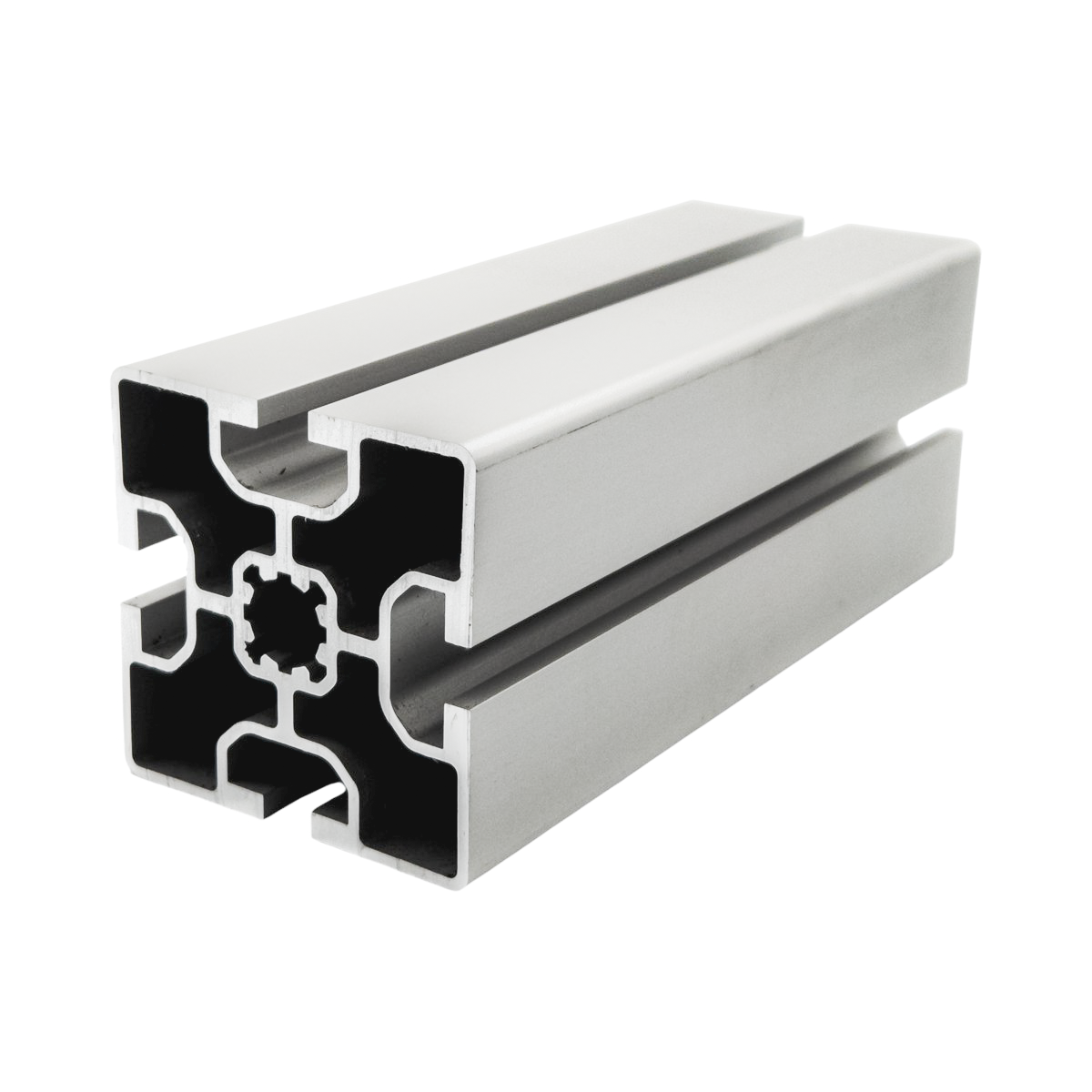

Profile 60x60
E-slotProfile · 1.11.060060.43LP

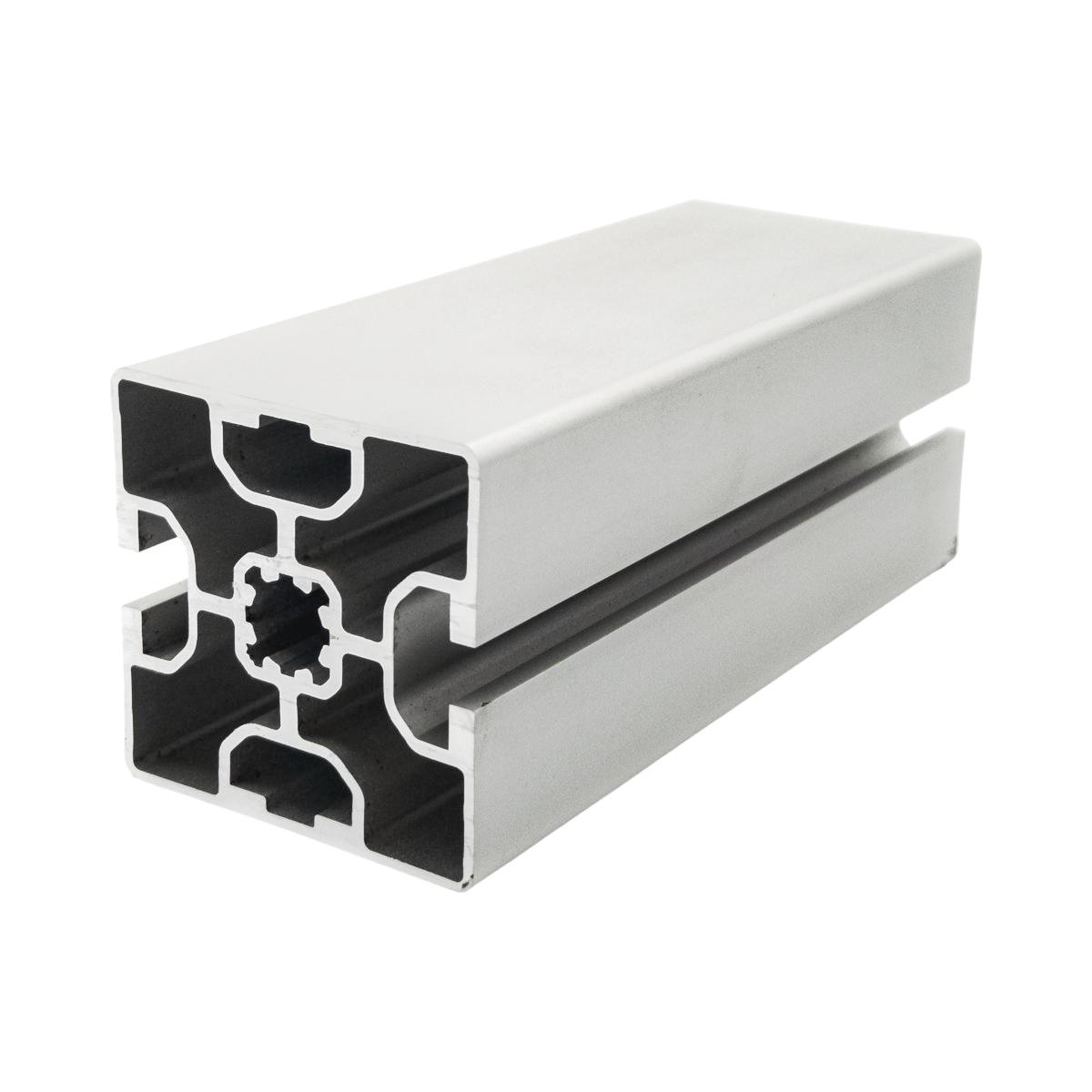

Profile 60x60
E-slotProfile · 1.11.060060.23LP
Profile 60x60
E-slotProfile · 1.11.060060.43SP
Profile 60x60
E-slotProfile · 1.11.060060.43S
Profile 60x60
E-slotProfile · 1.11.060060.43L
Profile 60x60
E-slotProfile · 1.11.060060.23SP
Profile 60x60
E-slotProfile · 1.11.060060.22SP

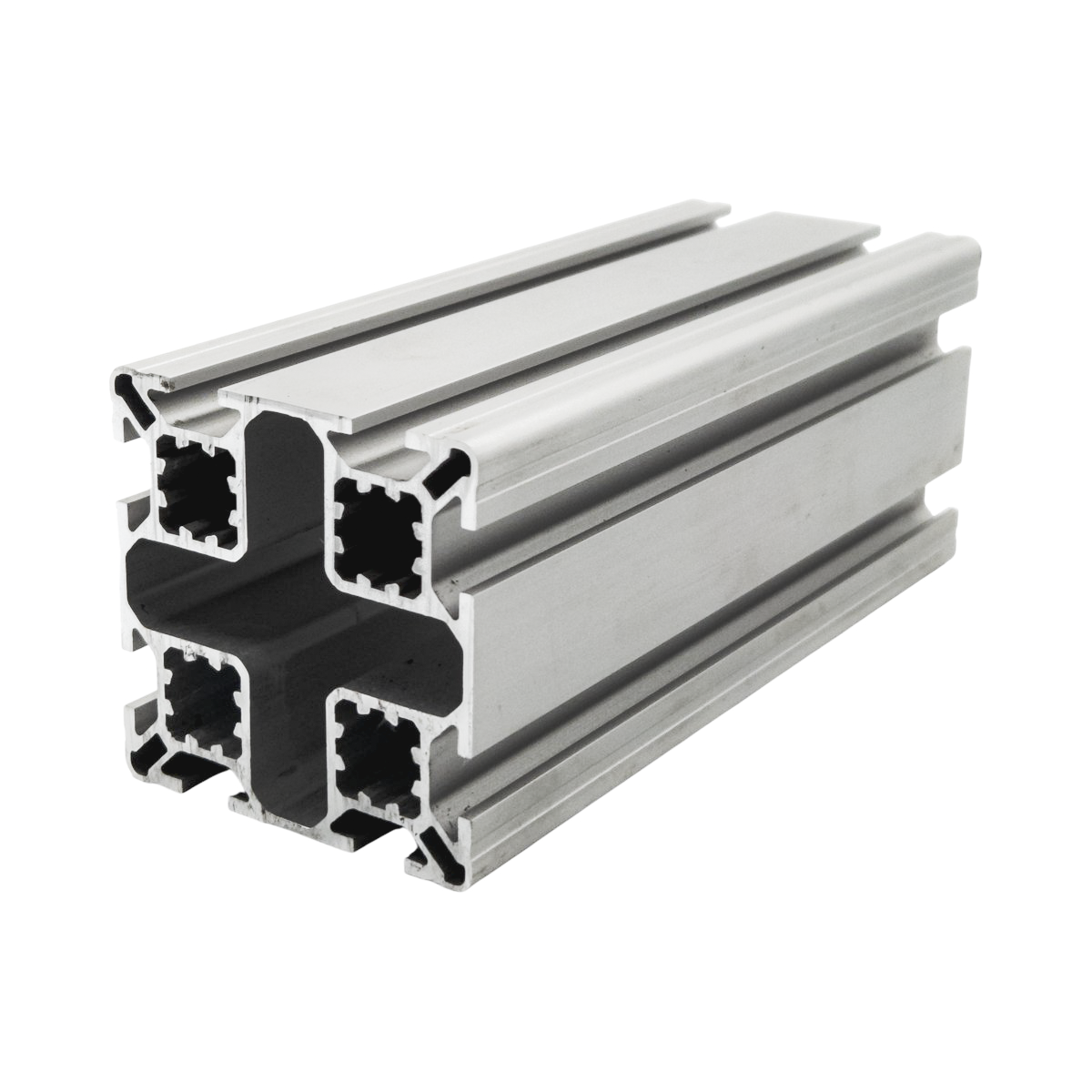

Profile 60x60
