PG50 Series
Profile 50×50, 4E, light

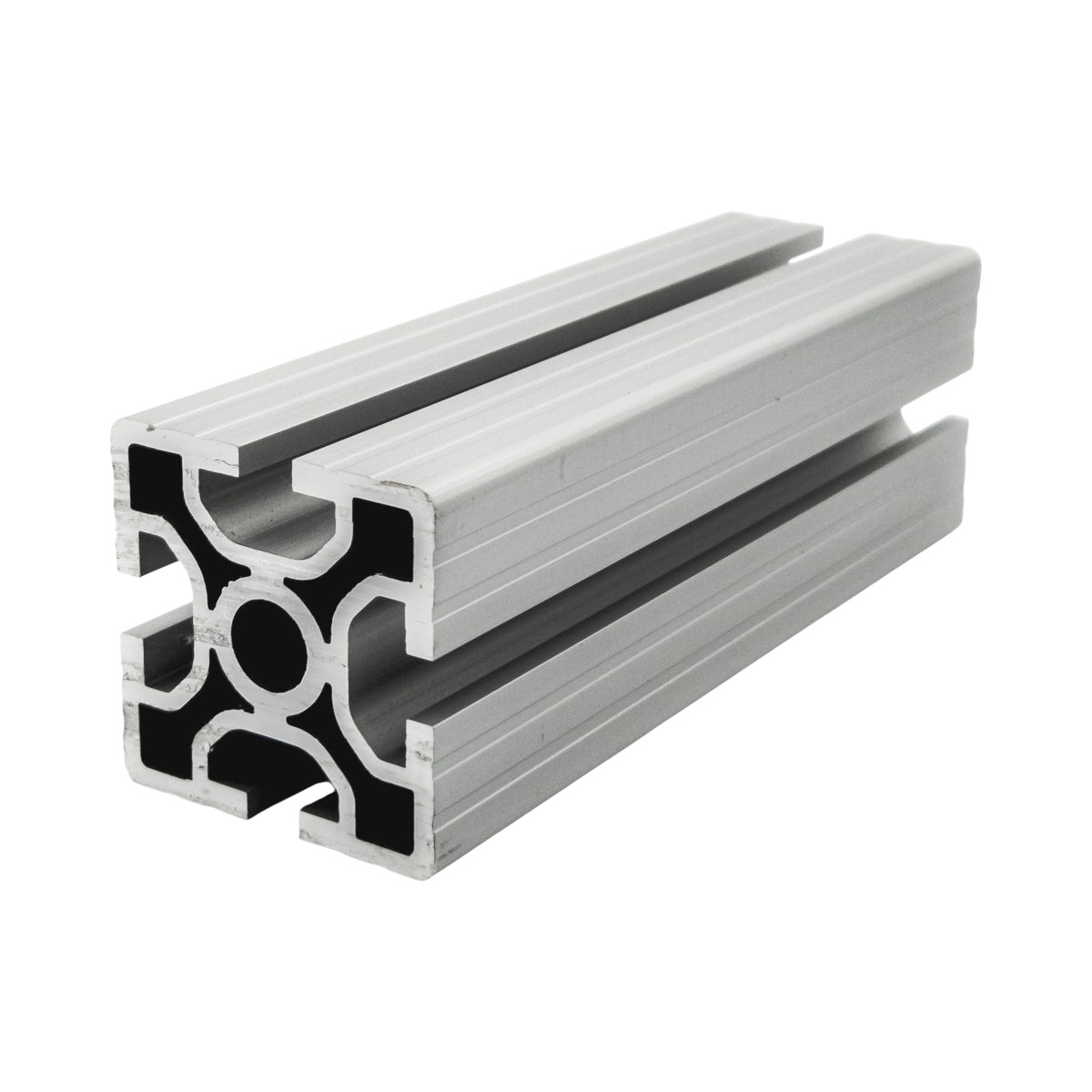

Profile optimized for more load bearing rigid applications. This profile is commonly used in machine guarding applications, machine framing and rapid prototyping for any custom application.
Machining Options Available

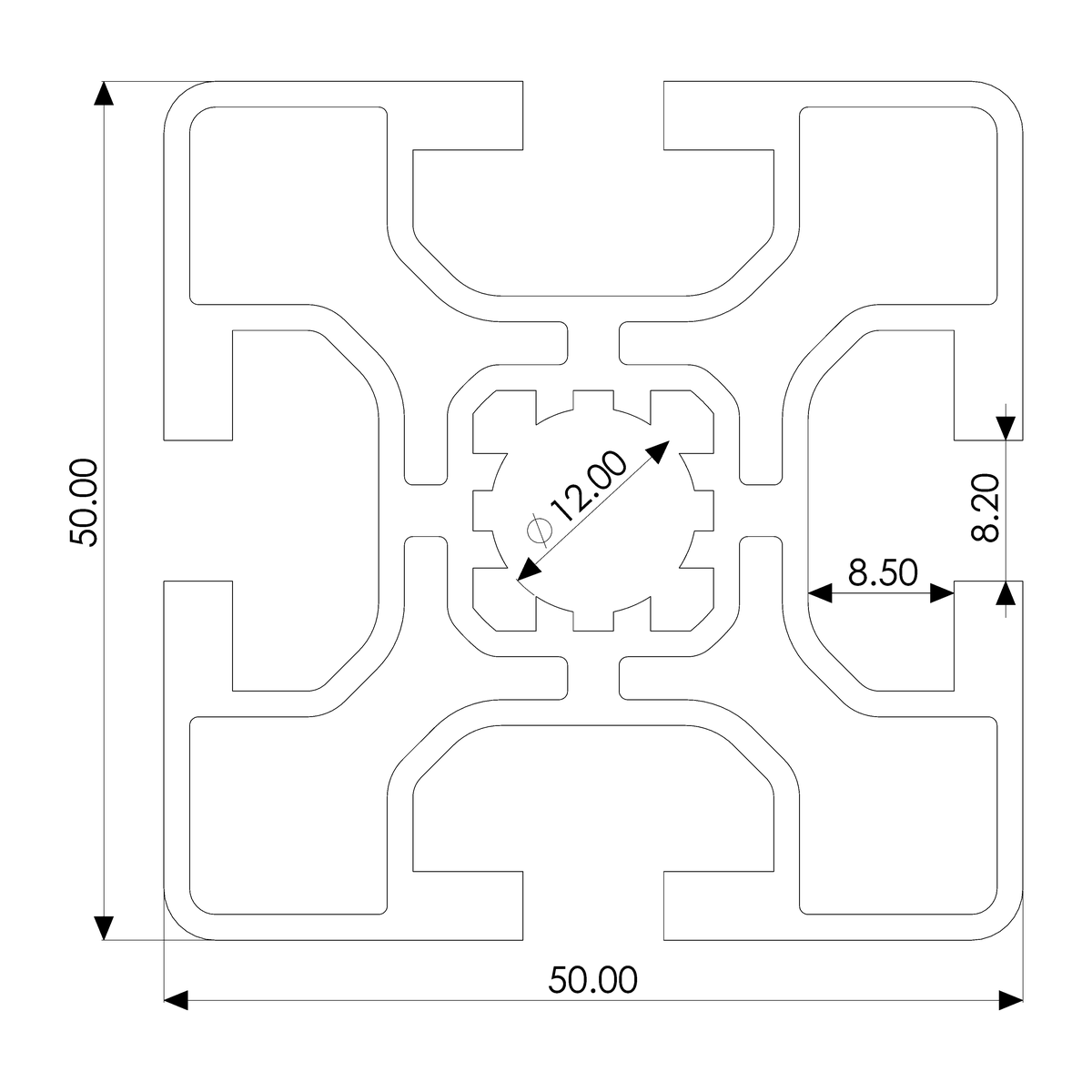

Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 19.2 | cm⁴ |
| Moment of Inertia | Iy | 19.2 | cm⁴ |
| Section Modulus | Wx | 7.7 | cm³ |
| Section Modulus | Wy | 7.7 | cm³ |
| Weight per Meter | G | 2.2 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
