PG50 Series

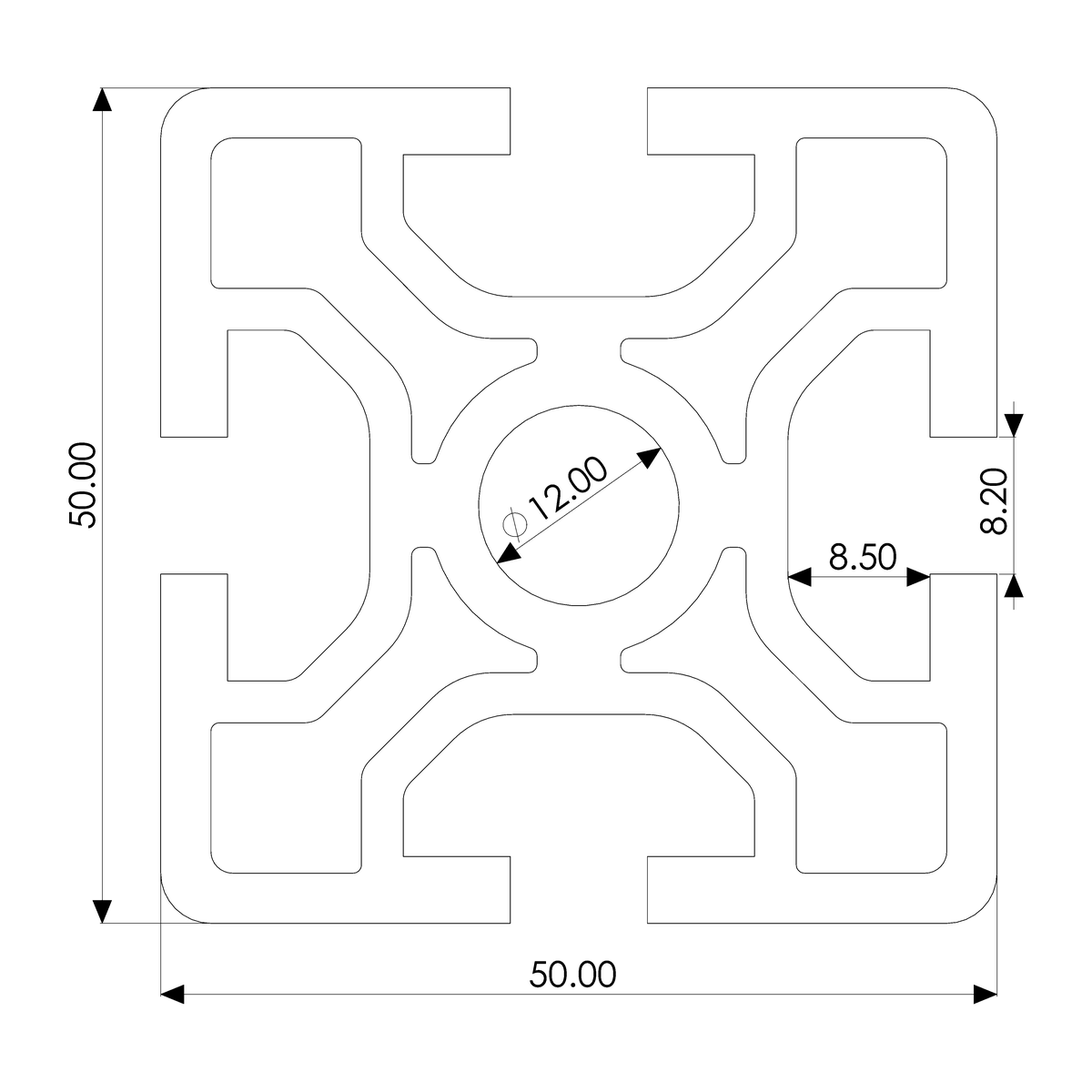

Profile 50×50, 4E, heavy
Profile optimized for extreme load bearing rigid applications. This profile is commonly used in industrial heavy machine framing while offering additional strength compared to the light profile version.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 27.3 | cm⁴ |
| Moment of Inertia | Iy | 27.3 | cm⁴ |
| Section Modulus | Wx | 11 | cm³ |
| Section Modulus | Wy | 11 | cm³ |
| Weight per Meter | G | 3.1 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
