PG50 Series

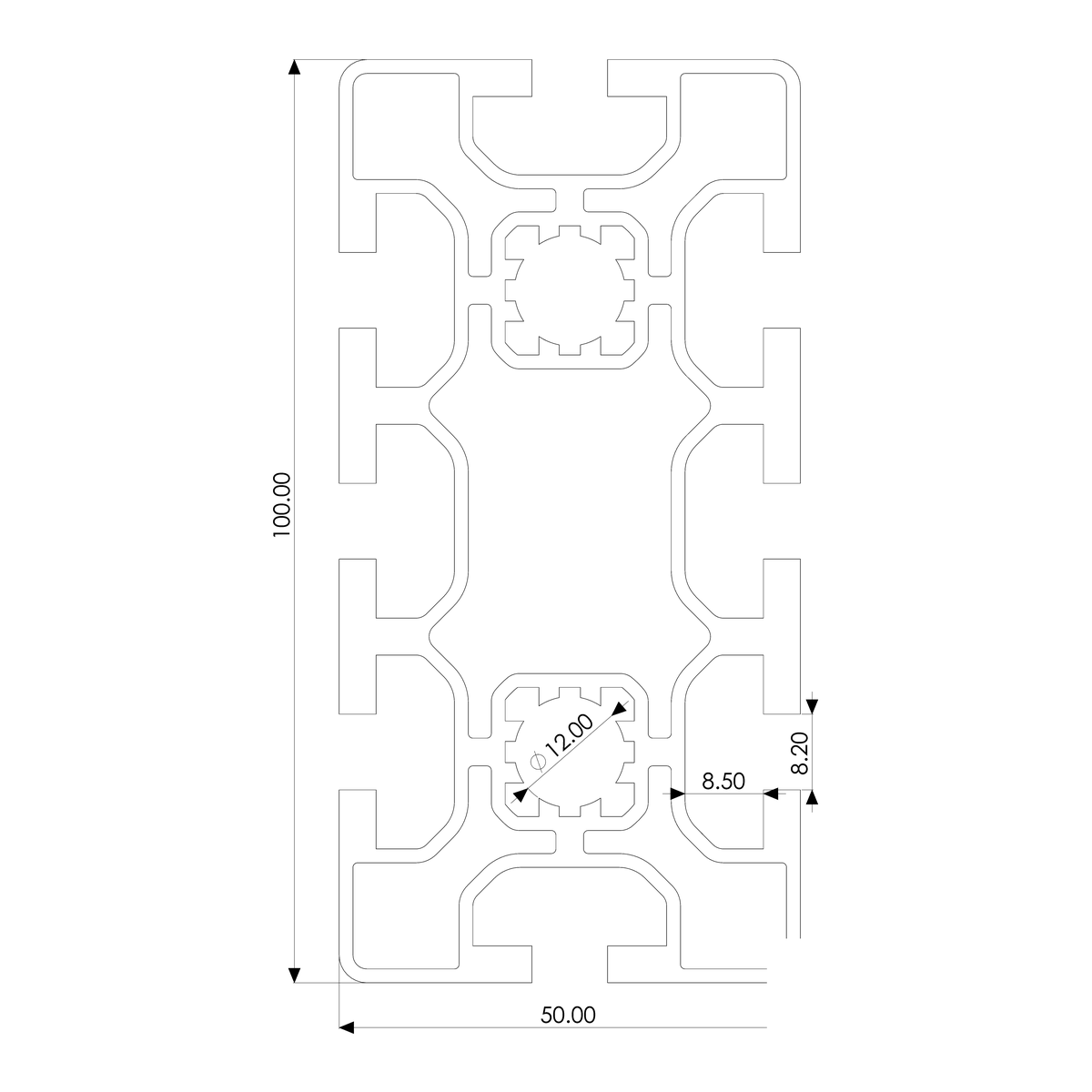

Profile 50×100, 8E, light
Extremely robust profile optimized for rigidity, strength, versatility. Used in machine guarding applications, machine framing.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 137 | cm⁴ |
| Moment of Inertia | Iy | 40 | cm⁴ |
| Section Modulus | Wx | 27.5 | cm³ |
| Section Modulus | Wy | 16 | cm³ |
| Weight per Meter | G | 4 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
103 accessories work with this profile across 18 categories
