PG45 Series

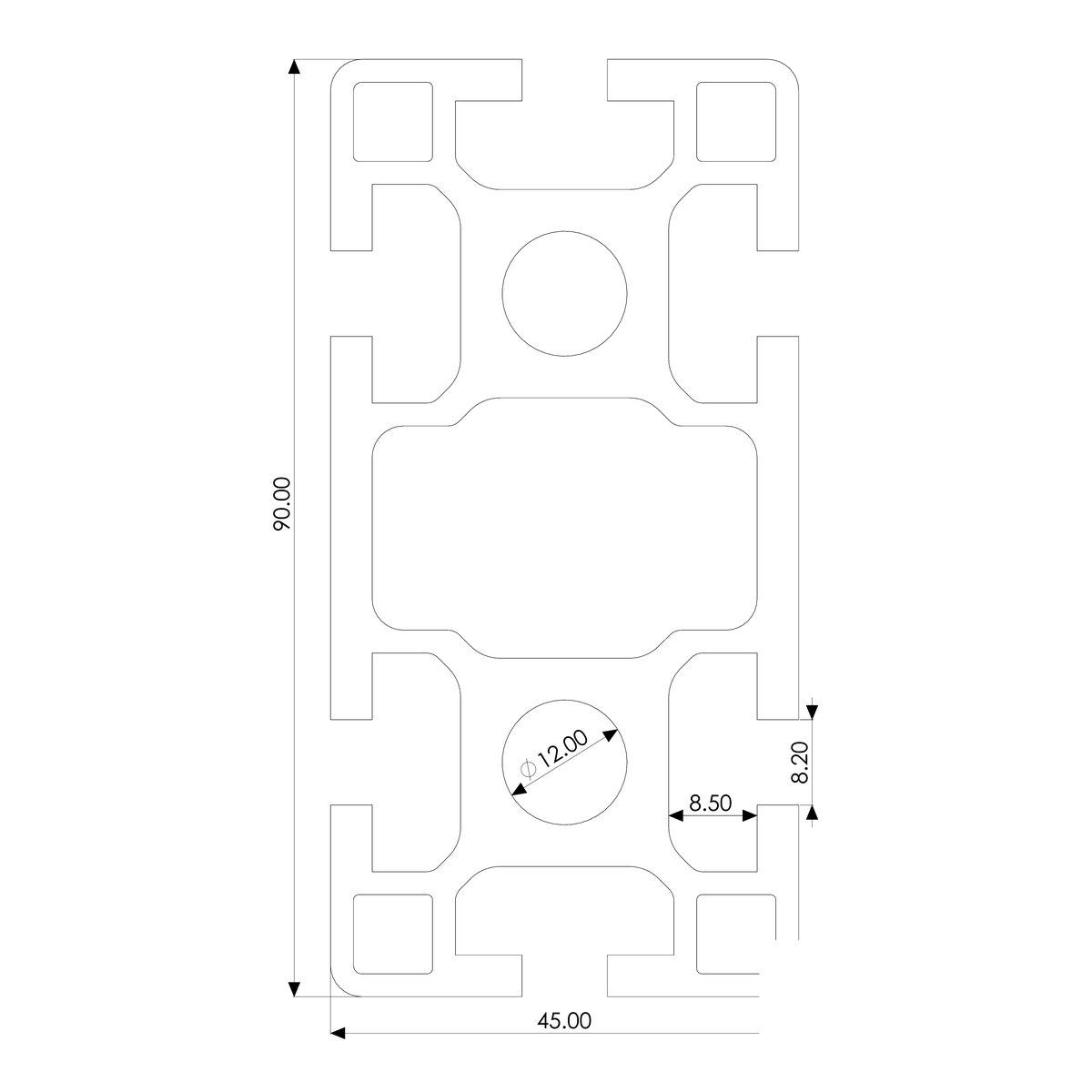

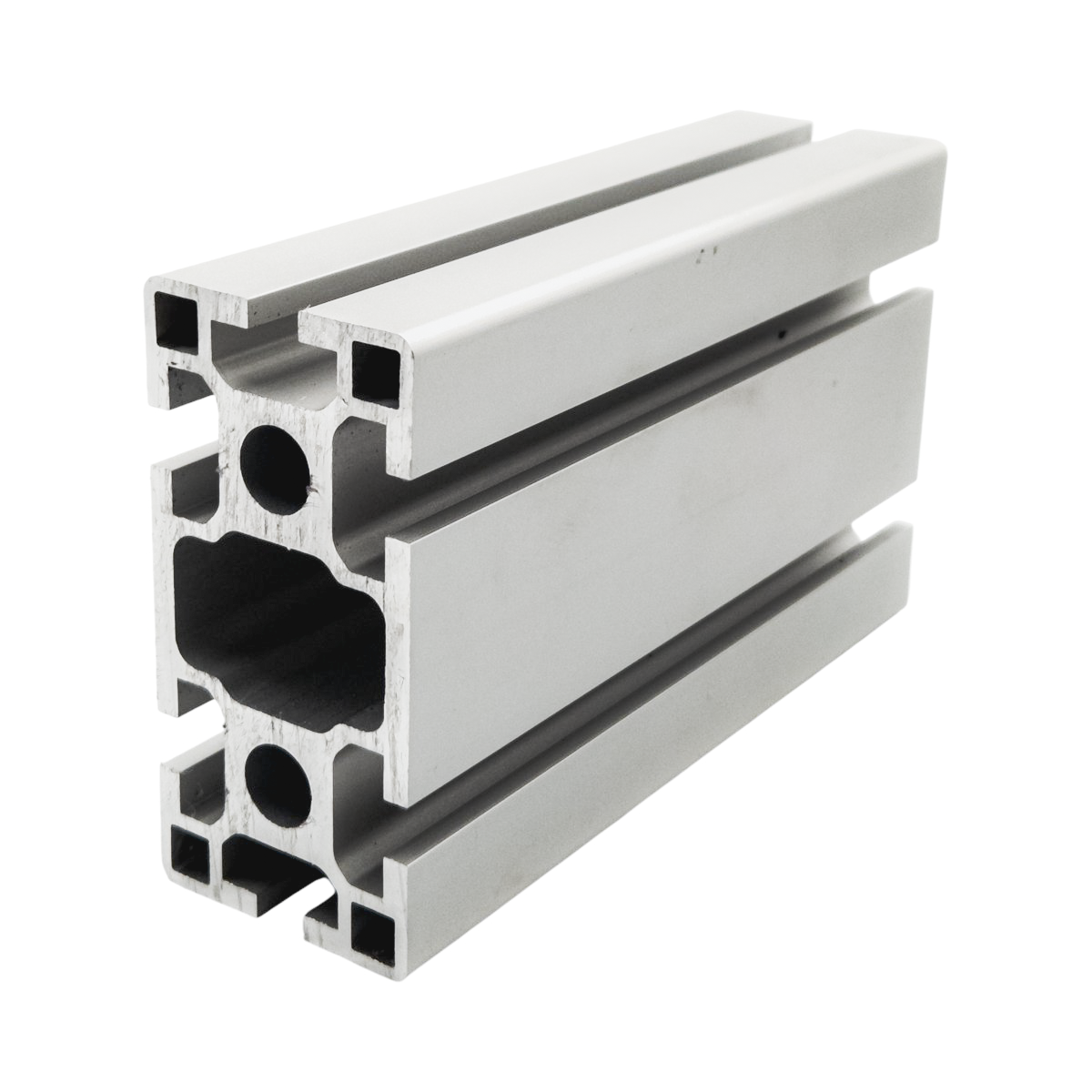

Profile 45×90, 6E, heavy, plain
Extremely robust profile optimized for rigidity, strength, versatility. Used in machine framing, machine framing and weight bearing applications.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 126 | cm⁴ |
| Moment of Inertia | Iy | 34 | cm⁴ |
| Section Modulus | Wx | 28 | cm³ |
| Section Modulus | Wy | 15 | cm³ |
| Weight per Meter | G | 4.4 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
