PG45 Series

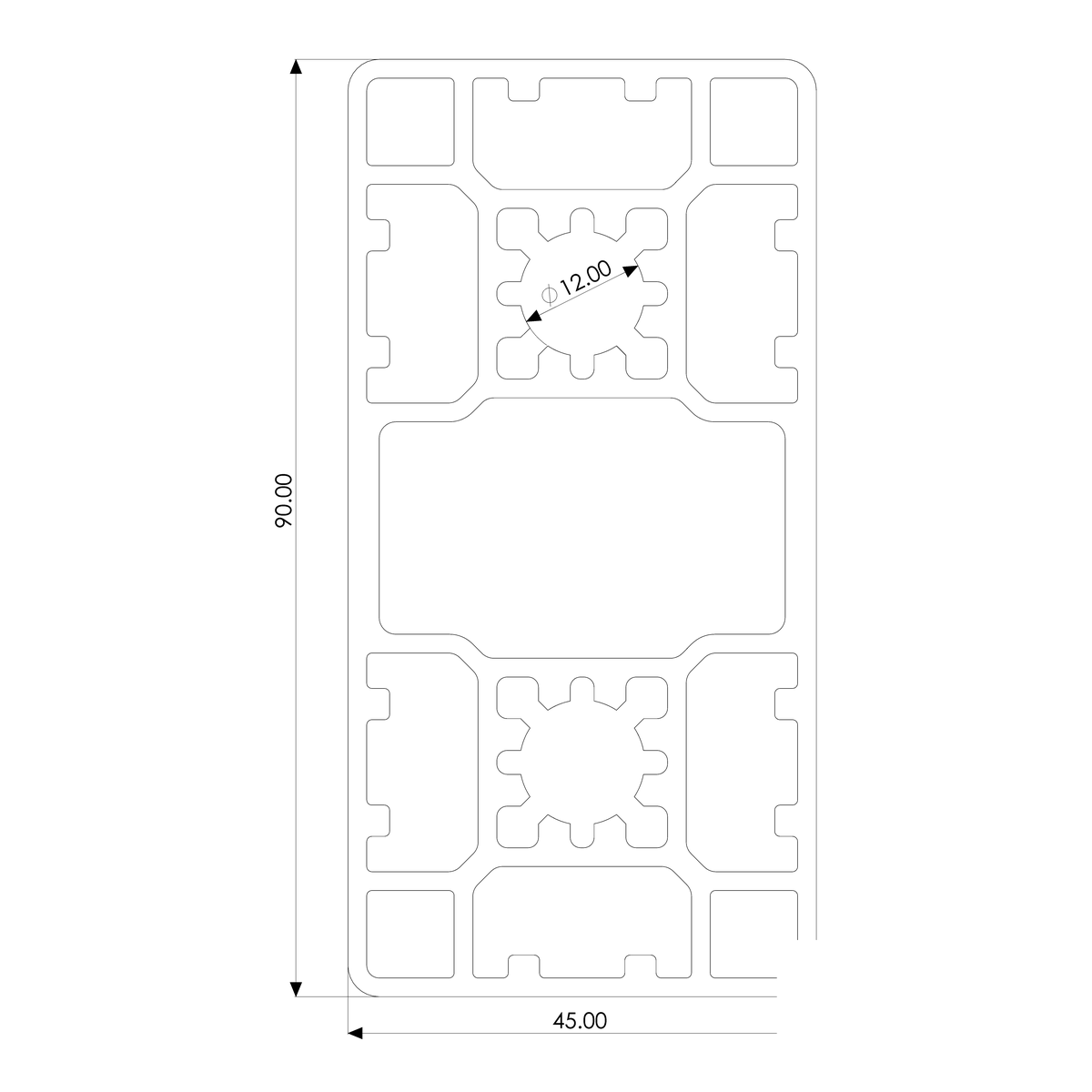

Profile 45×90, 0E, light, plain
Used in robust applications where strength and debris shielding is important, cleanroom, machine guarding and rigid professional frames.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 107.5 | cm⁴ |
| Moment of Inertia | Iy | 30.4 | cm⁴ |
| Section Modulus | Wx | 23.9 | cm³ |
| Section Modulus | Wy | 13.5 | cm³ |
| Weight per Meter | G | 3.6 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
