PG45 Series

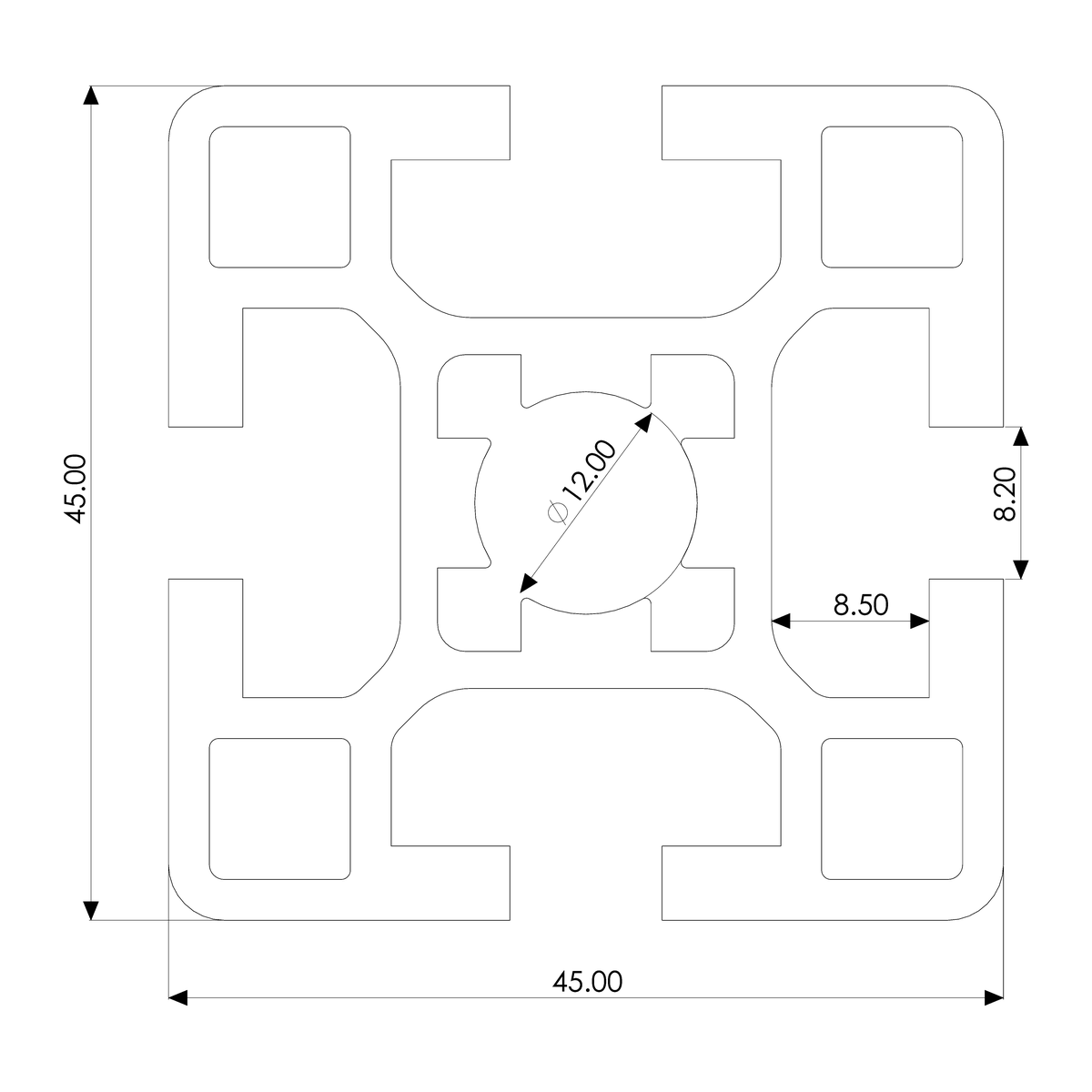

Profile 45×45, 4E, heavy, plain
Used in very robust applications where strength and functionality are critical, extremely versatile for a wide range of applications.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 15.5 | cm⁴ |
| Moment of Inertia | Iy | 15.5 | cm⁴ |
| Section Modulus | Wx | 6.9 | cm³ |
| Section Modulus | Wy | 6.9 | cm³ |
| Weight per Meter | G | 2.1 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
