PG45 Series

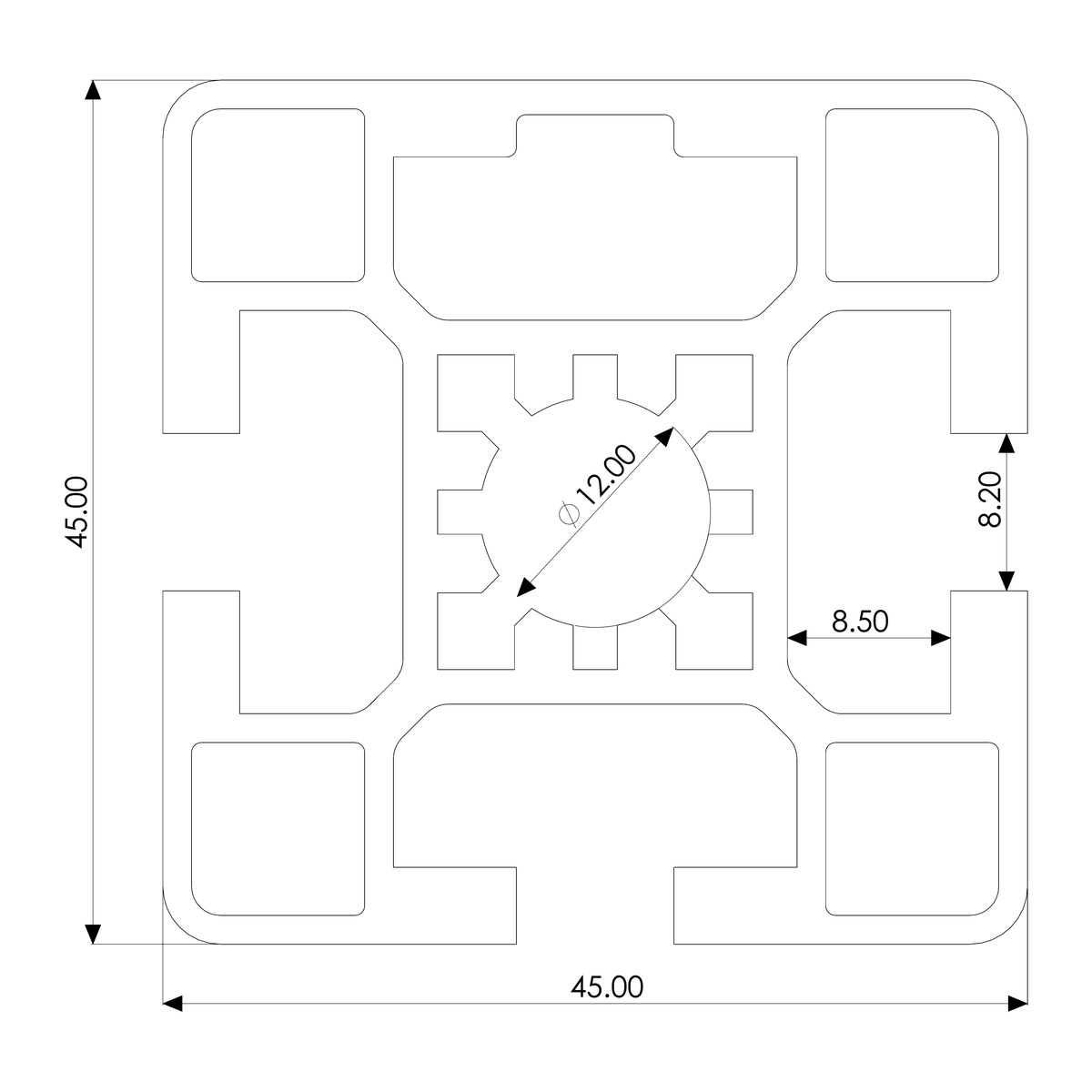

Profile 45×45, 3E, light, plain
Used in robust applications where aesthetics and a clean professional exterior is required, three open slots allow for versatile orientations and applications while keeping the exterior smooth.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 14 | cm⁴ |
| Moment of Inertia | Iy | 14.7 | cm⁴ |
| Section Modulus | Wx | 6.2 | cm³ |
| Section Modulus | Wy | 6.5 | cm³ |
| Weight per Meter | G | 2.1 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
