PG45 Series

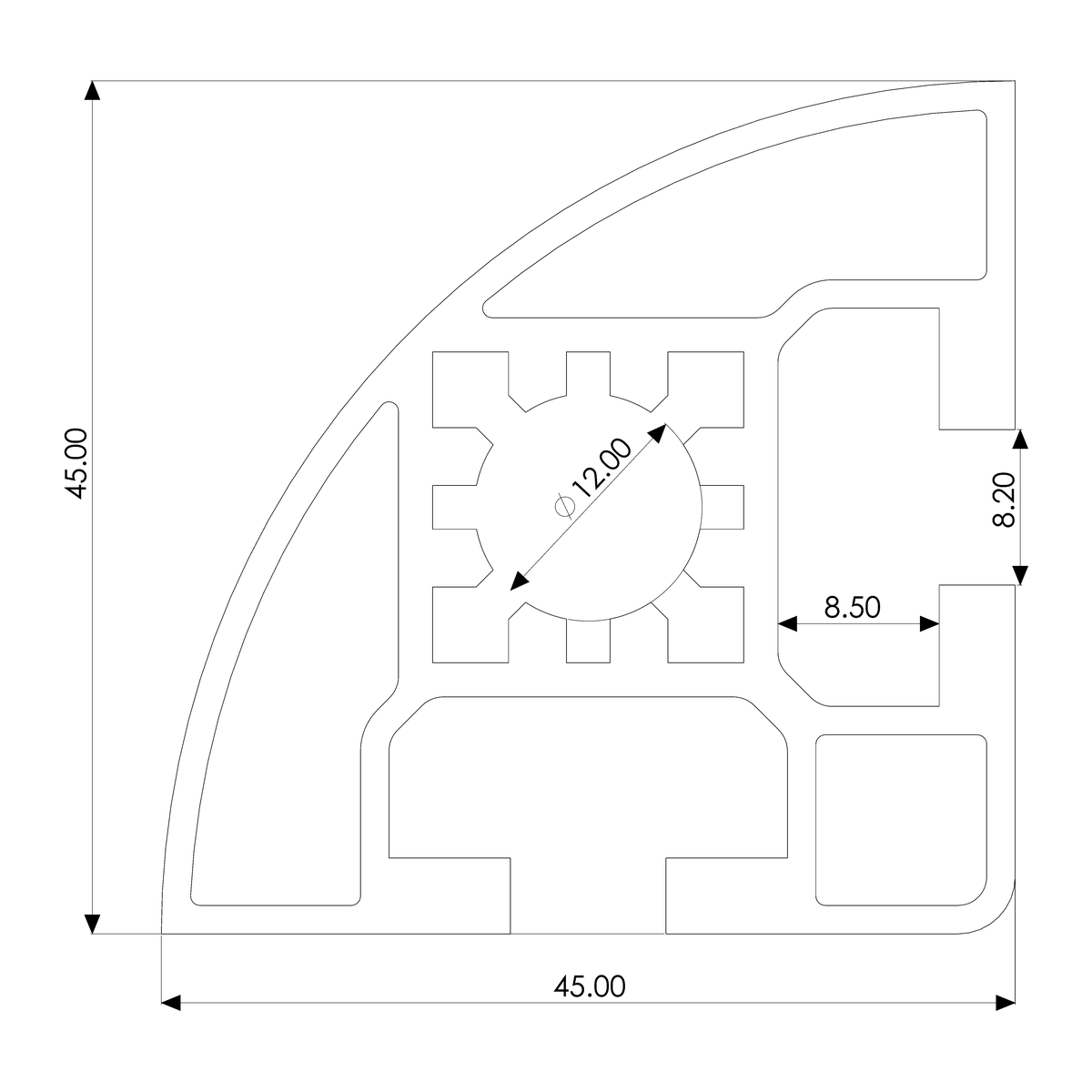

Profile 45×45, 2E, soft, light, plain
Used in robust applications where aesthetics and a clean professional exterior is required, the rounded exterior is excellent for vertical posts used in the corners of frames which offer increased rigidity and improved aesthetics.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 11.4 | cm⁴ |
| Moment of Inertia | Iy | 11.4 | cm⁴ |
| Section Modulus | Wx | 5.1 | cm³ |
| Section Modulus | Wy | 5.1 | cm³ |
| Weight per Meter | G | 1.6 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
101 accessories work with this profile across 18 categories
