PG45 Series

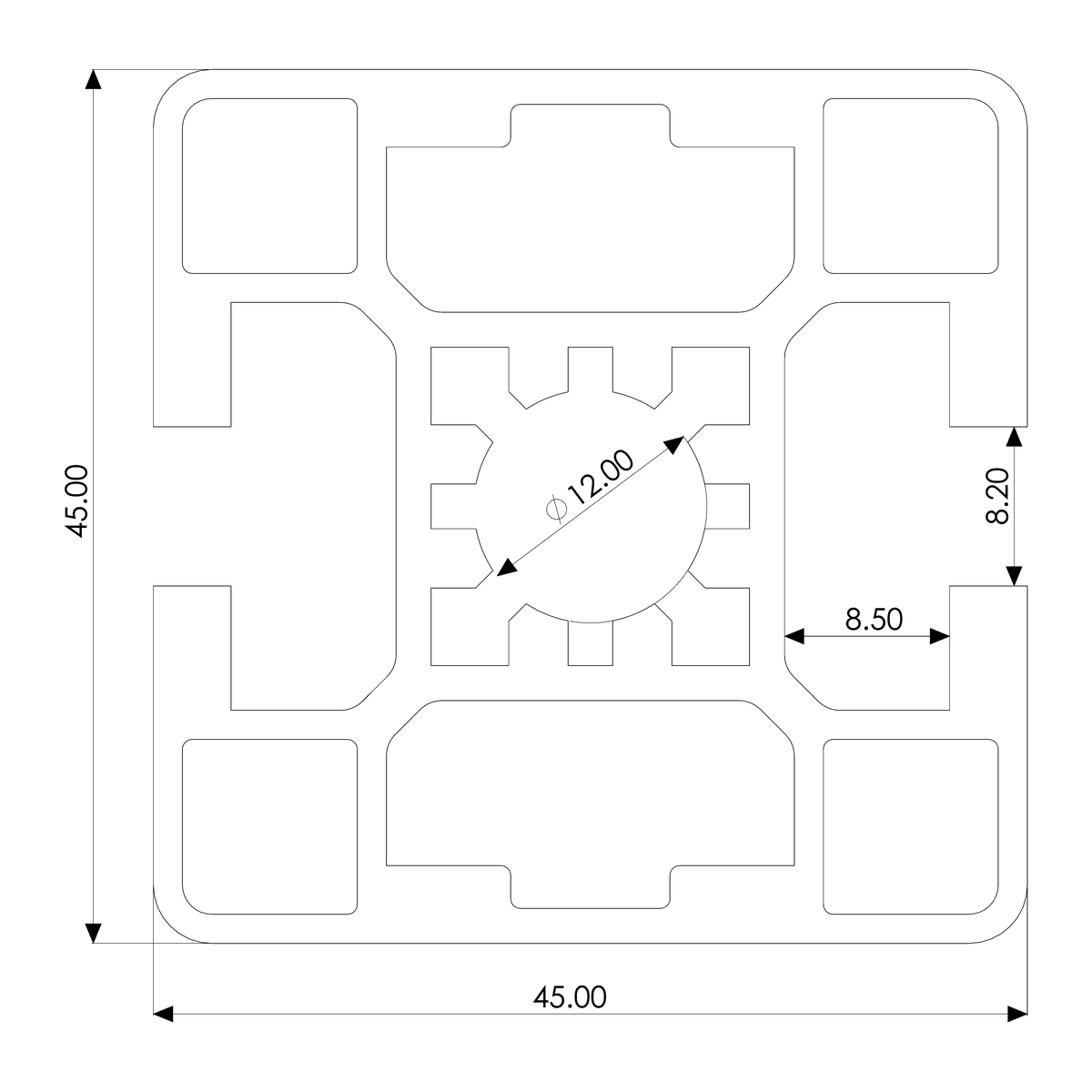

Profile 45×45, 2E, light, plain
Used in robust applications where aesthetics and a clean professional exterior is required, two opposing open slots often used as cross members in frames.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 14 | cm⁴ |
| Moment of Inertia | Iy | 15.5 | cm⁴ |
| Section Modulus | Wx | 6.2 | cm³ |
| Section Modulus | Wy | 6.9 | cm³ |
| Weight per Meter | G | 2 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
101 accessories work with this profile across 18 categories
