PG45 Series

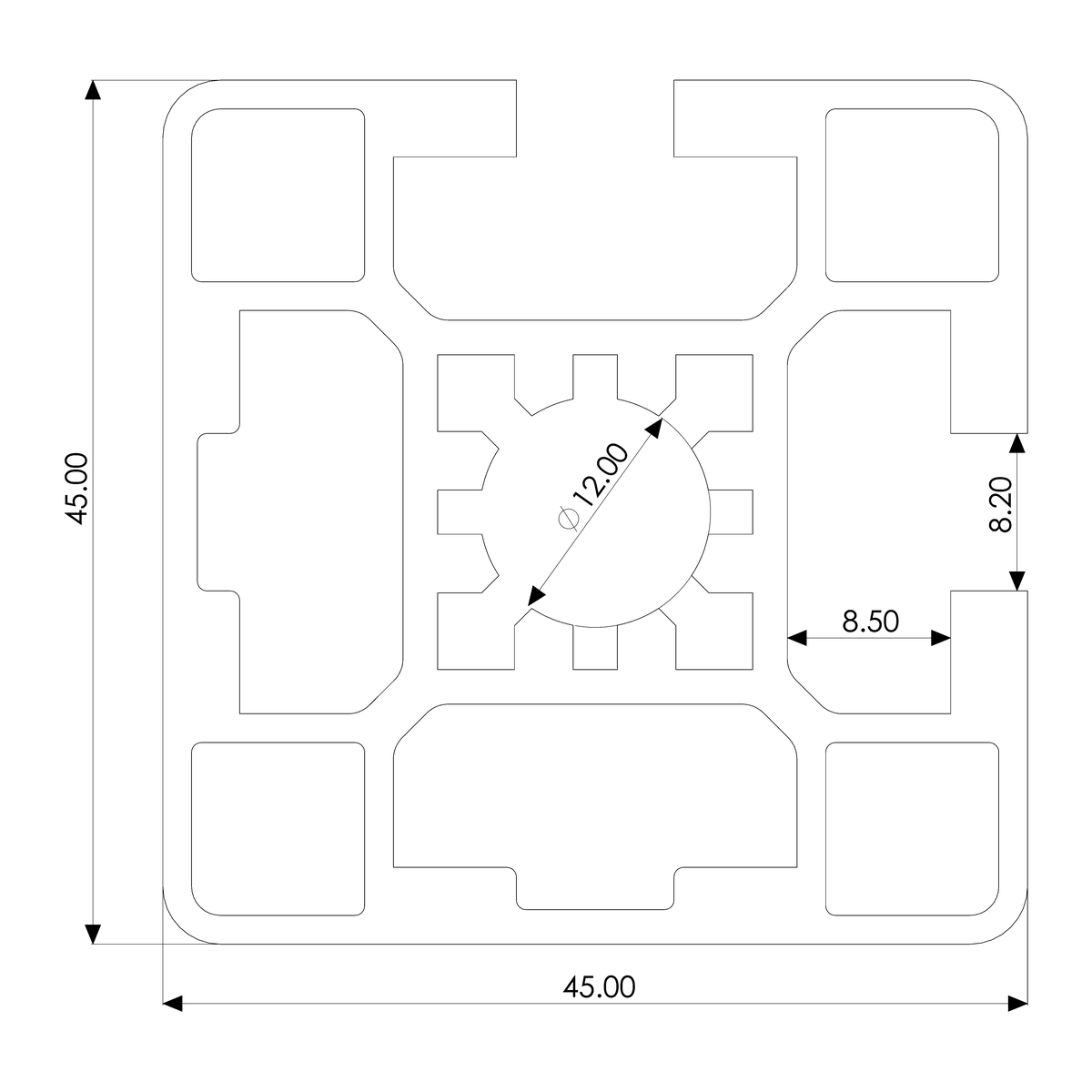

Profile 45×45, 2E, corner, light, plain
Used in robust applications where aesthetics and a clean professional exterior is required, two corner slots provides a clean exterior for the edges of a frame.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 14.7 | cm⁴ |
| Moment of Inertia | Iy | 14.7 | cm⁴ |
| Section Modulus | Wx | 6.6 | cm³ |
| Section Modulus | Wy | 6.6 | cm³ |
| Weight per Meter | G | 2 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
101 accessories work with this profile across 18 categories
Anchor, universal, incl. spring
Connector
Angle GD-Zn, 40 x 39, natural
angle bracket
T-Nut for subsequent insertion, w. spring E, M8
t-nut
Threaded insert M14/M8, L30
threaded insert
Adust tilt-foot spindle steel, M14 x 66
foot
Mounting block screw type M6, black
mounting block
Cross bushing PG 45
Bushing

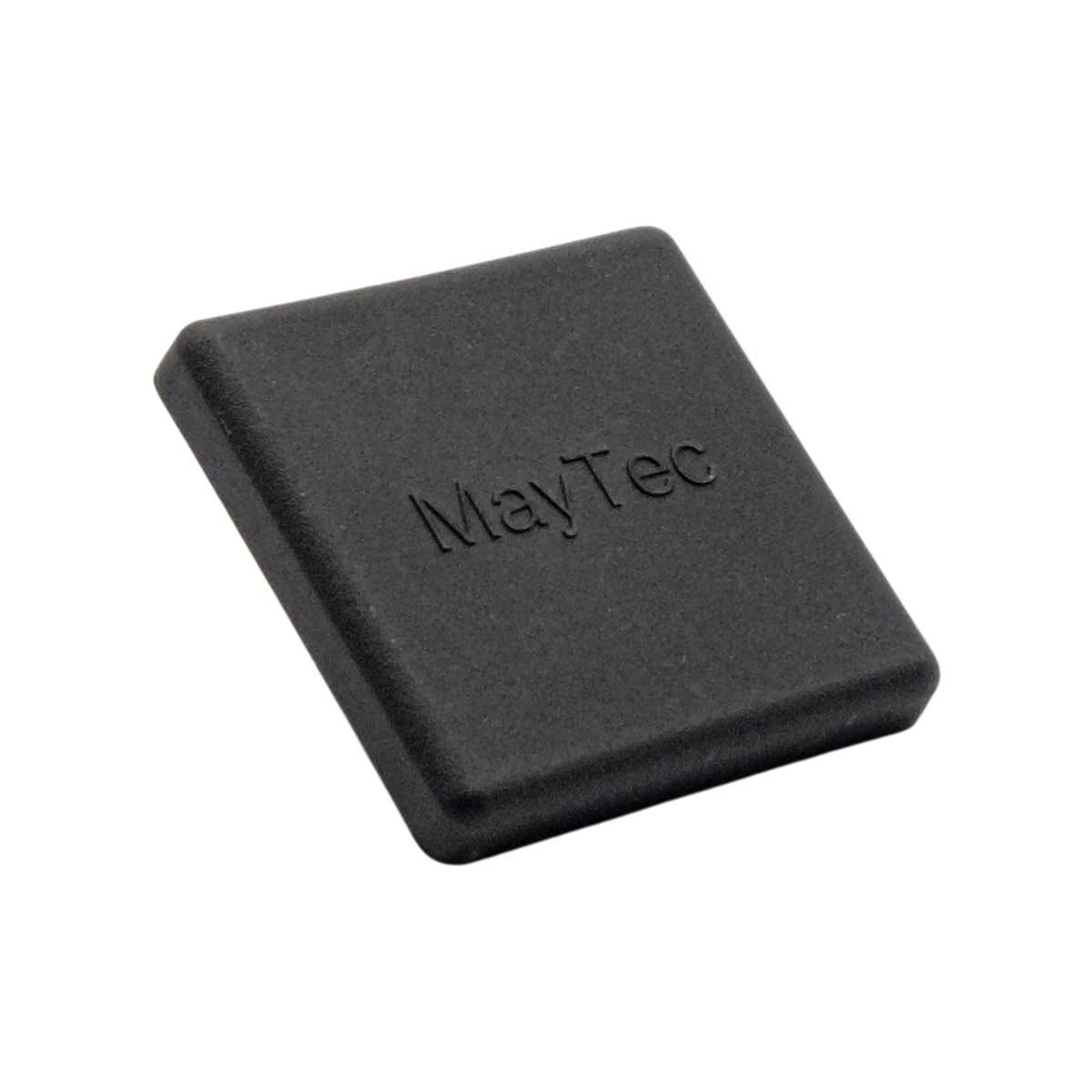

Cover cap, 45x45, Ø12, black
