PG40 Series

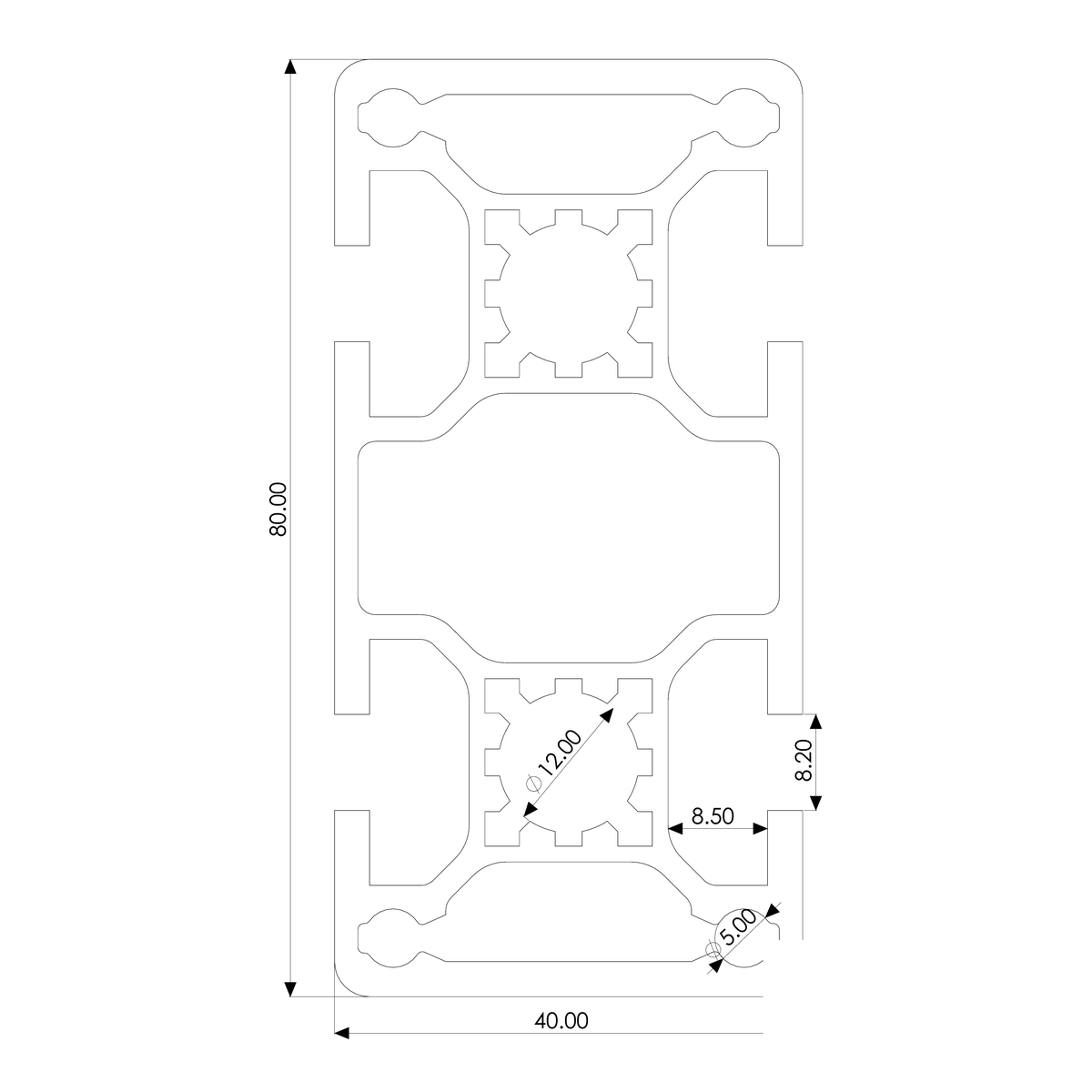

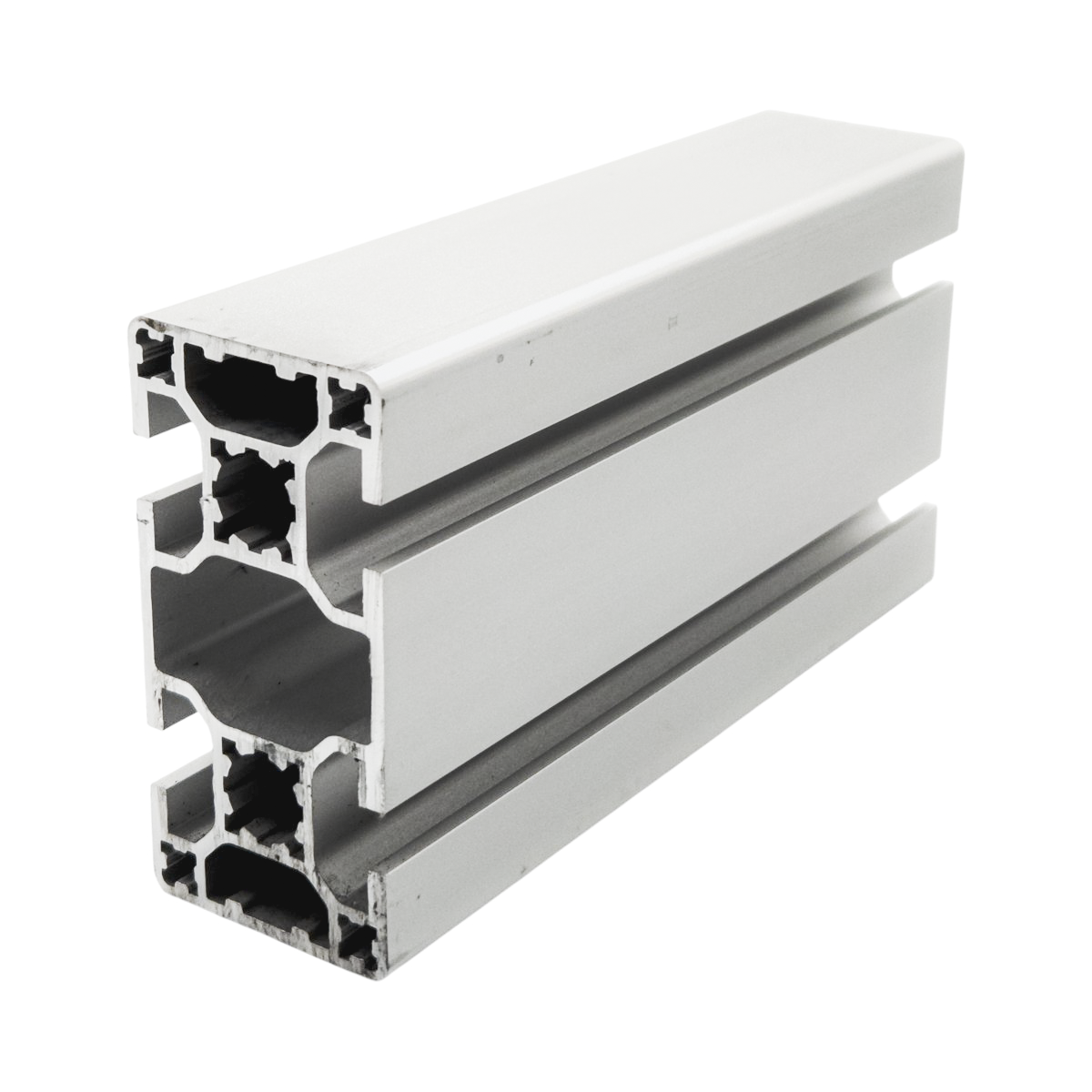

Profile 40×80, 4E, light, B, plain
Used in robust applications where aesthetics and a clean professional exterior is required, two 40mm face smooth exterior provides a clean exterior for the edges of a frame while remaining flexible for expansion in framing.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 74.5 | cm⁴ |
| Moment of Inertia | Iy | 18.3 | cm⁴ |
| Section Modulus | Wx | 18.6 | cm³ |
| Section Modulus | Wy | 9.2 | cm³ |
| Weight per Meter | G | 2.8 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
