PG40 Series

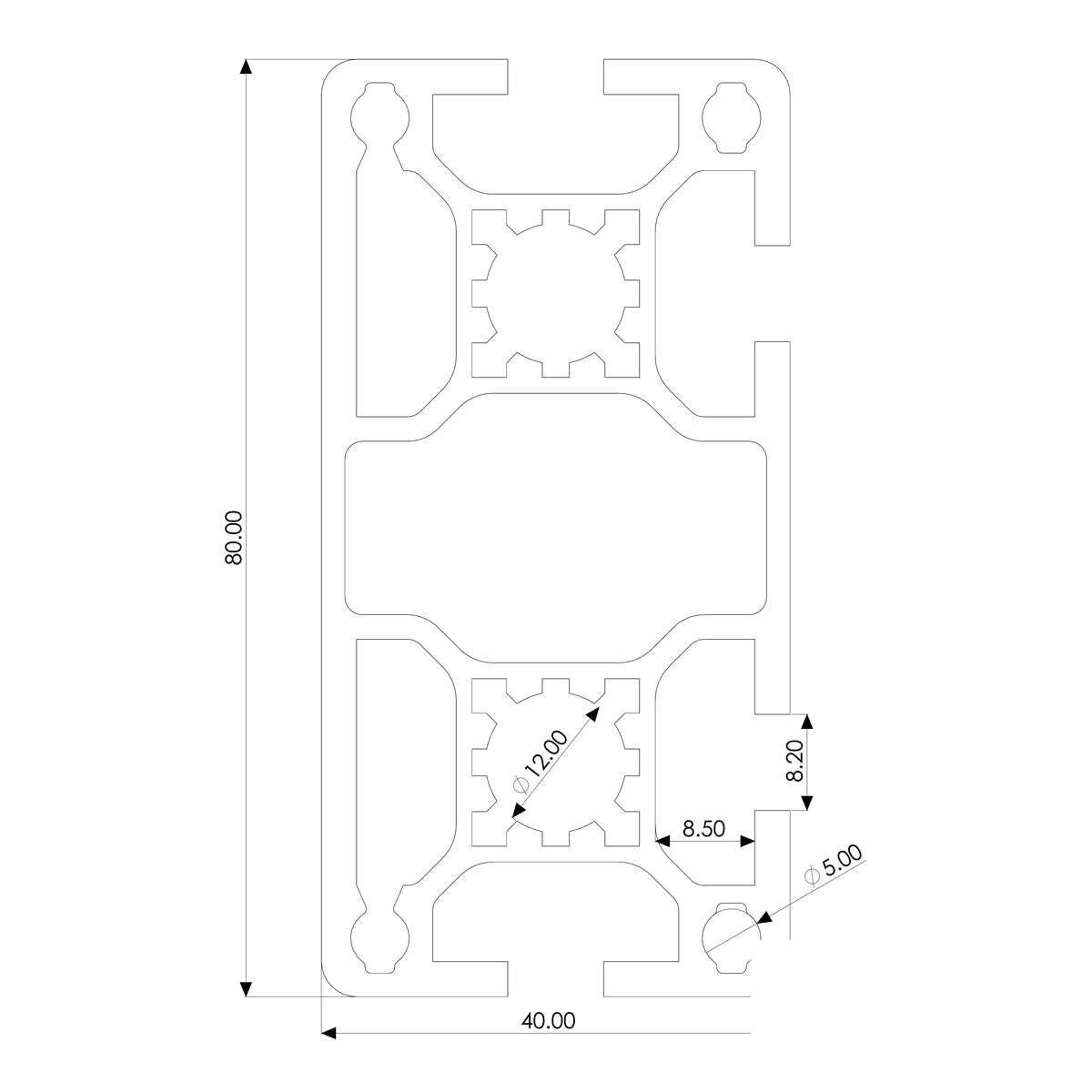

Profile 40×80, 4E, light
Used in robust applications where aesthetics and a clean professional exterior is required, one face smooth exterior provides a clean exterior for the edges of a frame while remaining flexible for expansion in framing.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 63.2 | cm⁴ |
| Moment of Inertia | Iy | 17.8 | cm⁴ |
| Section Modulus | Wx | 15.7 | cm³ |
| Section Modulus | Wy | 8.9 | cm³ |
| Weight per Meter | G | 2.6 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
110 accessories work with this profile across 20 categories
Anchor, universal, incl. spring
Connector
Cross bushing PG 40
Bushing
Angle GD-Zn, 40 x 39, natural
angle bracket
T-Nut for subsequent insertion, w. spring E, M8
t-nut
Threaded insert M14/M8, L30
threaded insert
Adust tilt-foot spindle steel, M14 x 66
foot
Hinge 48 fixed, A 22.5
hinge
Mounting block screw type M6, black
mounting block
Cover cap, 40x80, Ø12, black
end caps
Connection plate 40x80
Connection Plate
Base plate 40x80, M14
Foot Plate
Handle PA, with bore Ø8.5 L151
handle
