PG40 Series

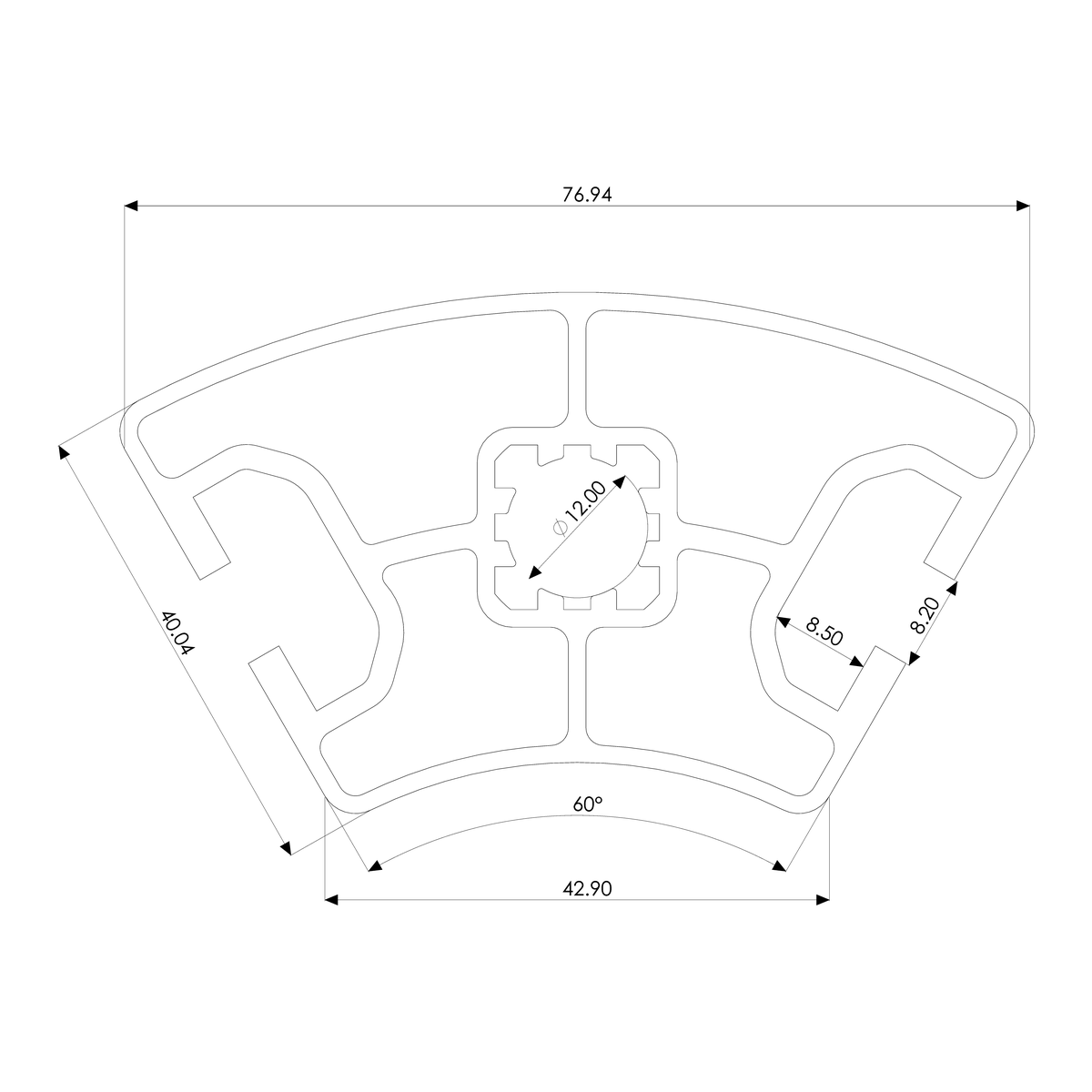

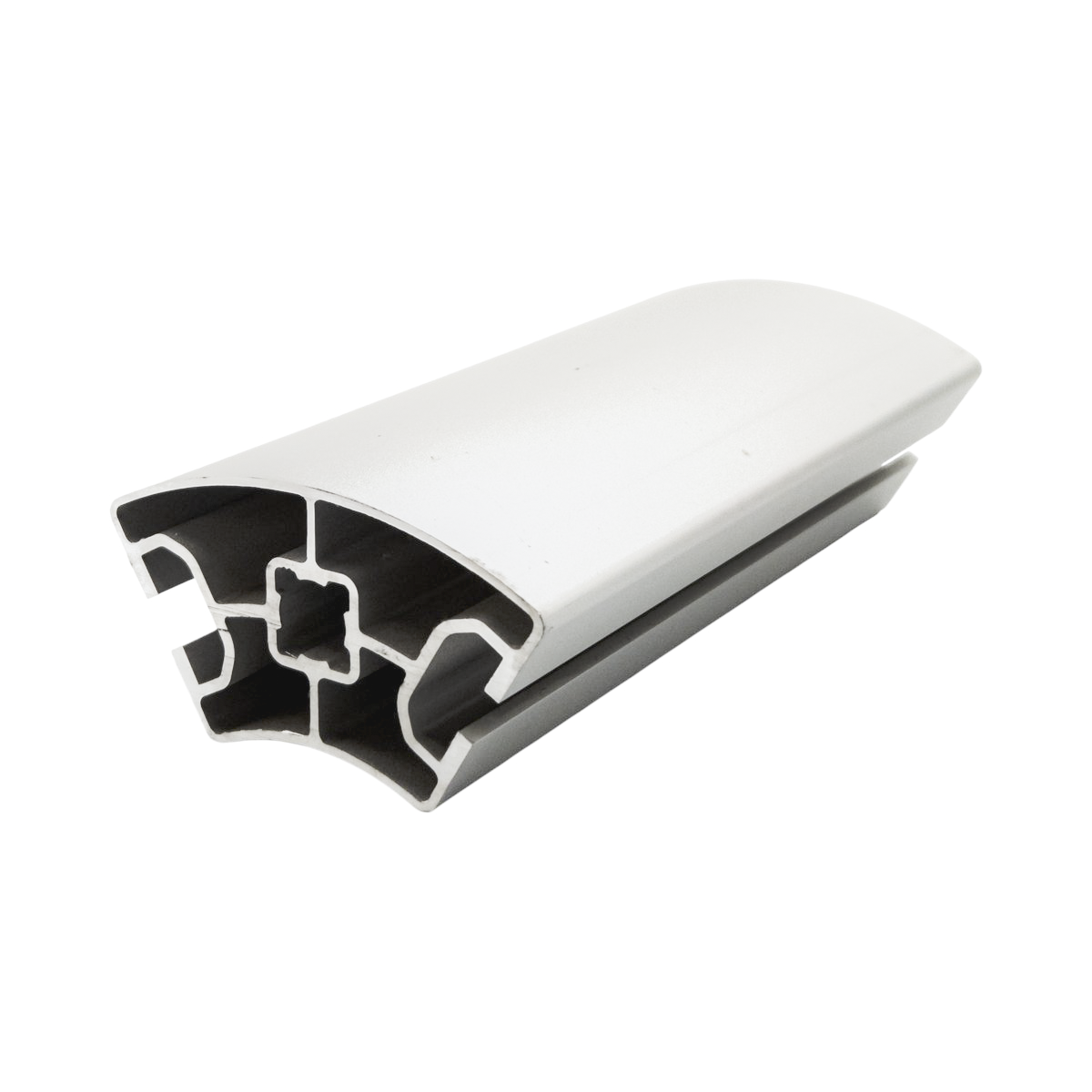

Profile 40×40, round 60 deg., 2E, light
Used in robust applications where aesthetics and a clean professional exterior is required, used as vertical posts when 60 degree bends in machine frames and guardings are required.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 30 | cm⁴ |
| Moment of Inertia | Iy | 10.5 | cm⁴ |
| Section Modulus | Wx | 7.6 | cm³ |
| Section Modulus | Wy | 4.6 | cm³ |
| Weight per Meter | G | 1.9 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
110 accessories work with this profile across 20 categories
