PG40 Series

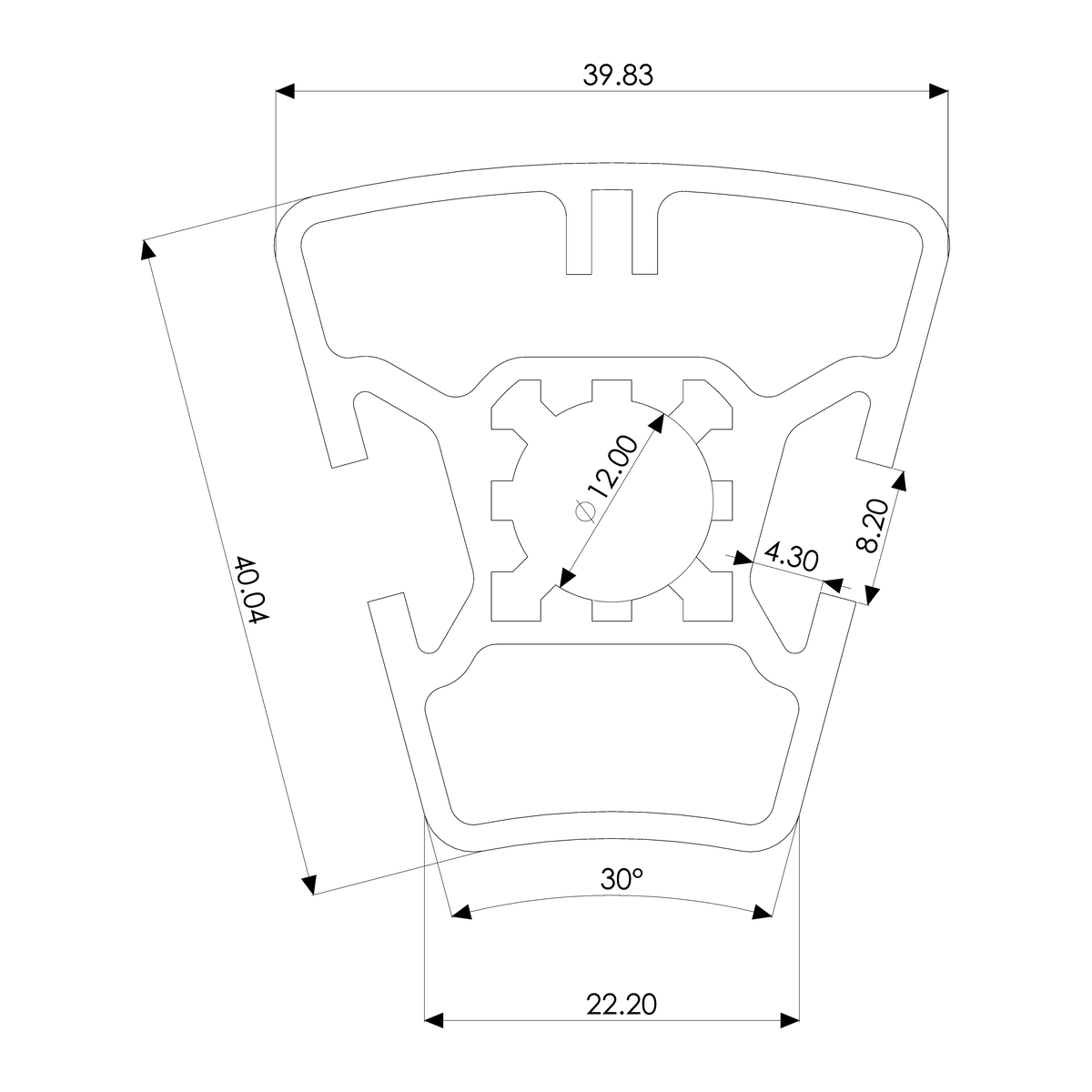

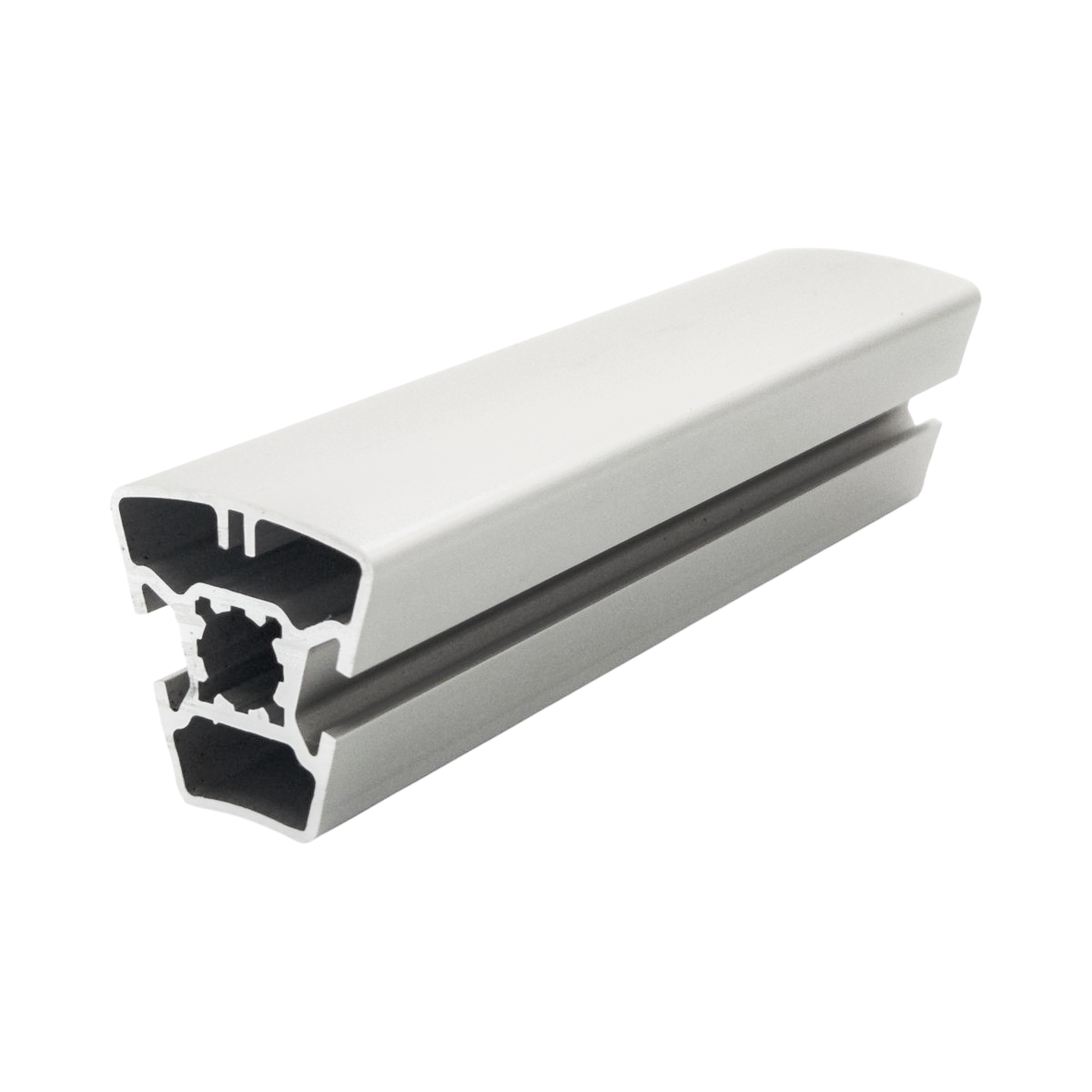

Profile 40×40, round 30 deg., 2F, light
Used in robust applications where aesthetics and a clean professional exterior is required, used as vertical posts when 30 degree bends in machine frames and guardings are required.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 6 | cm⁴ |
| Moment of Inertia | Iy | 4.8 | cm⁴ |
| Section Modulus | Wx | 3 | cm³ |
| Section Modulus | Wy | 2.4 | cm³ |
| Weight per Meter | G | 1.2 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
