PG40 Series

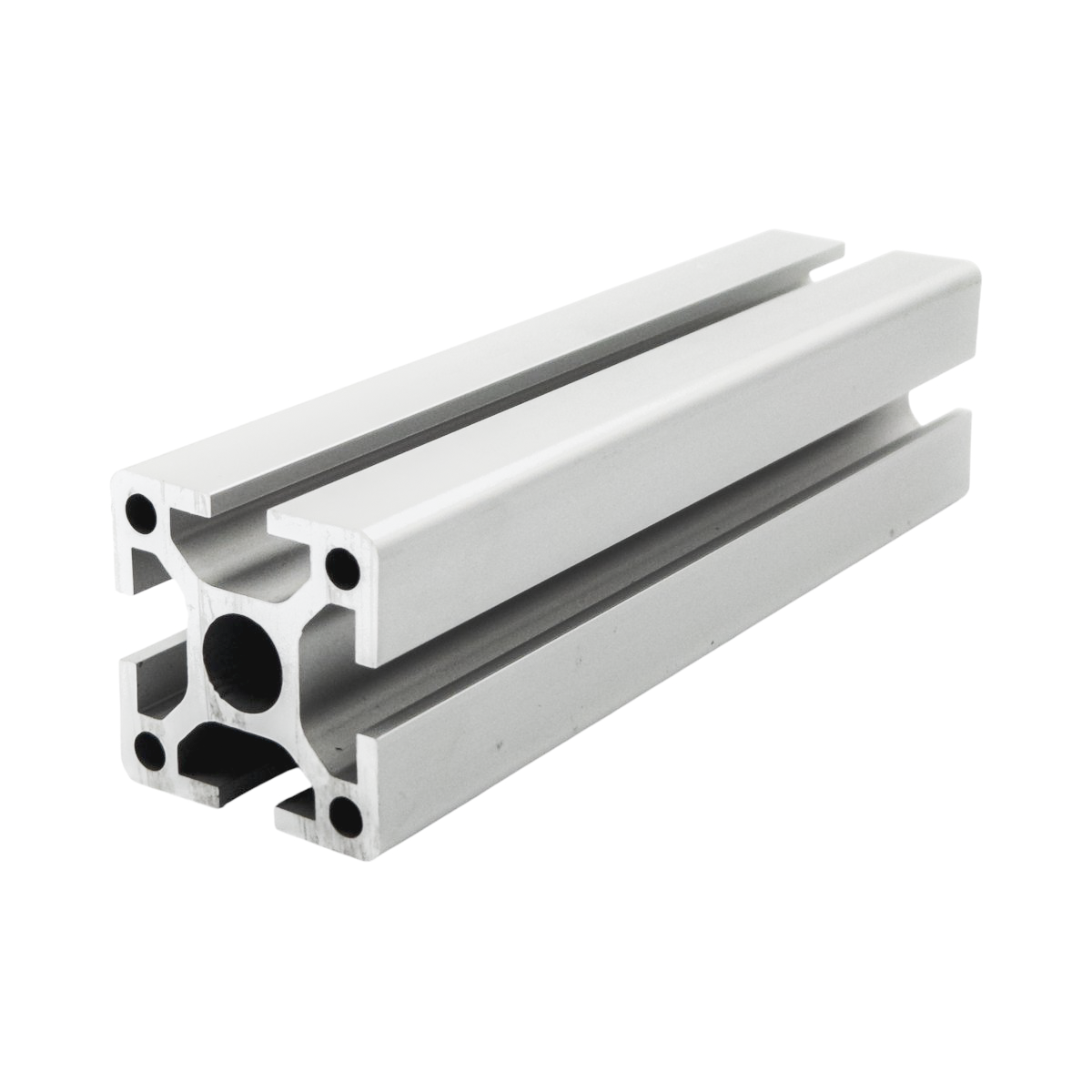

Profile 40×40, 4E, light, plain
Most common profile striking the balance between rigidity, strength, versatility, weight efficiency and cost effectiveness. This profile is extremely commonly used in machine guarding applications, machine framing and rapid prototyping for any custom application.
Visual Machining Configurator

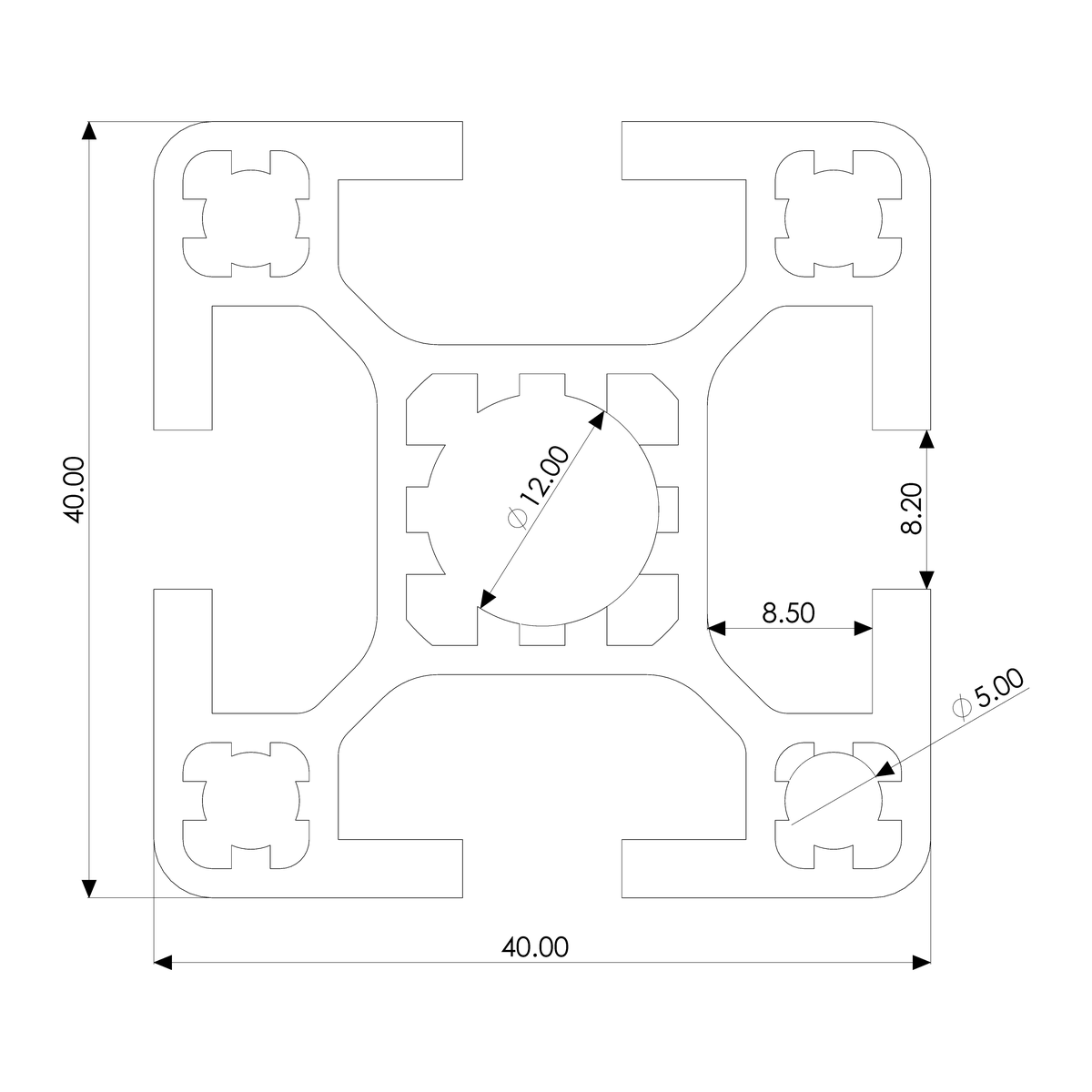

40x40 4EProfile Cross-Section · Click a side
Start End
Finish End
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 9.6 | cm⁴ |
| Moment of Inertia | Iy | 9.6 | cm⁴ |
| Section Modulus | Wx | 4.7 | cm³ |
| Section Modulus | Wy | 4.7 | cm³ |
| Weight per Meter | G | 1.5 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
