PG40 Series
Profile 40×40 4E, heavy, plain
Used in very robust applications where functionality is critical while remaining cost effective and is extremely versatile for a wide range of applications.
Visual Machining Configurator

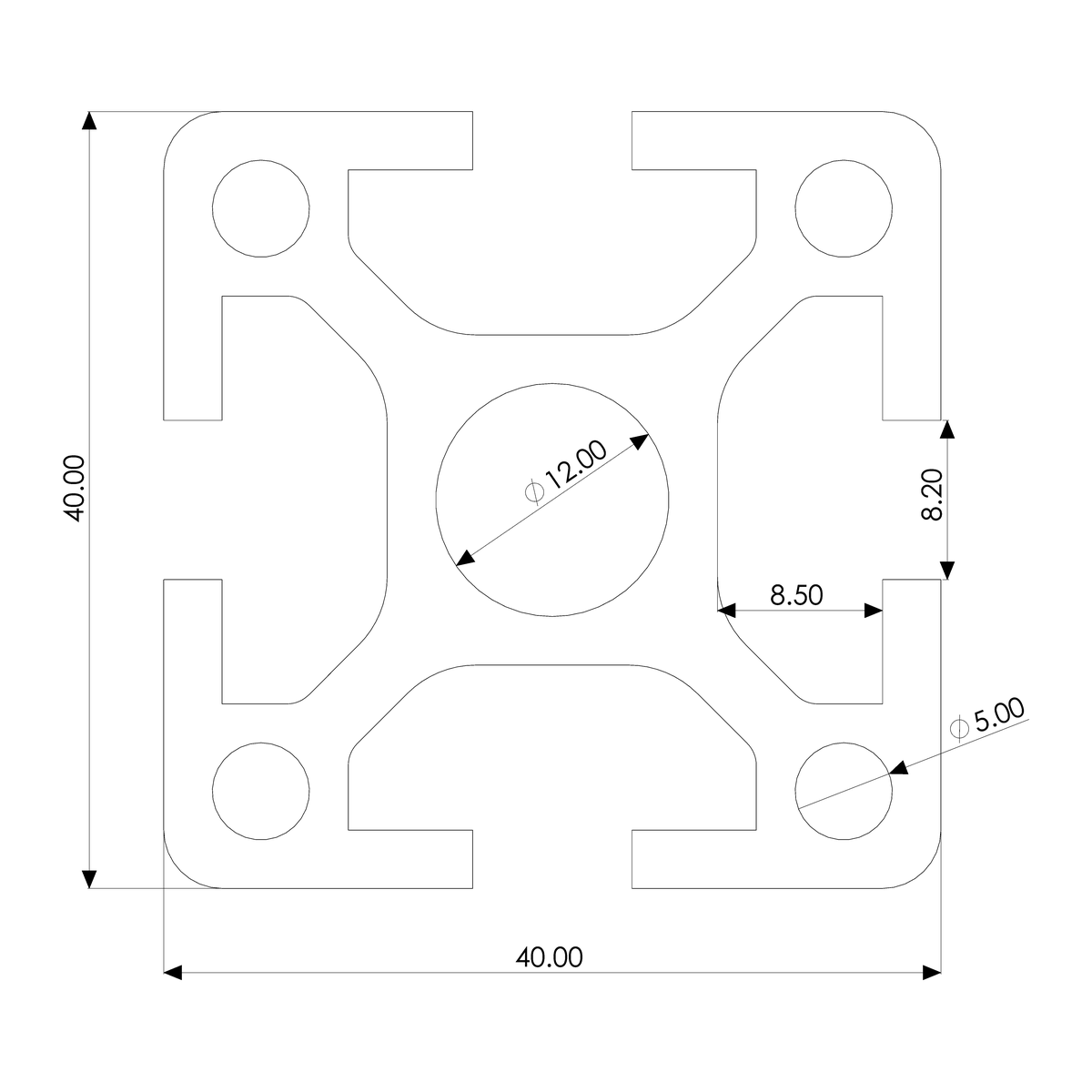

40x40 4EProfile Cross-Section · Click a side
Start End
Finish End
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 12 | cm⁴ |
| Moment of Inertia | Iy | 12 | cm⁴ |
| Section Modulus | Wx | 6 | cm³ |
| Section Modulus | Wy | 6 | cm³ |
| Weight per Meter | G | 2 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
110 accessories work with this profile across 20 categories
