PG40 Series
Profile 40×40, 2E, light, plain
Used in robust applications where aesthetics and a clean professional exterior is required, two opposing open slots often used as cross members in frames.
Visual Machining Configurator

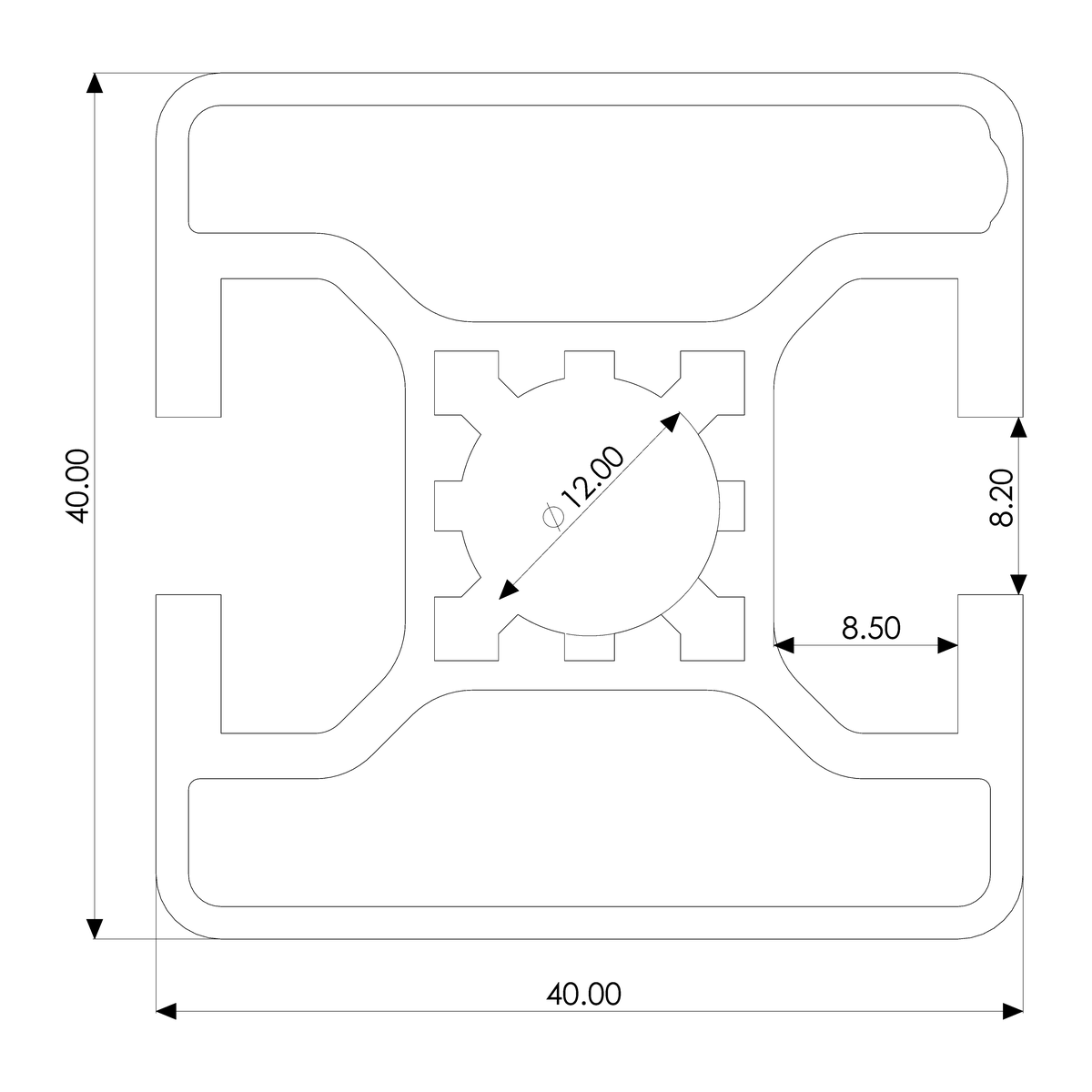

40x40 2E AcrossProfile Cross-Section · Click a side
Start End
Finish End
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 8.2 | cm⁴ |
| Moment of Inertia | Iy | 7.5 | cm⁴ |
| Section Modulus | Wx | 4.1 | cm³ |
| Section Modulus | Wy | 3.8 | cm³ |
| Weight per Meter | G | 1.3 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
