PG40 Series

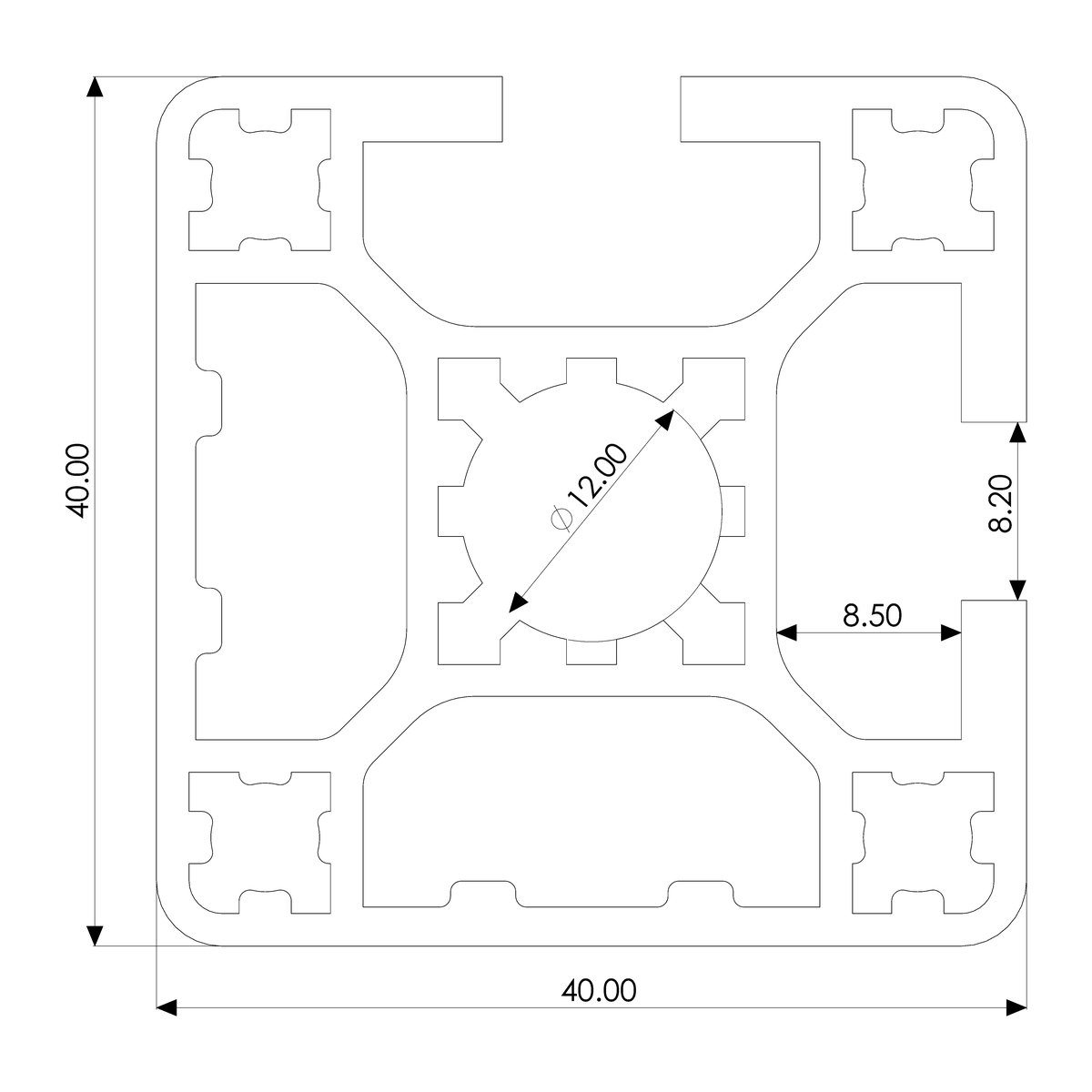

Profile 40×40, 2E, corner, light
Used in robust applications where aesthetics and a clean professional exterior is required, two corner slots provides a clean exterior for the edges of a frame.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 8 | cm⁴ |
| Moment of Inertia | Iy | 8 | cm⁴ |
| Section Modulus | Wx | 4 | cm³ |
| Section Modulus | Wy | 4 | cm³ |
| Weight per Meter | G | 1.3 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
