PG40 Series

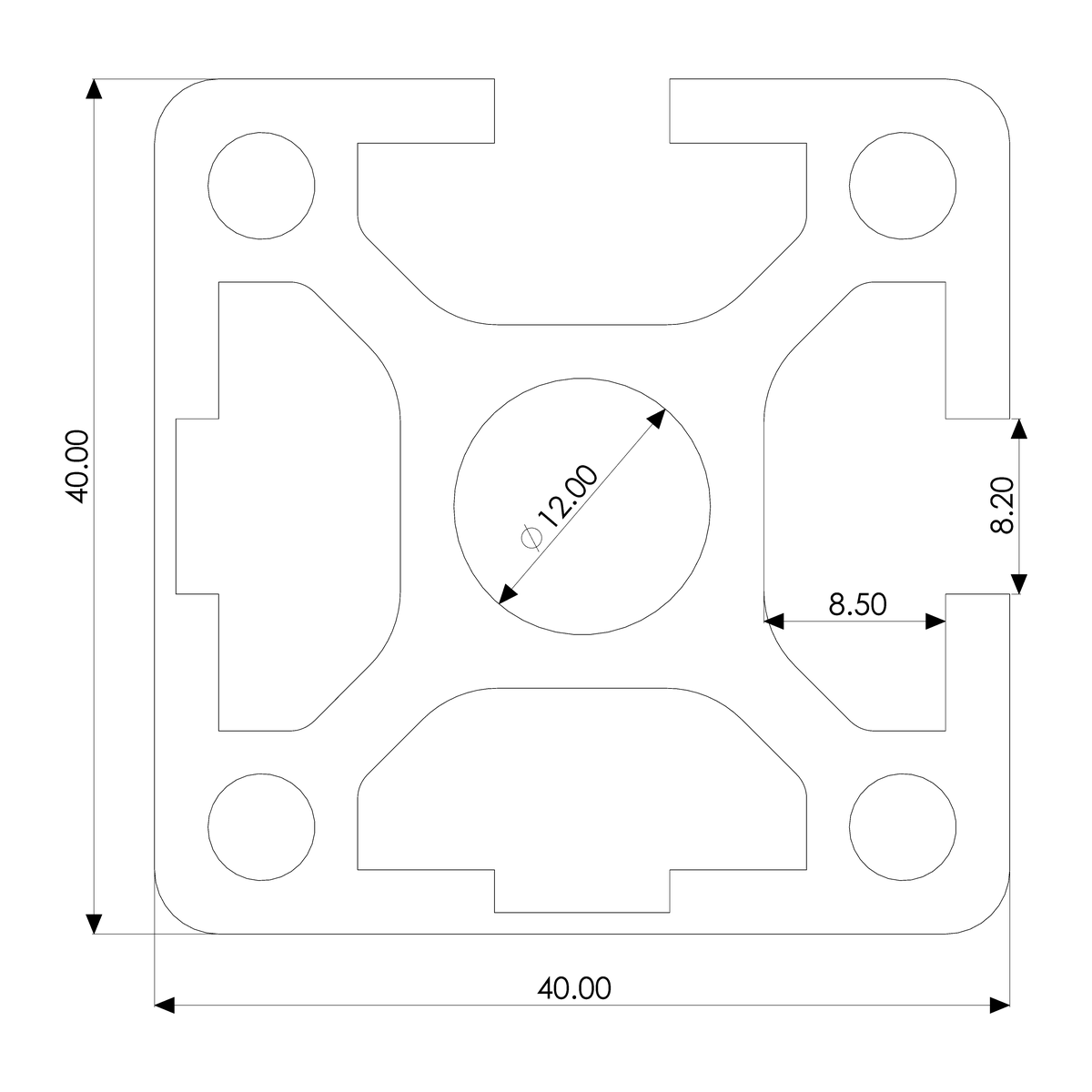

Profile 40×40, 2E, corner, heavy, plain
Used in very robust applications where aesthetics and a clean professional exterior is required, two corner slots provides a clean exterior for the edges of a frame while offering additional strength compared to the light profile version.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 12 | cm⁴ |
| Moment of Inertia | Iy | 12 | cm⁴ |
| Section Modulus | Wx | 6 | cm³ |
| Section Modulus | Wy | 6 | cm³ |
| Weight per Meter | G | 2 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
