PG40 Series

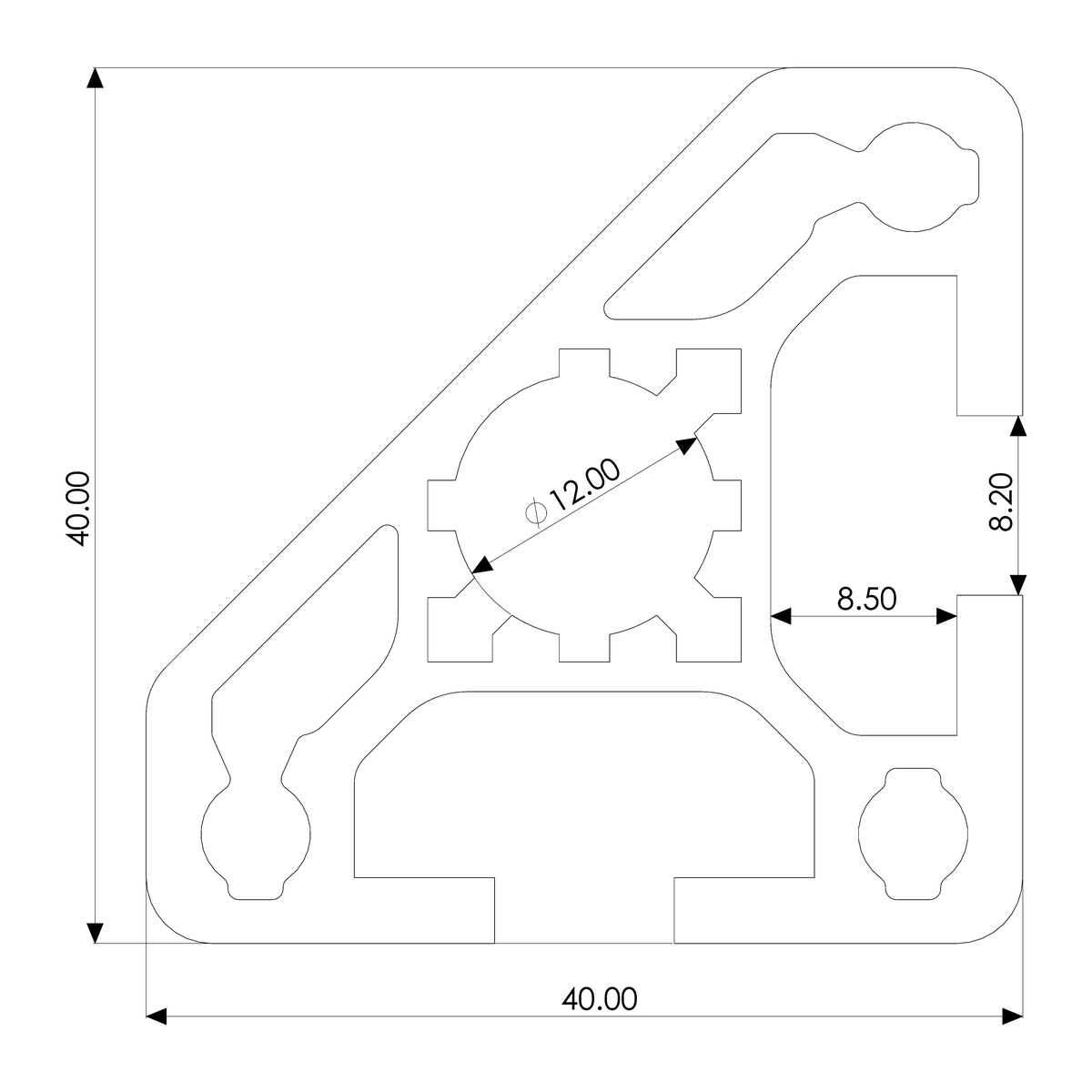

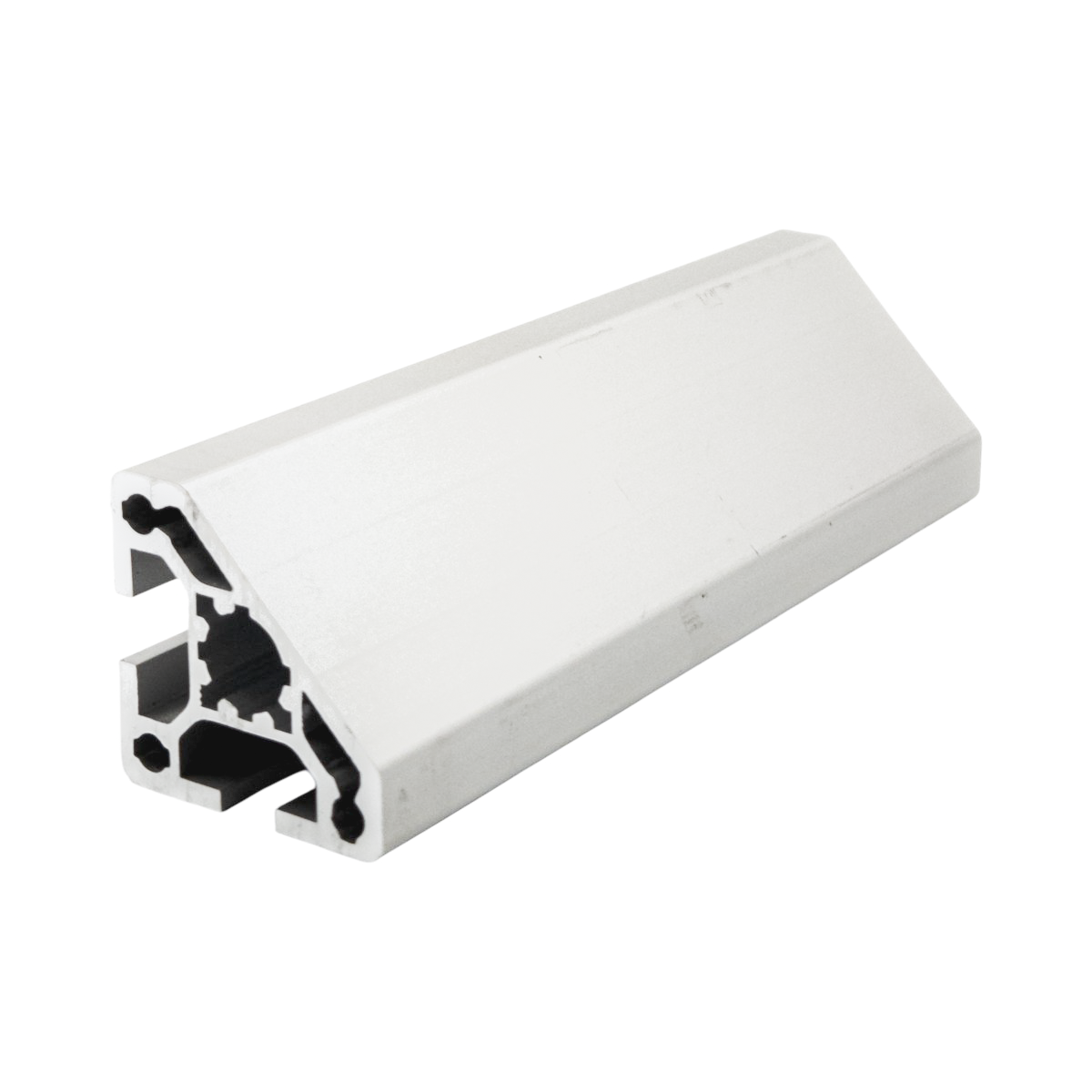

Profile 40×40, 2E, 45 deg., light, plain
Used in robust applications where aesthetics and a clean professional exterior is required, the 45 degree angled exterior is excellent for vertical posts used in the corners of frames which offer increased rigidity and improved aesthetics.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 7.3 | cm⁴ |
| Moment of Inertia | Iy | 7.3 | cm⁴ |
| Section Modulus | Wx | 3.9 | cm³ |
| Section Modulus | Wy | 3.9 | cm³ |
| Weight per Meter | G | 1.4 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
