PG40 Series
Profile 40×40, 1E, light, plain
Used in robust applications where strength and debris shielding is important, cleanroom, machine guarding and rigid professional frames.
Visual Machining Configurator

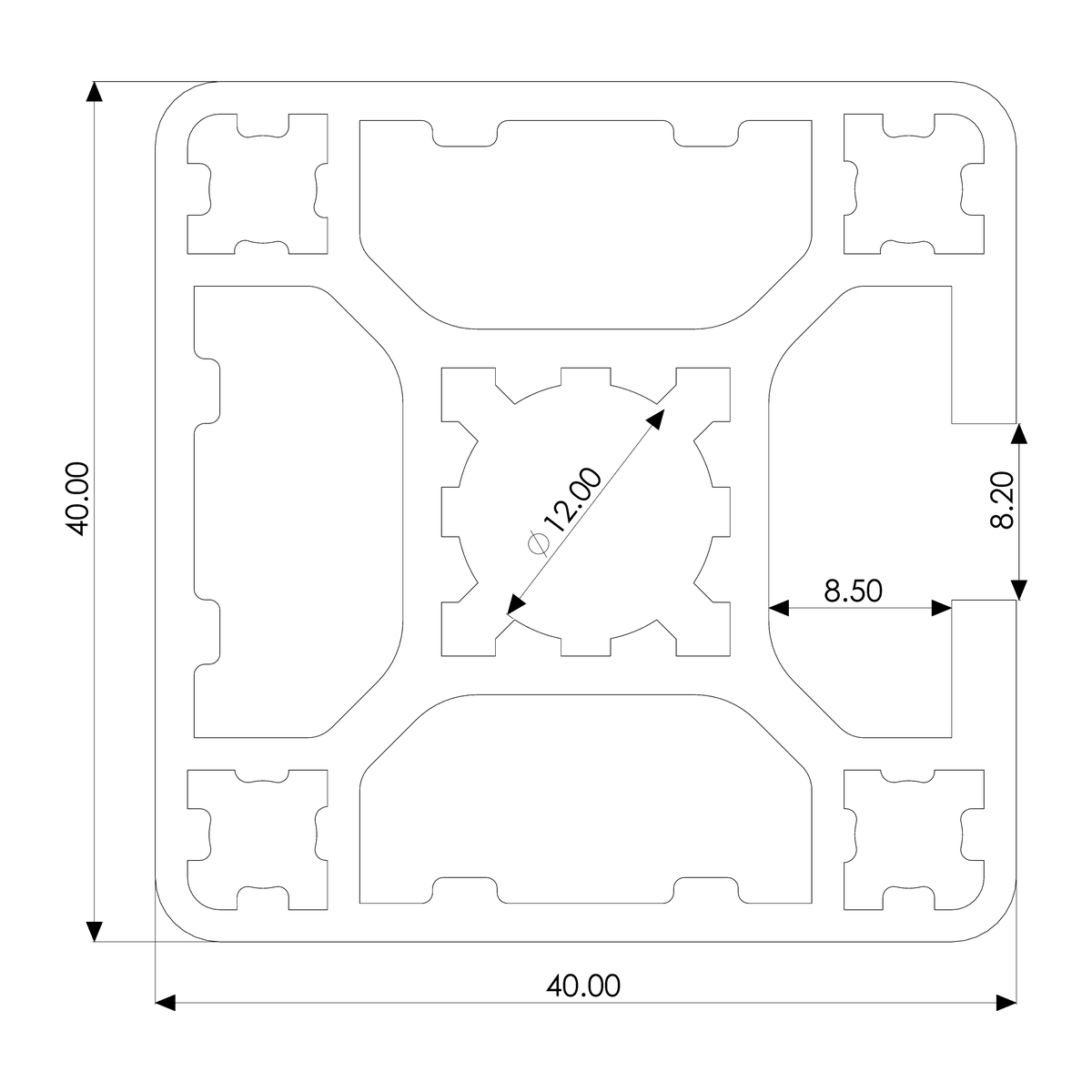

40x40 1EProfile Cross-Section · Click a side
Start End
Finish End
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 10.1 | cm⁴ |
| Moment of Inertia | Iy | 9.8 | cm⁴ |
| Section Modulus | Wx | 5 | cm³ |
| Section Modulus | Wy | 4.8 | cm³ |
| Weight per Meter | G | 1.5 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
110 accessories work with this profile across 20 categories
Anchor, universal, incl. spring
Connector
Cross bushing PG 40
Bushing
Angle GD-Zn, 40 x 39, natural
angle bracket
T-Nut for subsequent insertion, w. spring E, M8
t-nut
Threaded insert M14/M8, L30
threaded insert
Cover cap, 40x40, Ø12, black
end caps
Adust tilt-foot spindle steel, M14 x 66
foot
Hinge 48 fixed, A 22.5
hinge
Mounting block screw type M6, black
mounting block
Connection plate 40x80
Connection Plate
Base plate 40x80, M14
Foot Plate
Handle PA, with bore Ø8.5 L151
handle
