PG40 Series

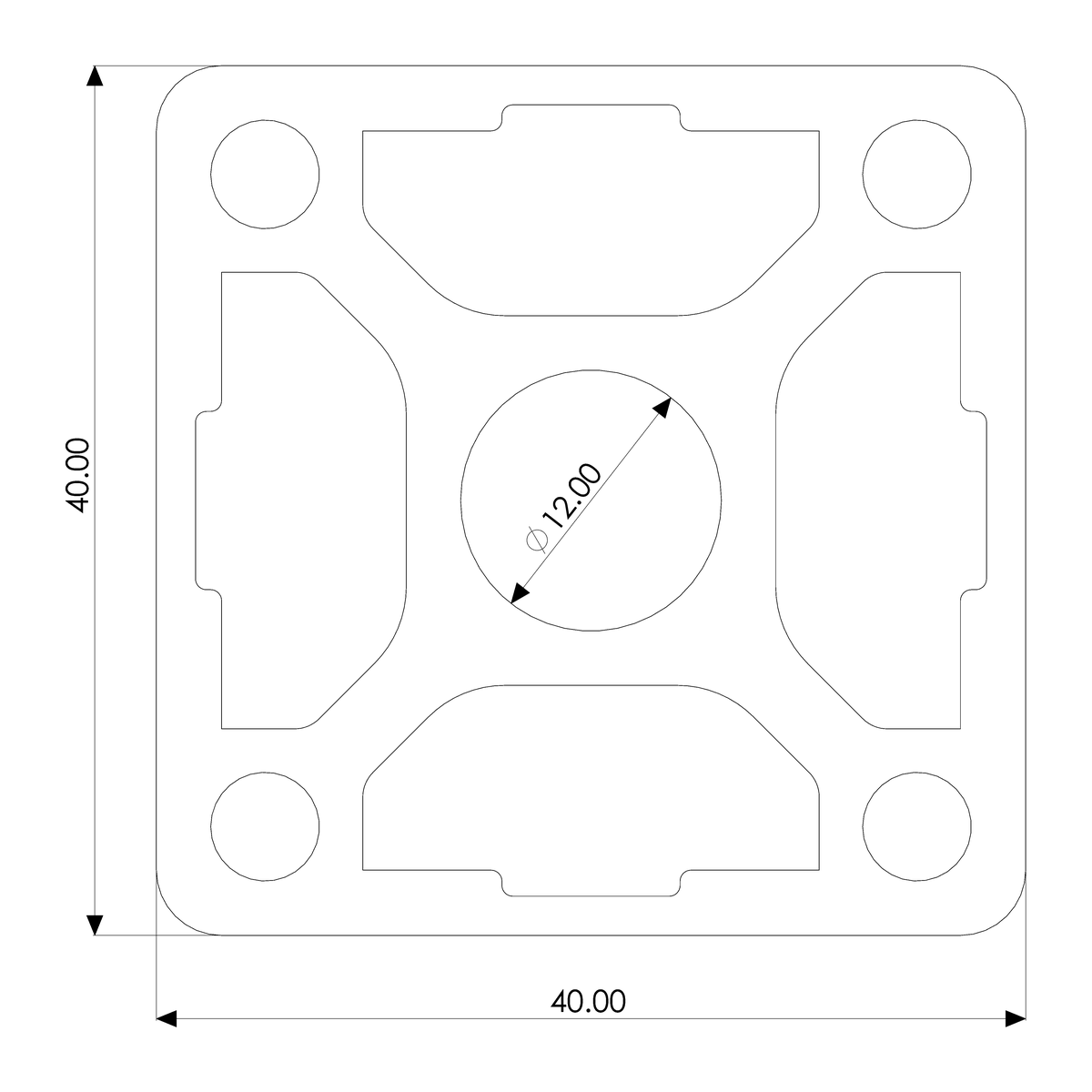

Profile 40×40 0E, heavy, plain
Used in robust applications where strength and debris shielding is important, cleanroom, machine guarding and rigid professional frames.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 12.6 | cm⁴ |
| Moment of Inertia | Iy | 12.6 | cm⁴ |
| Section Modulus | Wx | 6.3 | cm³ |
| Section Modulus | Wy | 6.3 | cm³ |
| Weight per Meter | G | 2 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
110 accessories work with this profile across 20 categories
Anchor, universal, incl. spring
Connector
Cross bushing PG 40
Bushing
Angle GD-Zn, 40 x 39, natural
angle bracket
T-Nut for subsequent insertion, w. spring E, M8
t-nut
Threaded insert M14/M8, L30
threaded insert
Cover cap, 40x40, Ø12, black
end caps
Adust tilt-foot spindle steel, M14 x 66
foot
Hinge 48 fixed, A 22.5
hinge
Mounting block screw type M6, black
mounting block
Connection plate 40x80
Connection Plate
Base plate 40x80, M14
Foot Plate
Handle PA, with bore Ø8.5 L151
handle
