PG40 Series

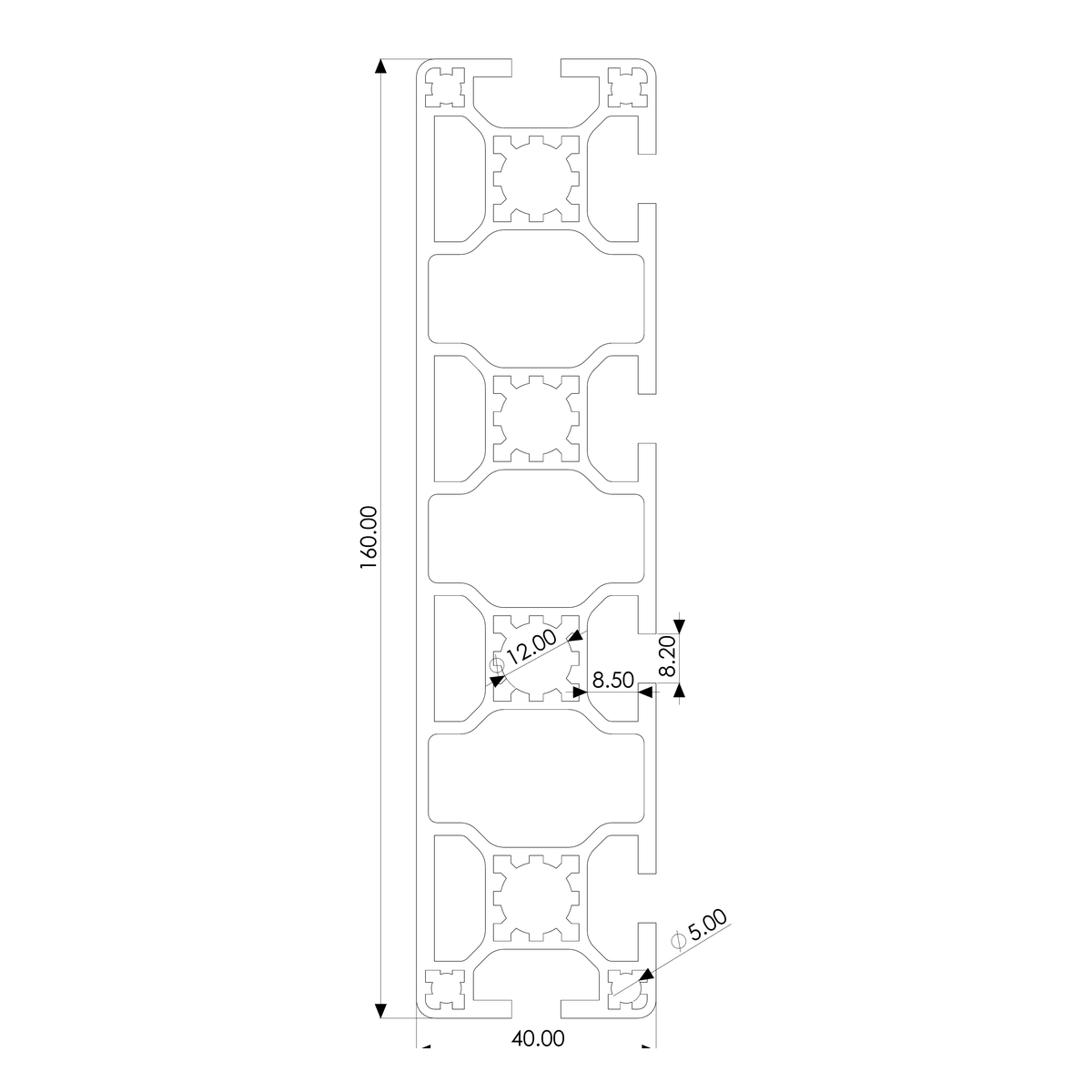

Profile 40×160, 6E, light, plain
Extremely rigid and versatile profile. This profile is used in machine framing, and industrial enclosures.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 450.4 | cm⁴ |
| Moment of Inertia | Iy | 36.3 | cm⁴ |
| Section Modulus | Wx | 56.3 | cm³ |
| Section Modulus | Wy | 18.1 | cm³ |
| Weight per Meter | G | 5 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
108 accessories work with this profile across 19 categories
Anchor, universal, incl. spring
Connector

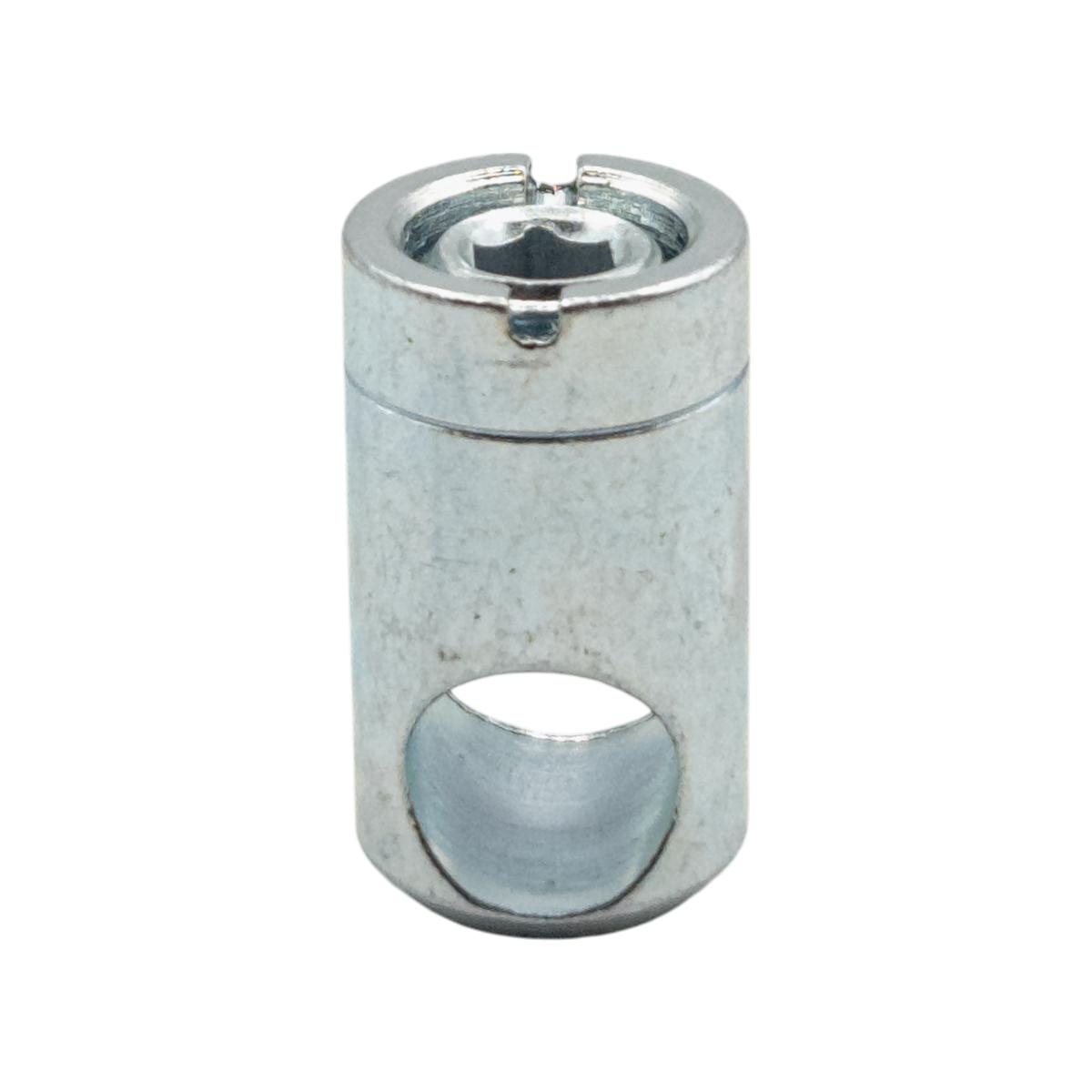

Cross bushing PG 40
Bushing
Angle GD-Zn, 40 x 39, natural
angle bracket

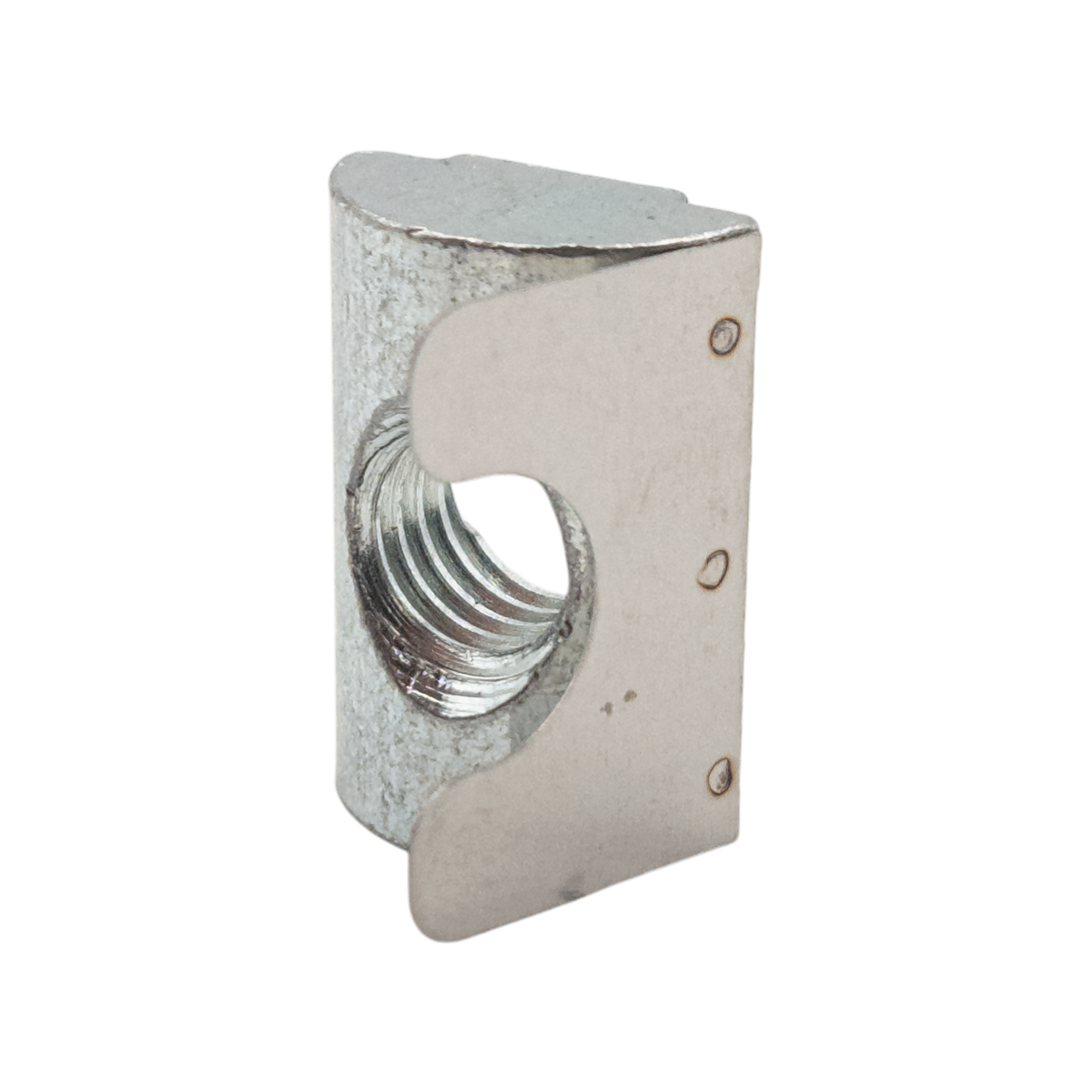

T-Nut for subsequent insertion, w. spring E, M8
t-nut
Threaded insert M14/M8, L30
threaded insert
Adust tilt-foot spindle steel, M14 x 66
foot
Hinge 48 fixed, A 22.5
hinge

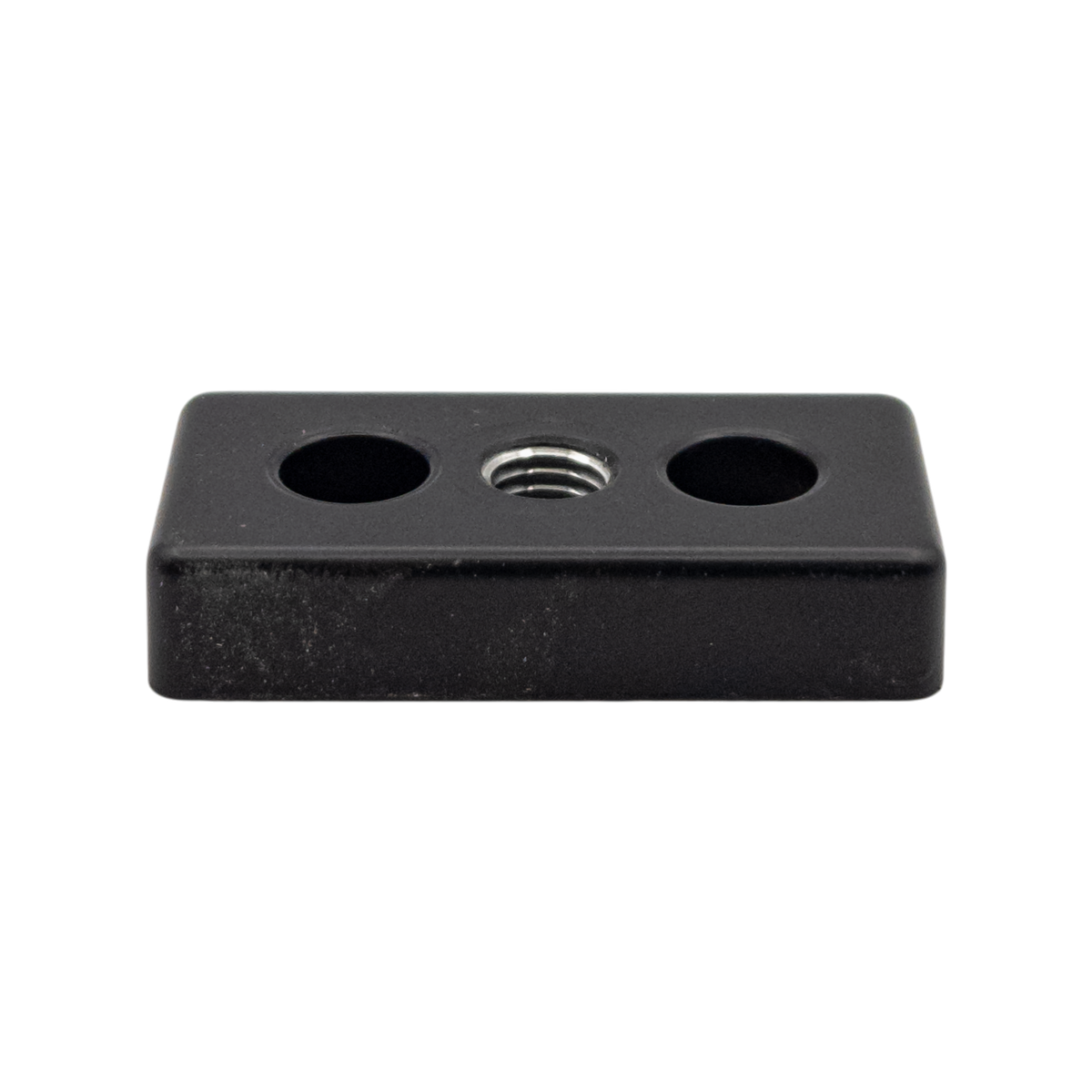

Mounting block screw type M6, black
mounting block

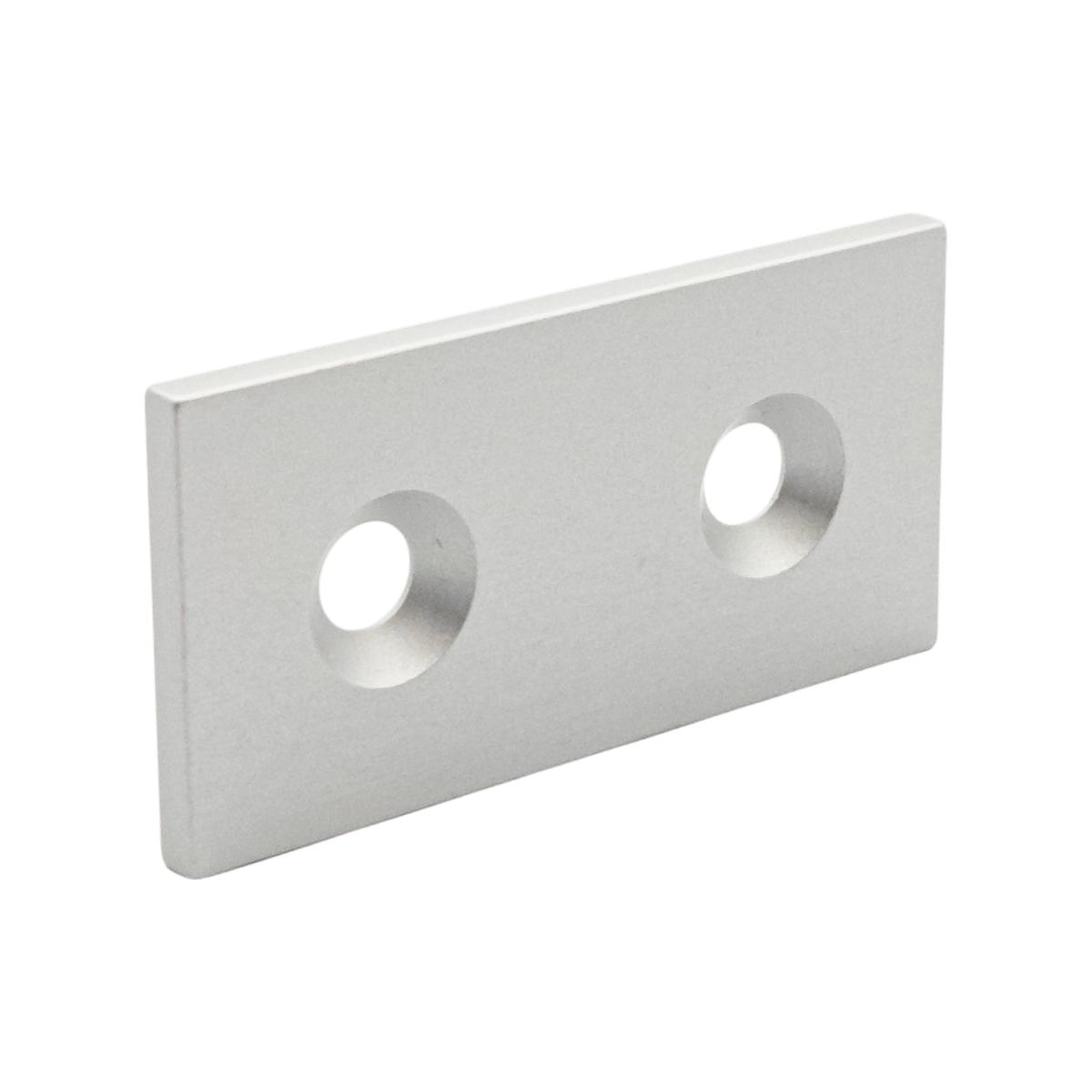

Connection plate 40x80
Connection Plate
Base plate 40x80, M14
Foot Plate
Handle PA, with bore Ø8.5 L151
handle
Latch lock compact (slam),face mount, keyed alike
locks and latches
You May Also Need
Profile 40x40
E-slotProfile · 1.11.040040.43LP
Profile 40x40
E-slotProfile · 1.11.040040.33LP

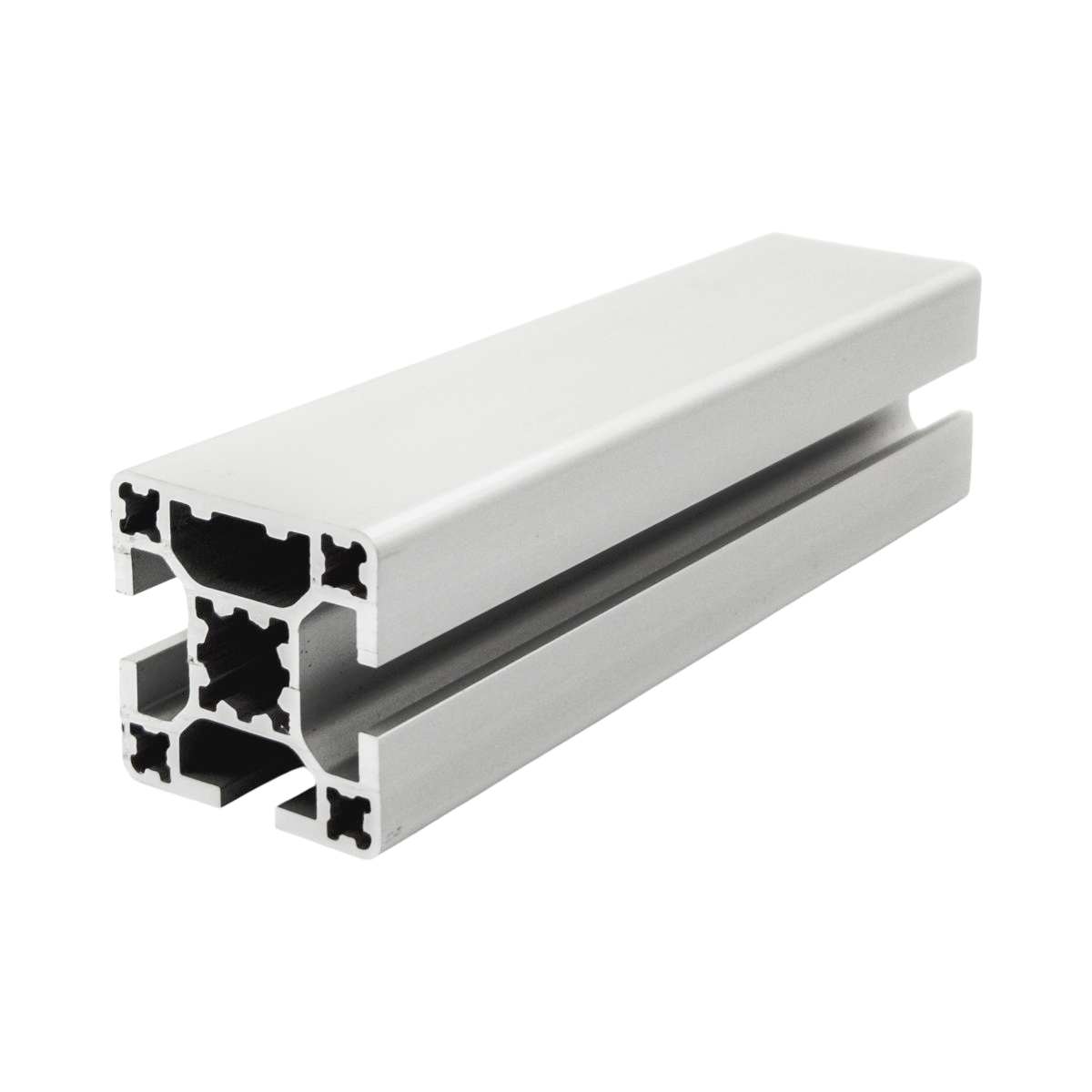

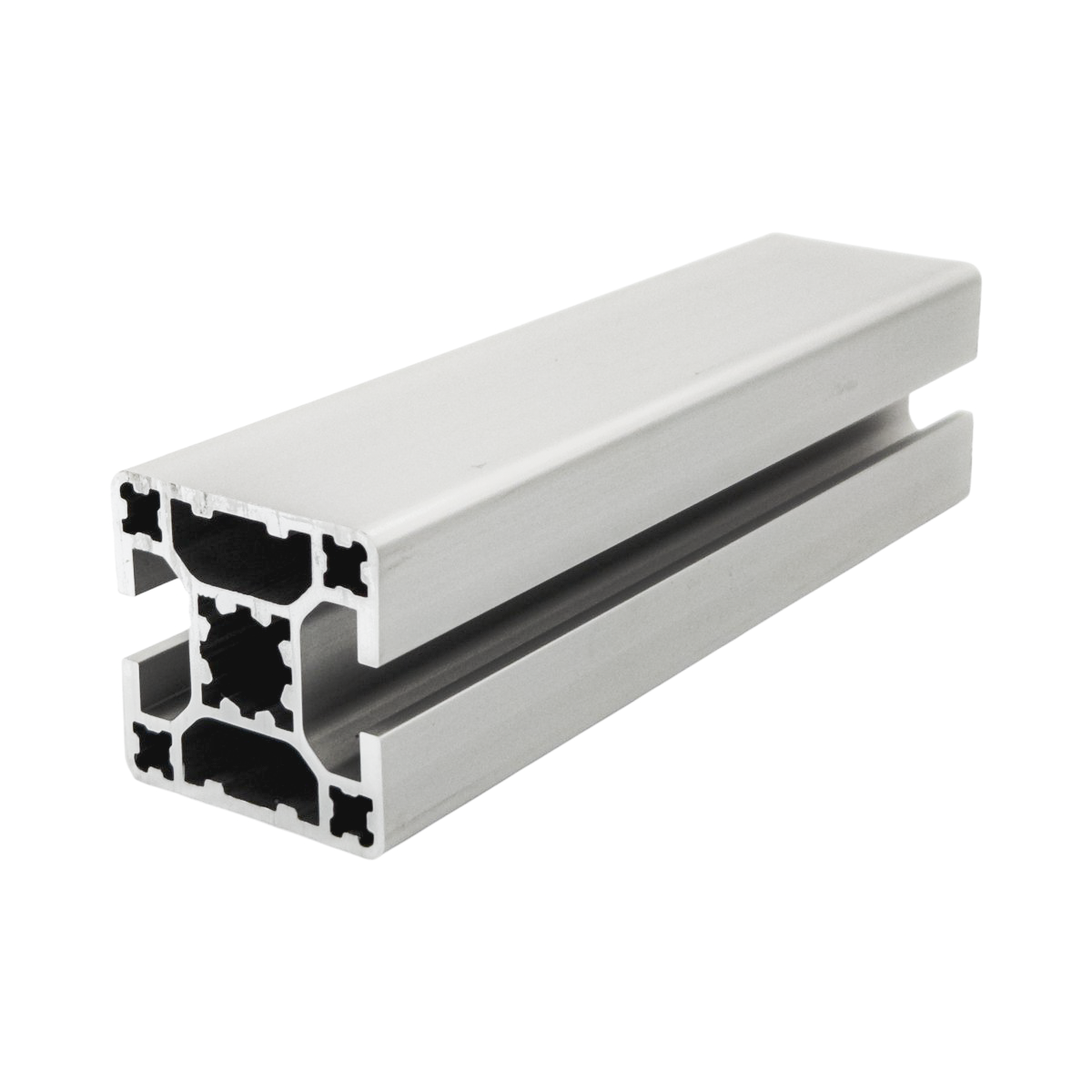

Profile 40x40
E-slotProfile · 1.11.040040.23LP

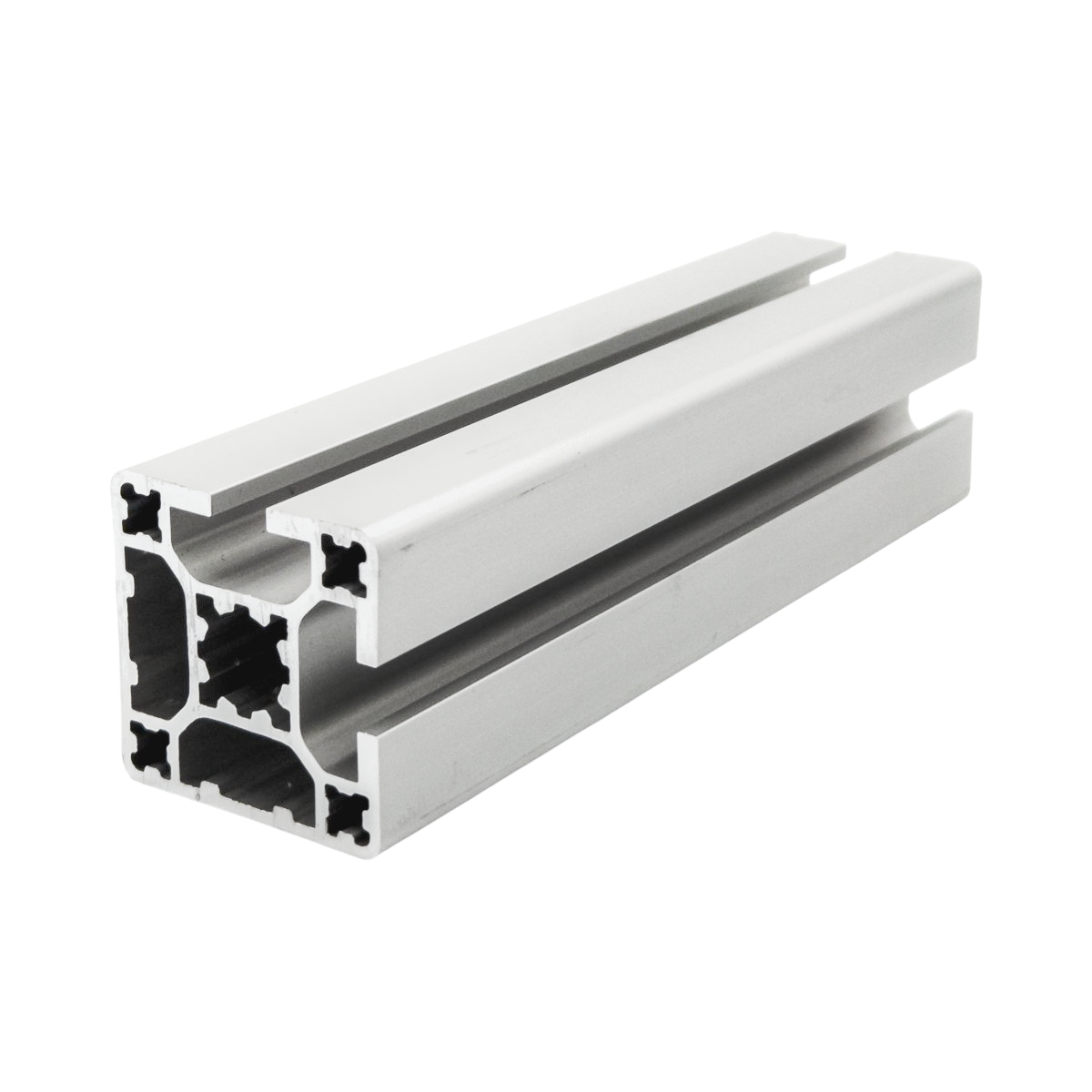

Profile 40x40
E-slotProfile · 1.11.040040.22LP

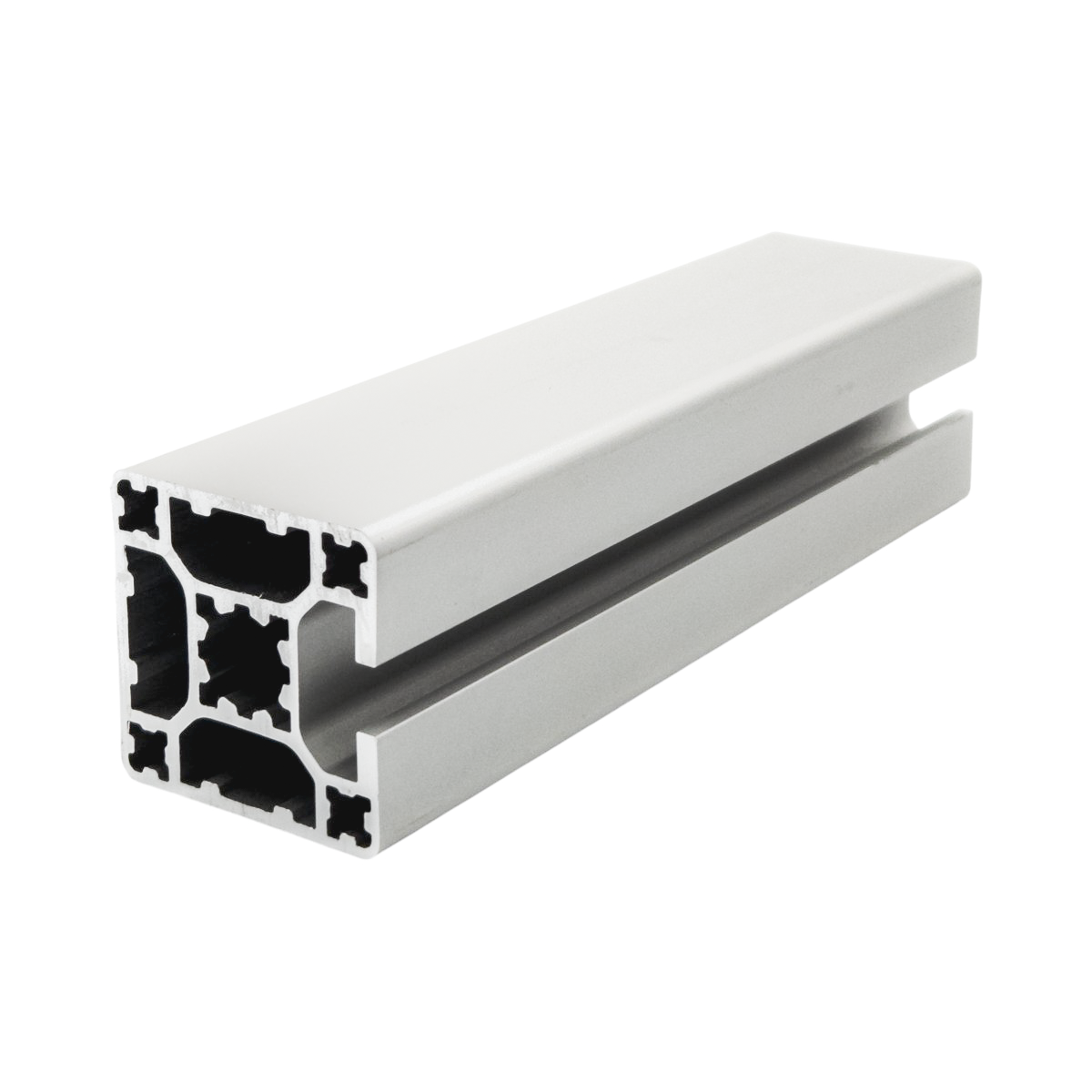

Profile 40x40
E-slotProfile · 1.11.040040.13LP

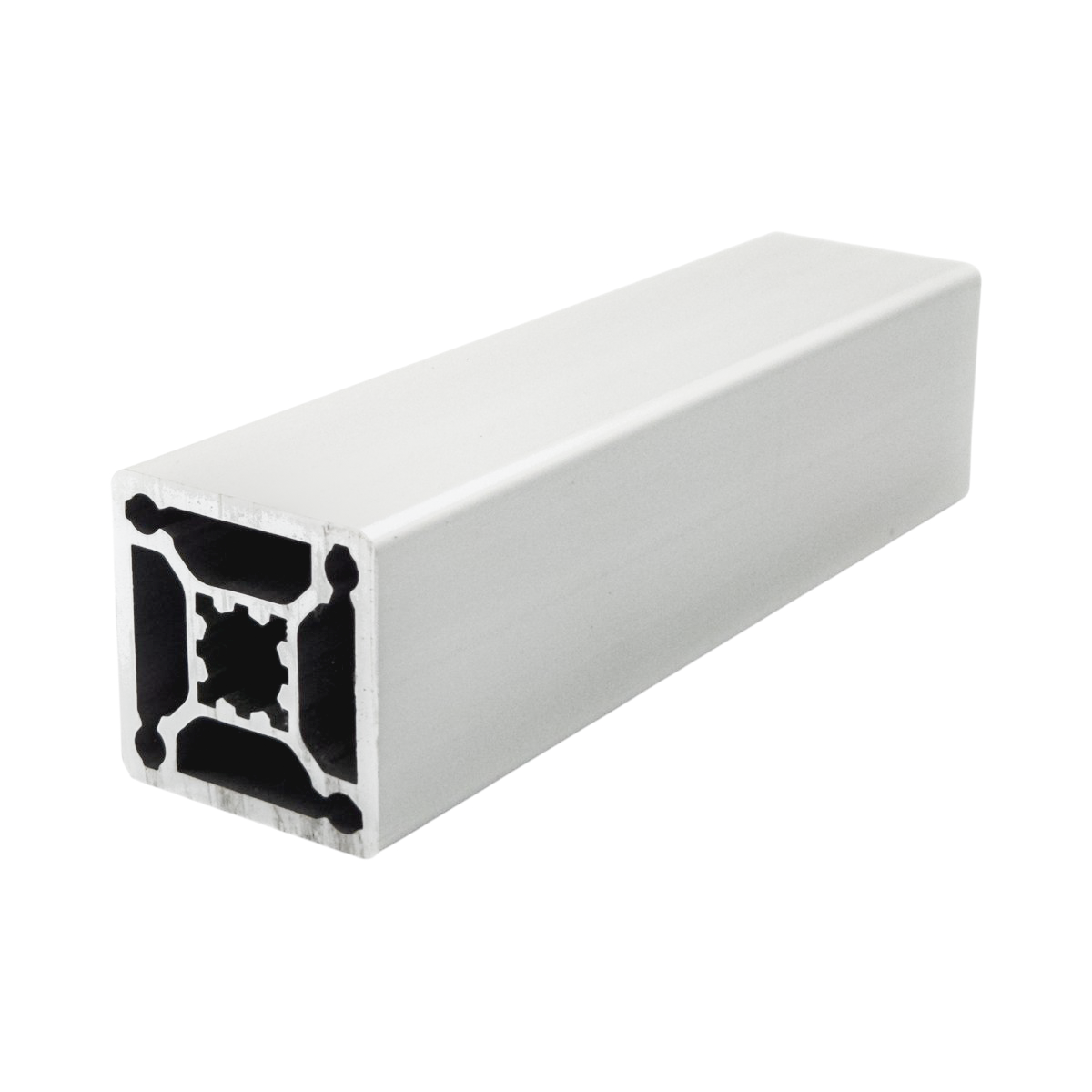

Profile 40x40
E-slotProfile · 1.11.040040.03SP

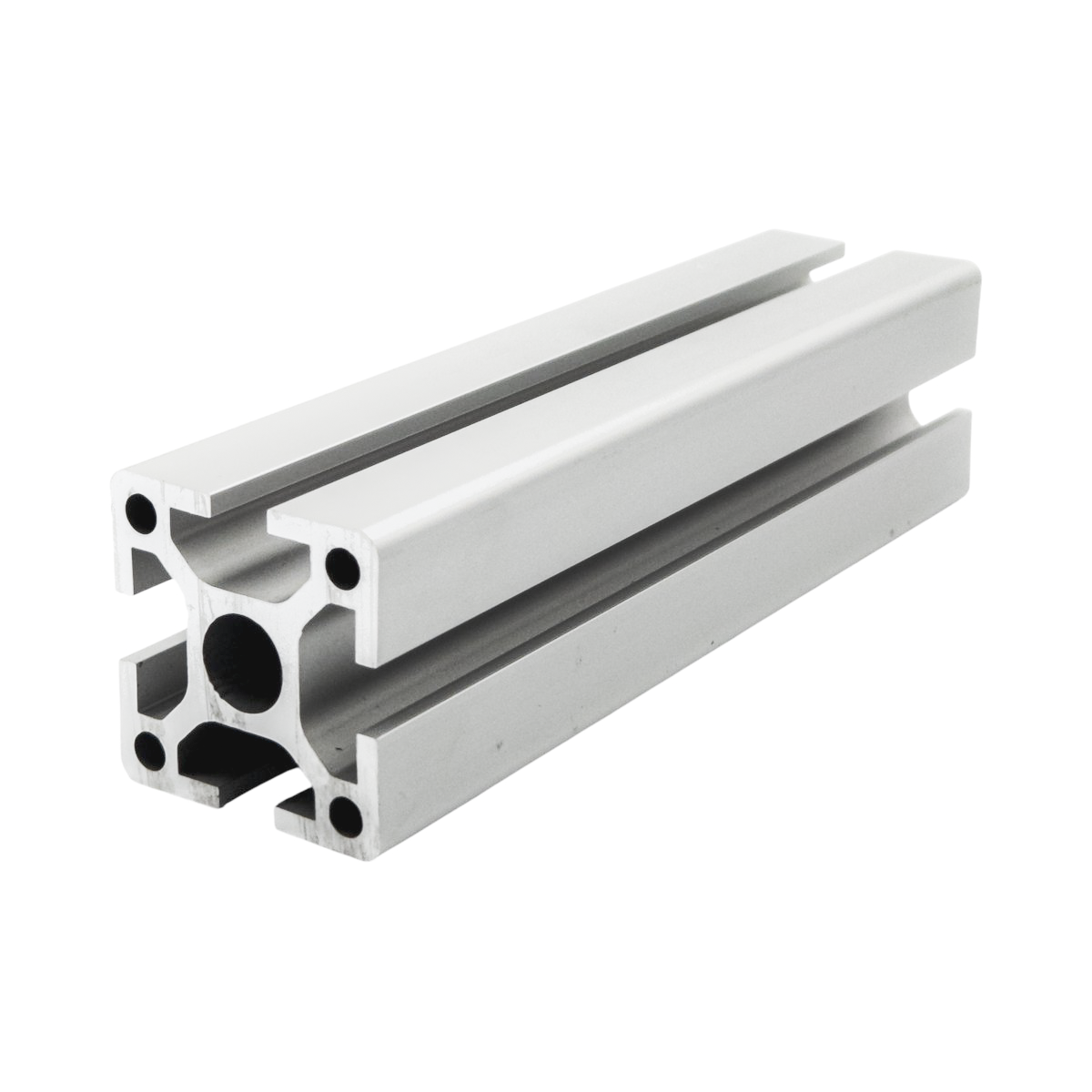

Profile 40x40
