PG40 Series

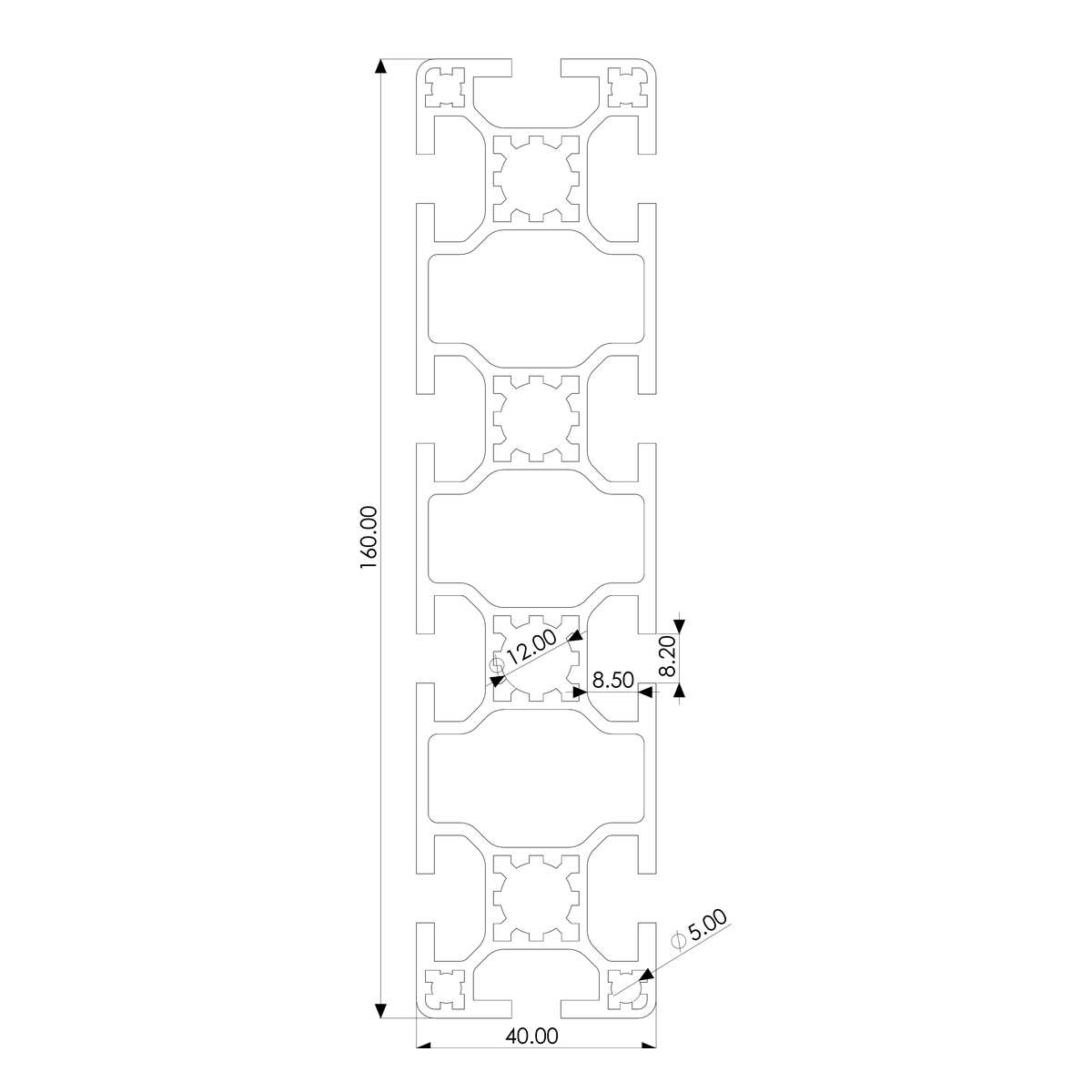

Profile 40×160, 10E, light plain
Extremely rigid and versatile profile. This profile is used in machine framing, and industrial enclosures.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 433.5 | cm⁴ |
| Moment of Inertia | Iy | 33.1 | cm⁴ |
| Section Modulus | Wx | 54.2 | cm³ |
| Section Modulus | Wy | 16.5 | cm³ |
| Weight per Meter | G | 4.7 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
108 accessories work with this profile across 19 categories
