PG30 Series
Profile 30×30 3F, heavy
Used in robust applications where aesthetics and a clean professional exterior is required, three open slots allow for versatile orientations and applications while keeping the exterior smooth.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 3.5 | cm⁴ |
| Moment of Inertia | Iy | 3.7 | cm⁴ |
| Section Modulus | Wx | 2.4 | cm³ |
| Section Modulus | Wy | 2.4 | cm³ |
| Weight per Meter | G | 1.1 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
90 accessories work with this profile across 17 categories
Anchor, universal, incl. spring
Connector

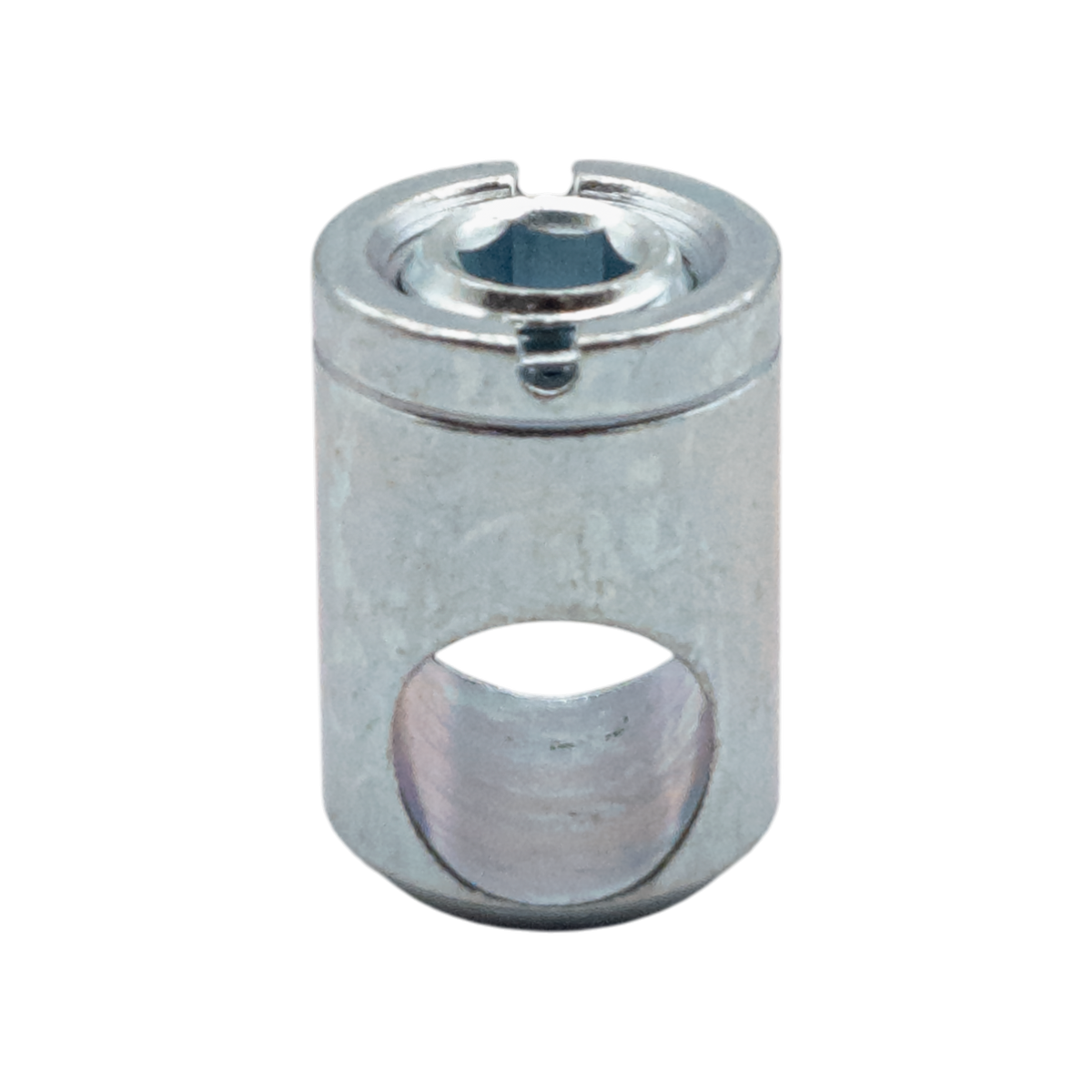

Cross bushing PG 30
Bushing
T-Nut for subsequent insertion, w. spring F, M6
t-nut

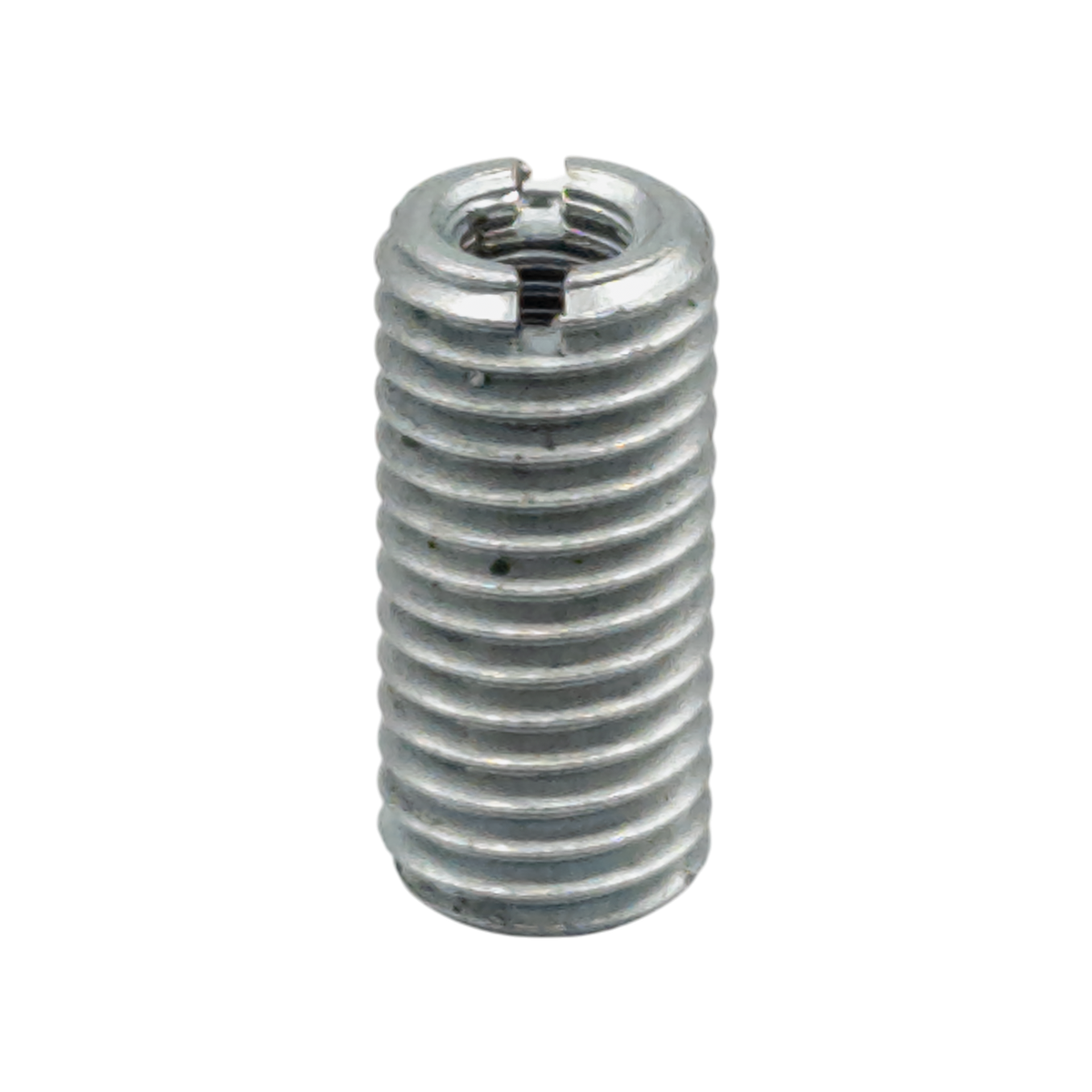

Threaded insert M14/M8, L30
threaded insert
Cover cap, 30x30, Ø12, black
end caps

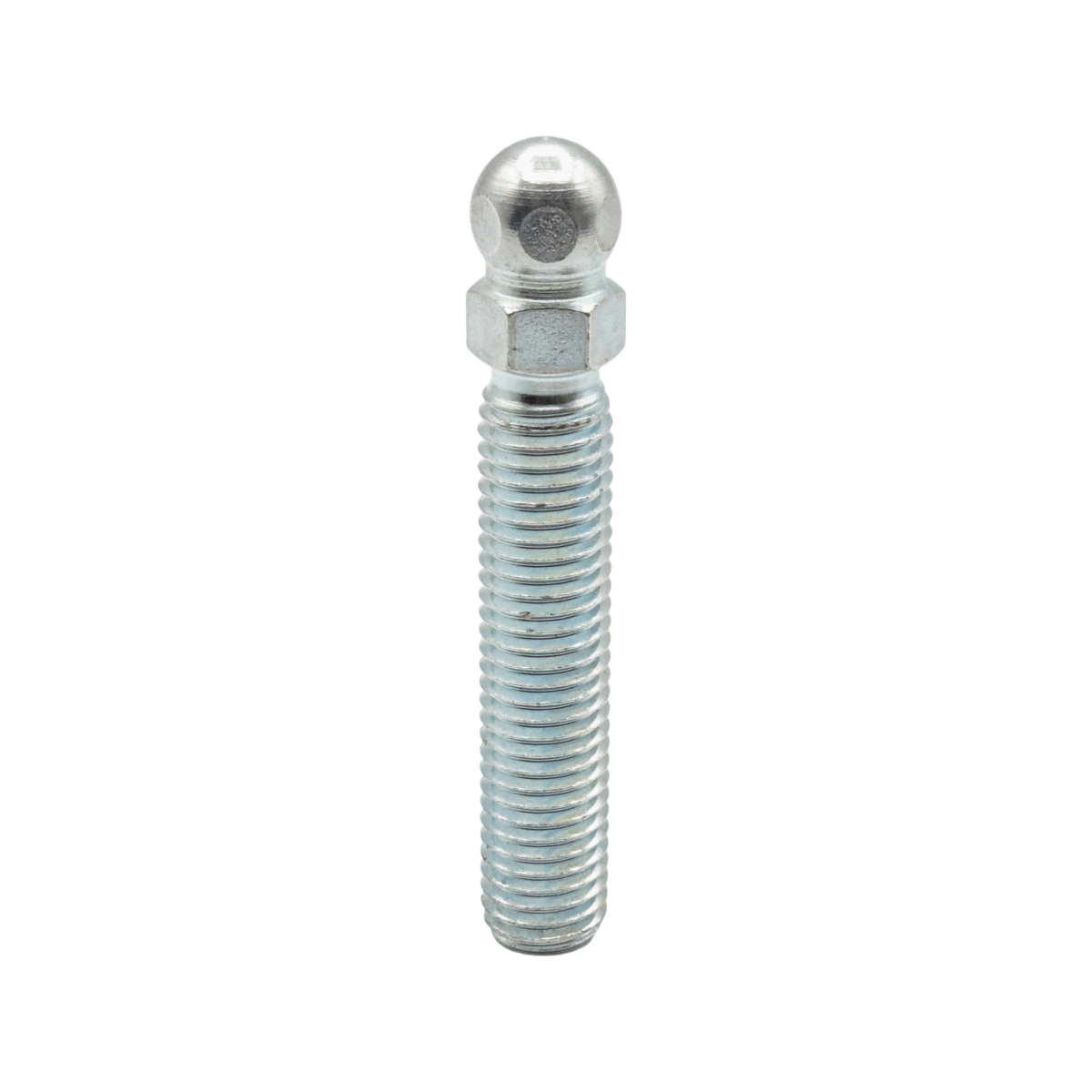

Adust tilt-foot spindle steel, M14 x 66
foot
Hinge 48 fixed, A 17.5
hinge
Mounting block screw type M6, black
mounting block

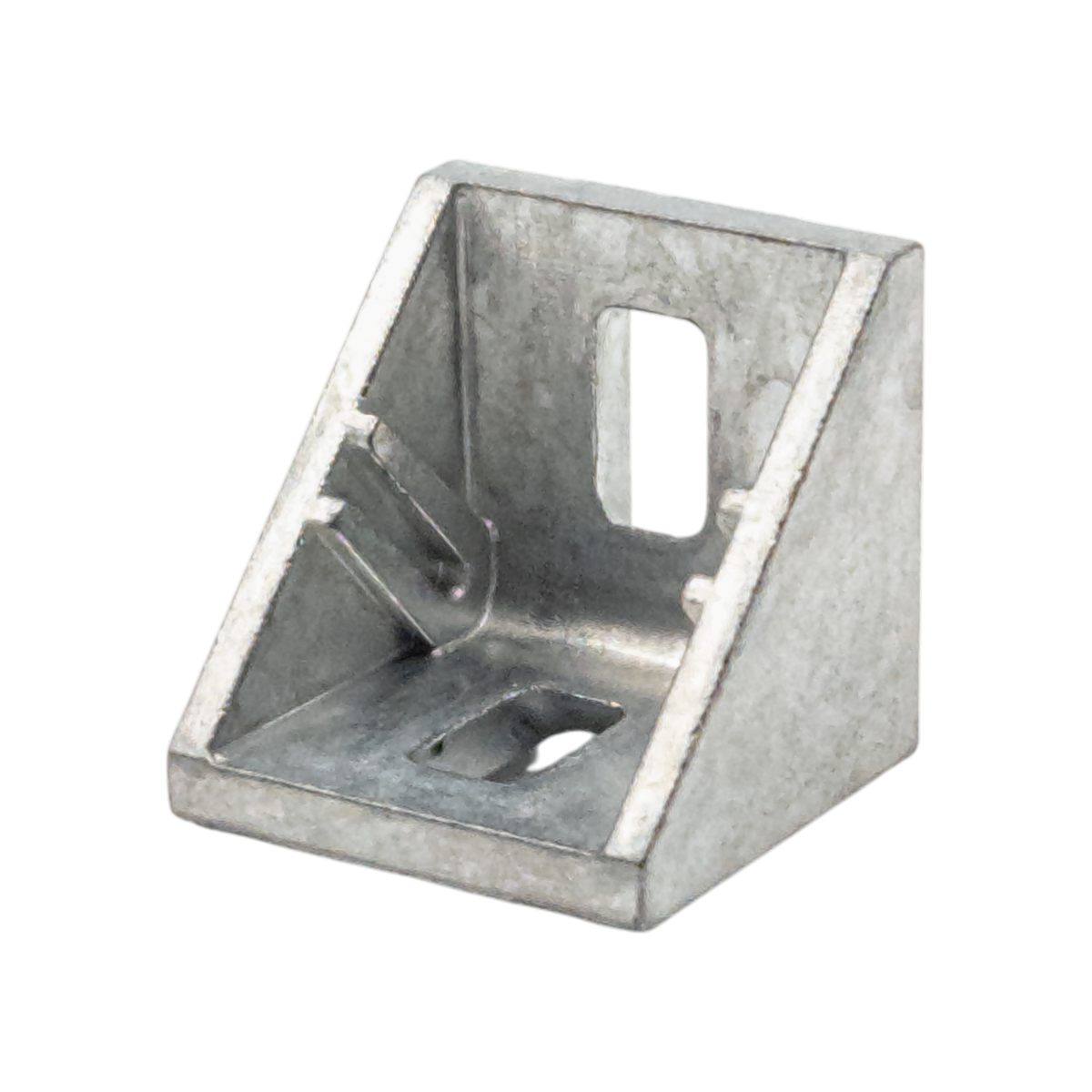

Angle GD-Zn, 28x28, natural
angle bracket

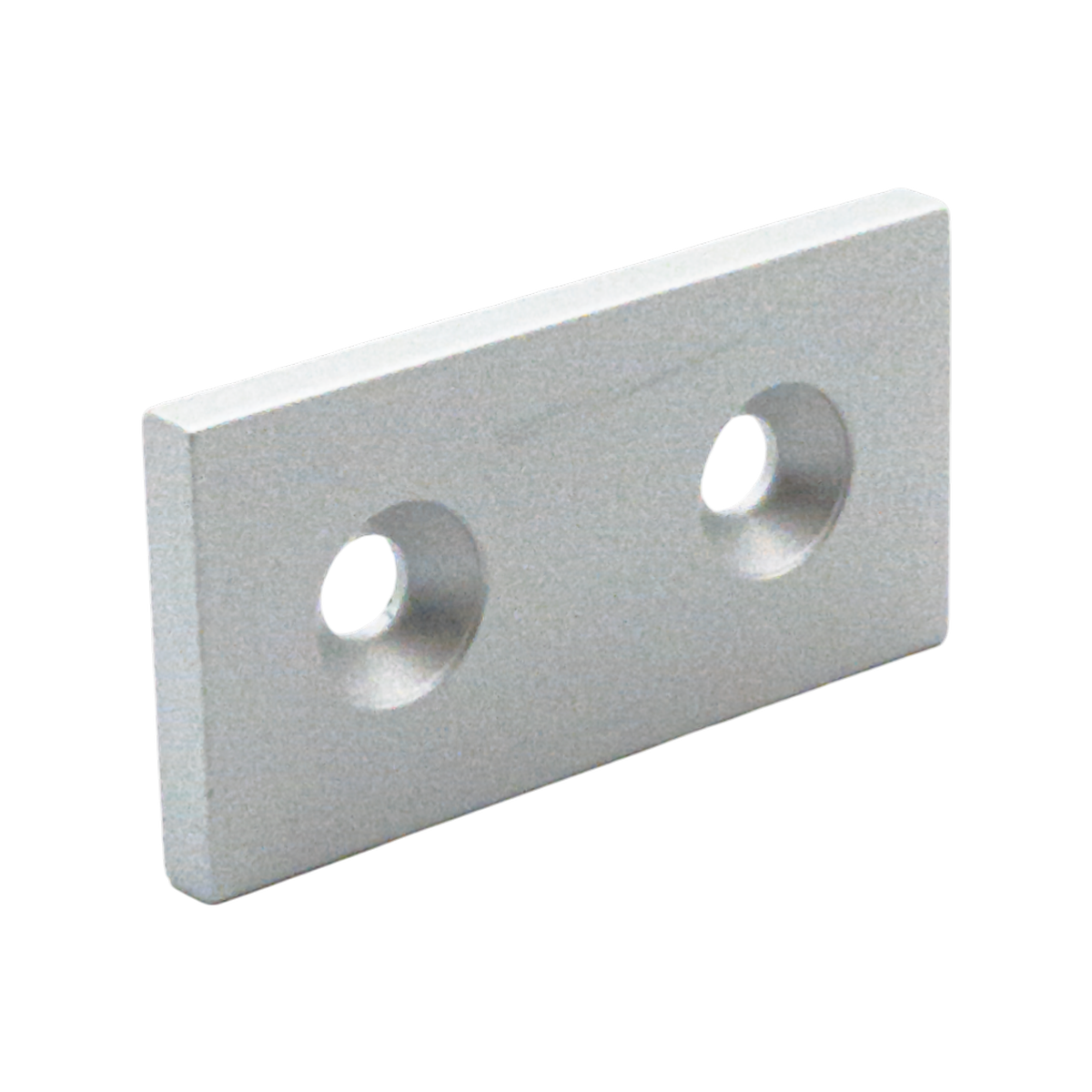

Connection plate 30x60
Connection Plate
Handle PA, with bore Ø8.5 L151
handle
Latch lock compact (slam),face mount, keyed alike
locks and latches
You May Also Need

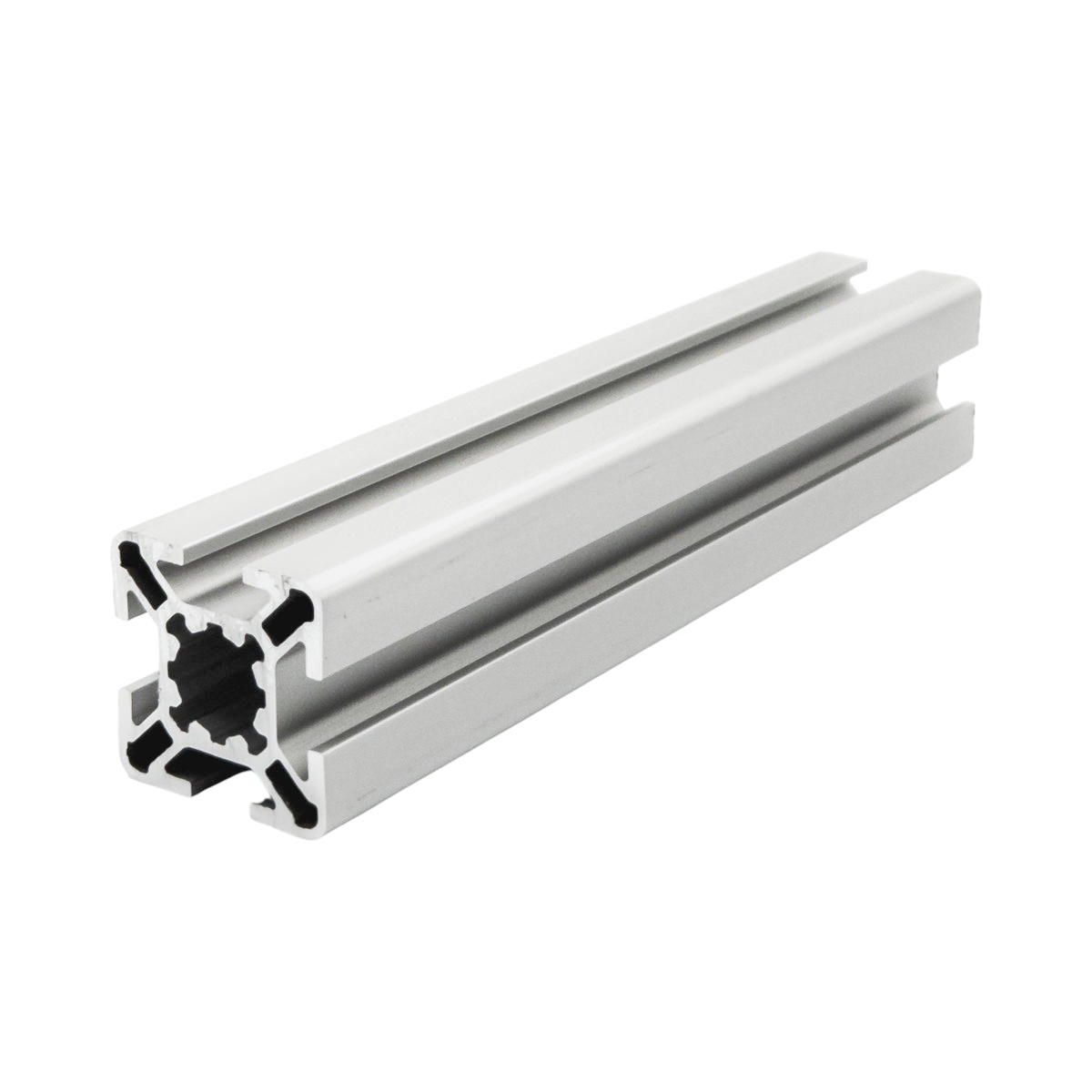

Profile 30x30
F-slotProfile · 1.11.030030.43LP
Profile 30x30
F-slotProfile · 1.11.030030.33LP

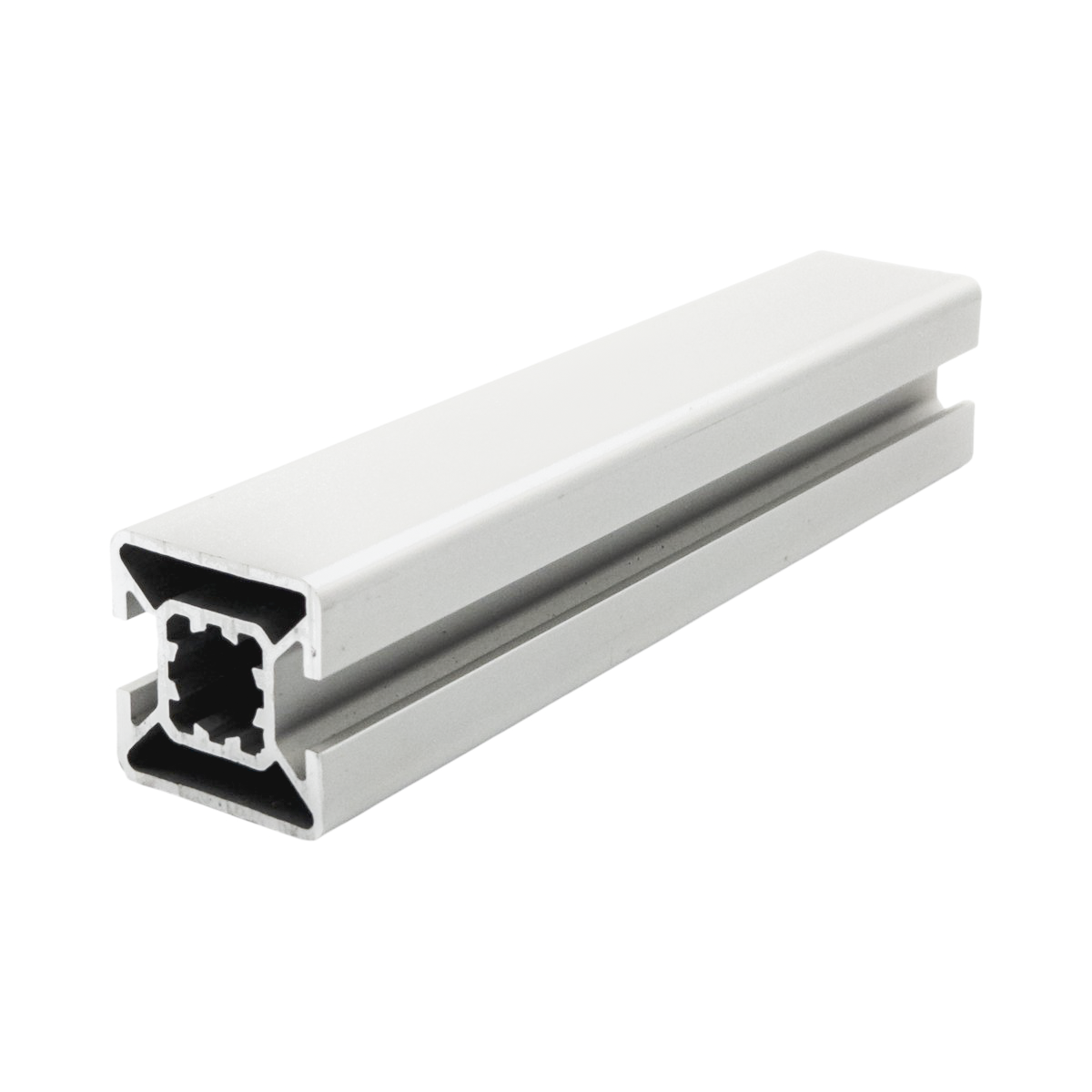

Profile 30x30
F-slotProfile · 1.11.030030.23LP

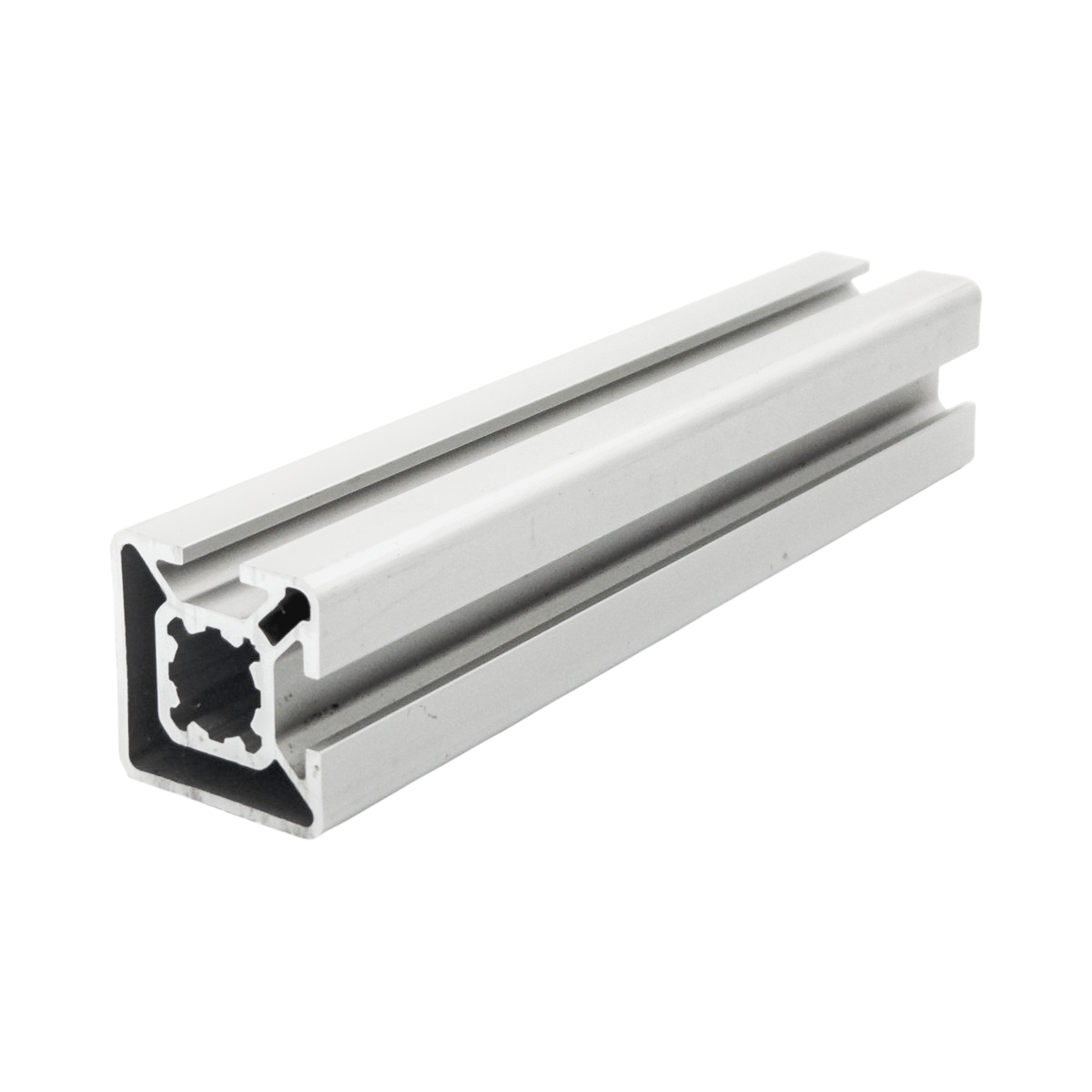

Profile 30x30
F-slotProfile · 1.11.030030.22LP

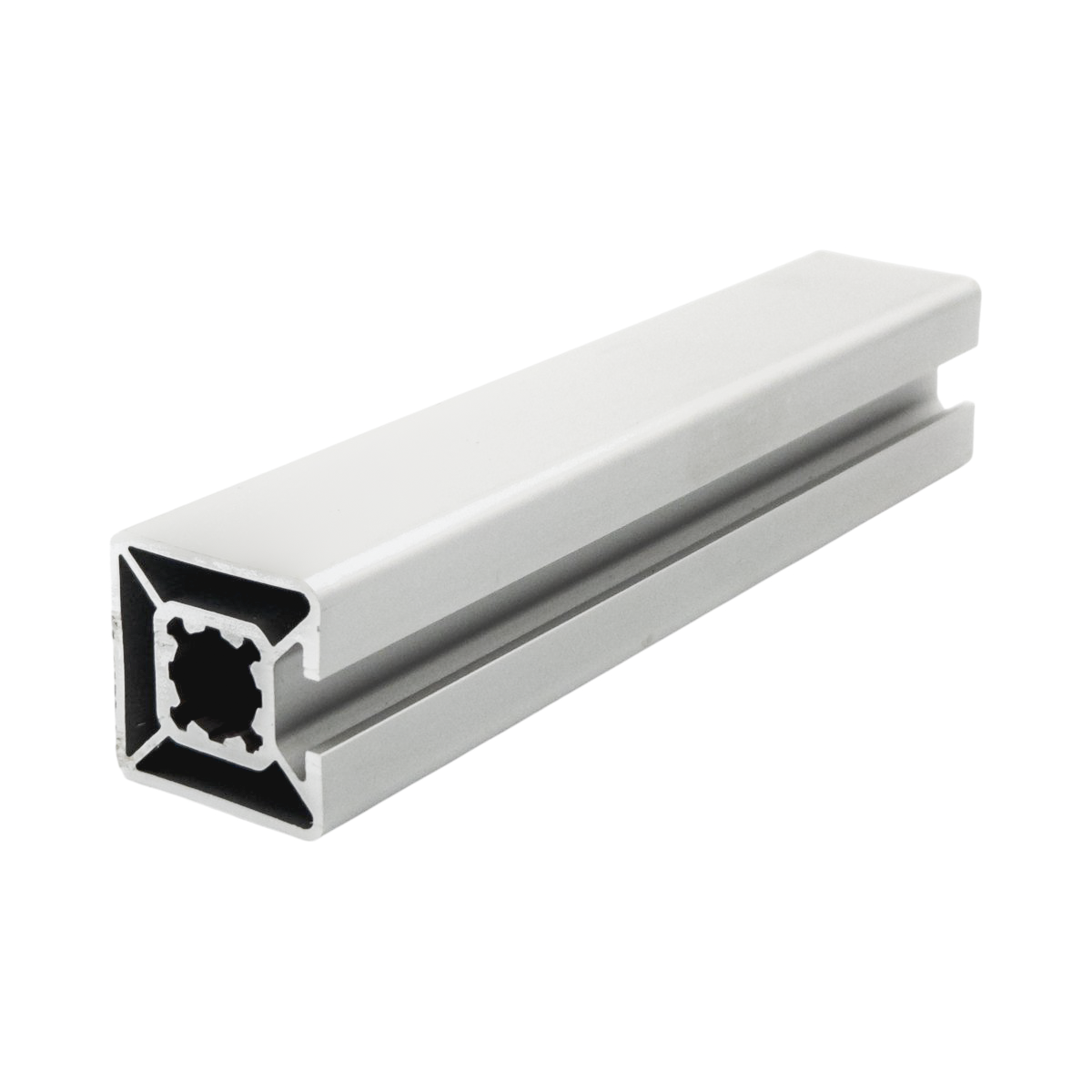

Profile 30x30
F-slotProfile · 1.11.030030.13LP
Profile 30x30
F-slotProfile · 1.11.030030.03SP

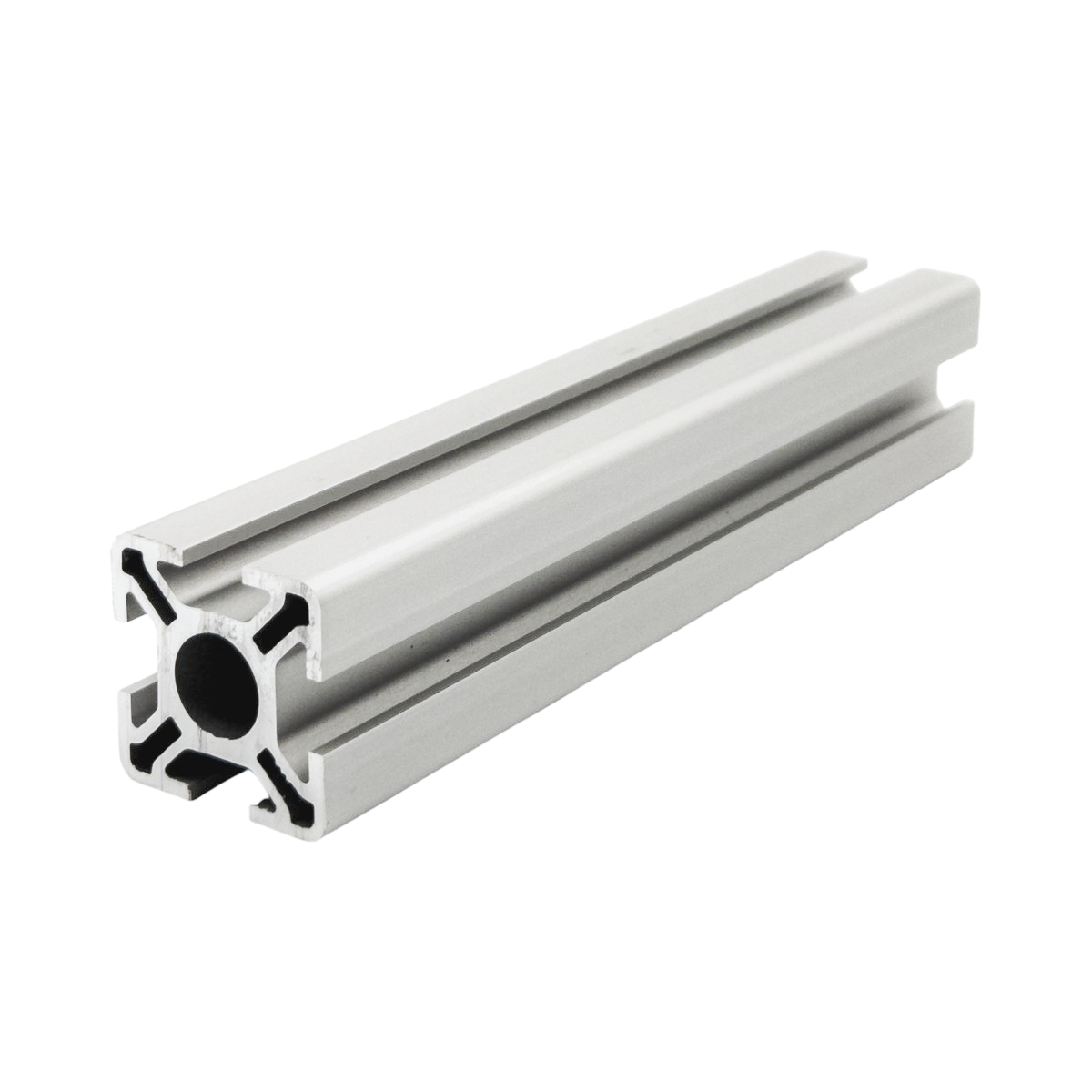

Profile 30x30
