PG30 Series

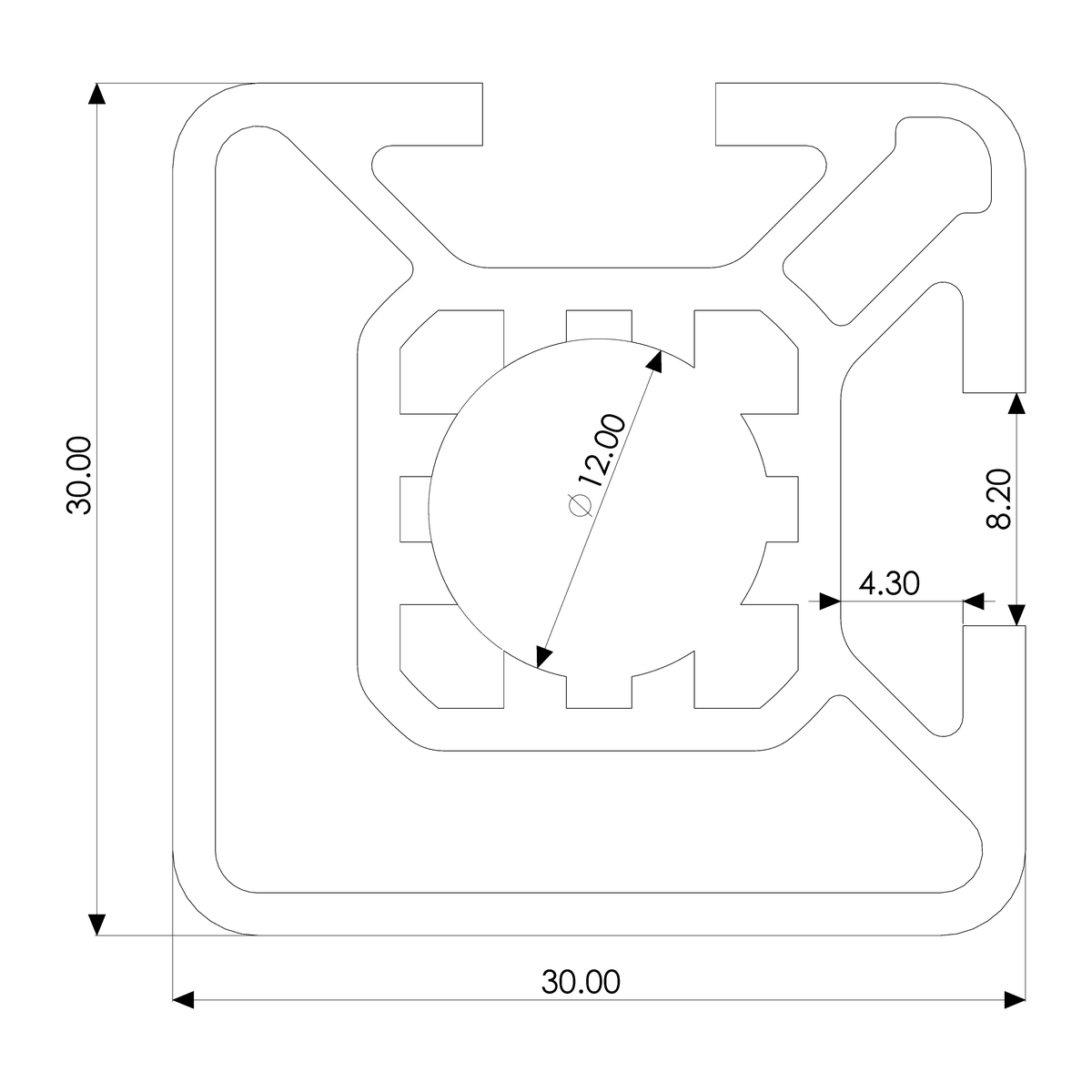

Profile 30×30, 2F, corner, light, plain
Used in moderately robust applications where aesthetics and a clean professional exterior is required, two corner slots provides a clean exterior for the edges of a frame.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 3.2 | cm⁴ |
| Moment of Inertia | Iy | 3.2 | cm⁴ |
| Section Modulus | Wx | 2.1 | cm³ |
| Section Modulus | Wy | 2.1 | cm³ |
| Weight per Meter | G | 0.9 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
90 accessories work with this profile across 17 categories
Anchor, universal, incl. spring
Connector
Cross bushing PG 30
Bushing
T-Nut for subsequent insertion, w. spring F, M6
t-nut
Threaded insert M14/M8, L30
threaded insert
Cover cap, 30x30, Ø12, black
end caps
Adust tilt-foot spindle steel, M14 x 66
foot
Hinge 48 fixed, A 17.5
hinge
Mounting block screw type M6, black
mounting block
Angle GD-Zn, 28x28, natural
angle bracket
Connection plate 30x60
Connection Plate
Handle PA, with bore Ø8.5 L151
handle
Latch lock compact (slam),face mount, keyed alike
locks and latches
