PG30 Series

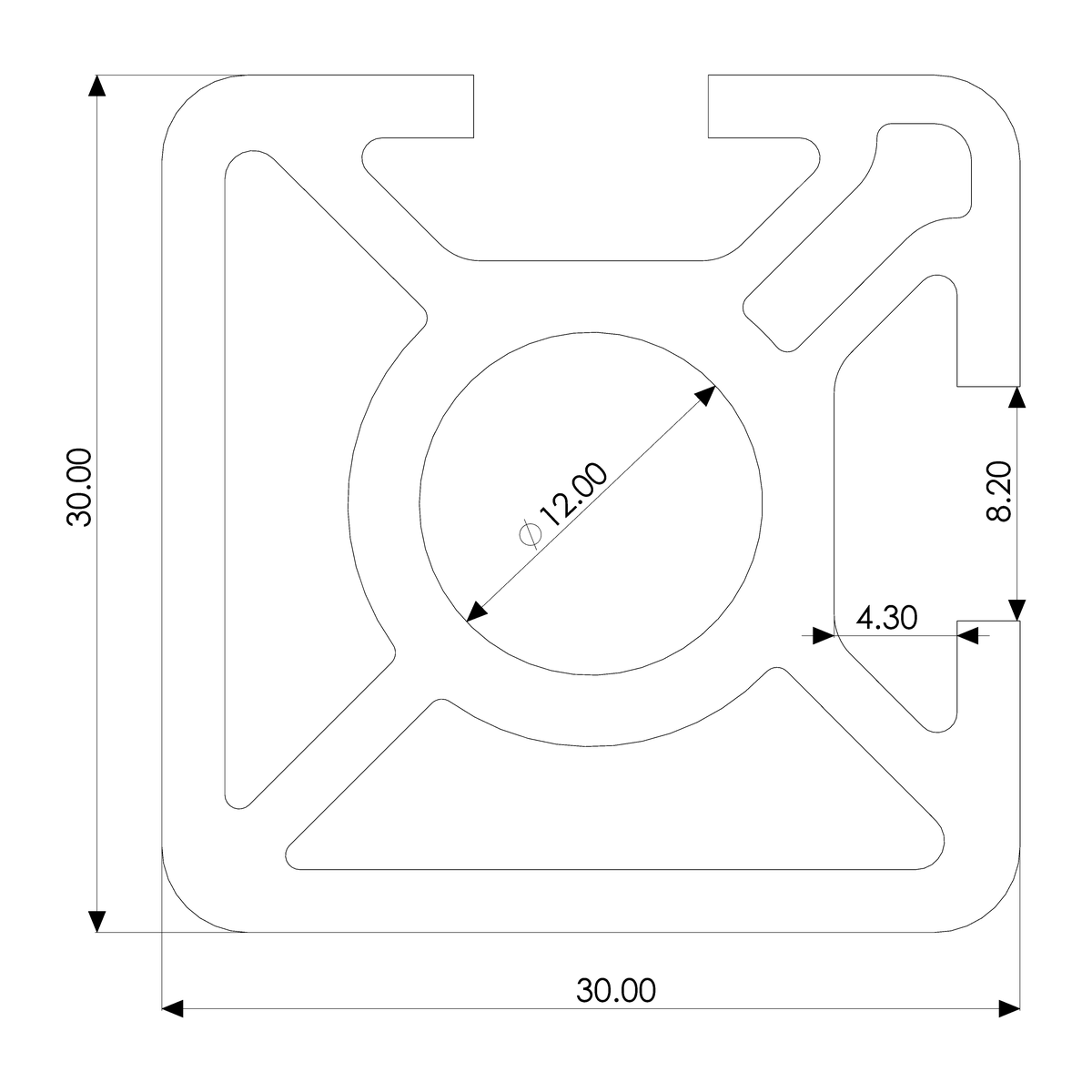

Profile 30×30, 2F, corner, heavy, B
Used in robust applications where aesthetics and a clean professional exterior is required, two corner slots provides a clean exterior for the edges of a frame while offering additional strength compared to the light profile version.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 3.7 | cm⁴ |
| Moment of Inertia | Iy | 3.7 | cm⁴ |
| Section Modulus | Wx | 2.4 | cm³ |
| Section Modulus | Wy | 2.4 | cm³ |
| Weight per Meter | G | 1.1 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
