PG30 Series

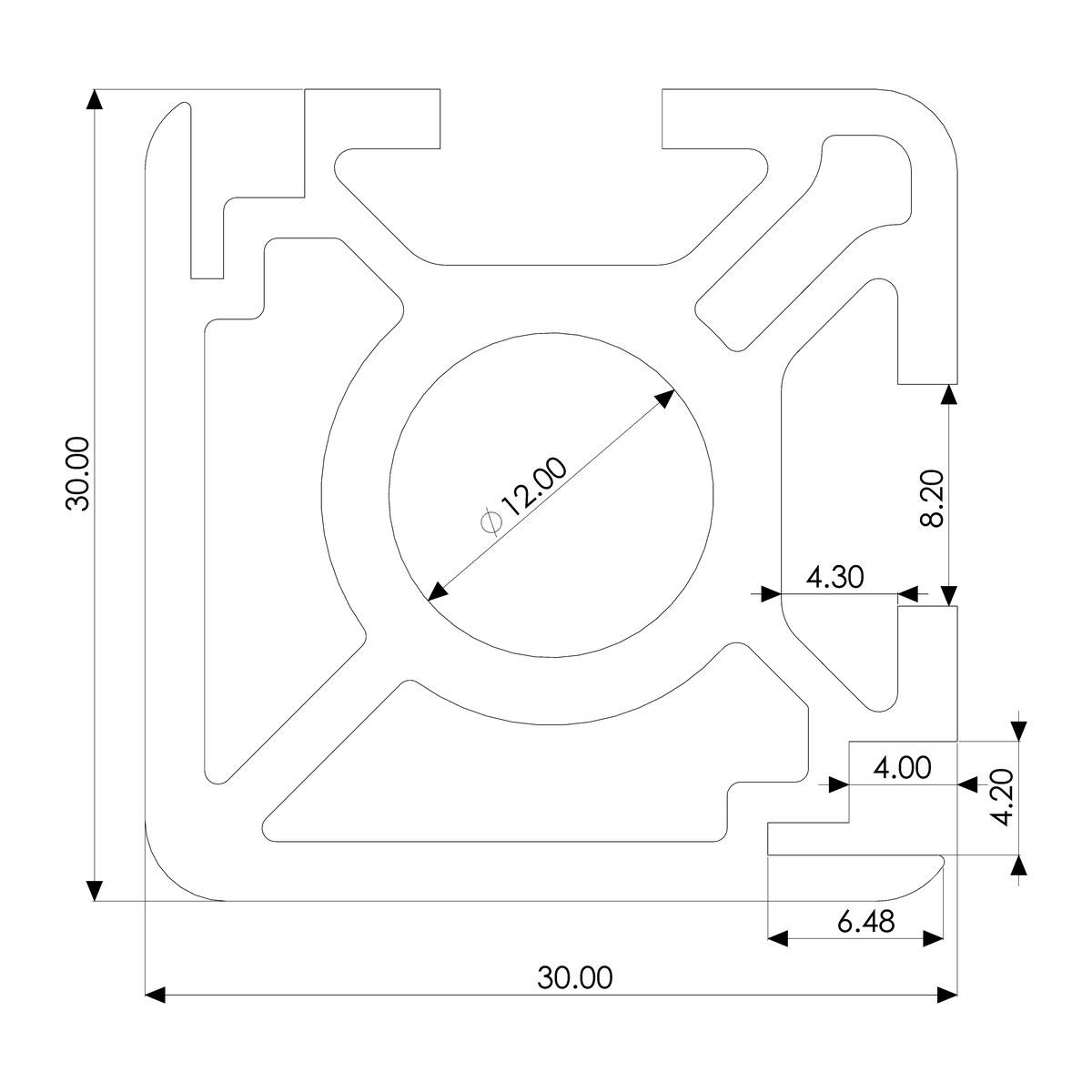

Profile 30×30, 2F, corner, heavy
Used in robust applications where aesthetics and a clean professional exterior is required, two corner slots provides a clean exterior for the edges of a frame while, additional slots are also featured in this profile allowing for panels to be inserted to create a near flush exterior between the extrusion and the panel while offering additional strength compared to the light profile version.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 3.7 | cm⁴ |
| Moment of Inertia | Iy | 3.2 | cm⁴ |
| Section Modulus | Wx | 2.4 | cm³ |
| Section Modulus | Wy | 2.4 | cm³ |
| Weight per Meter | G | 1.1 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
