PG30 Series

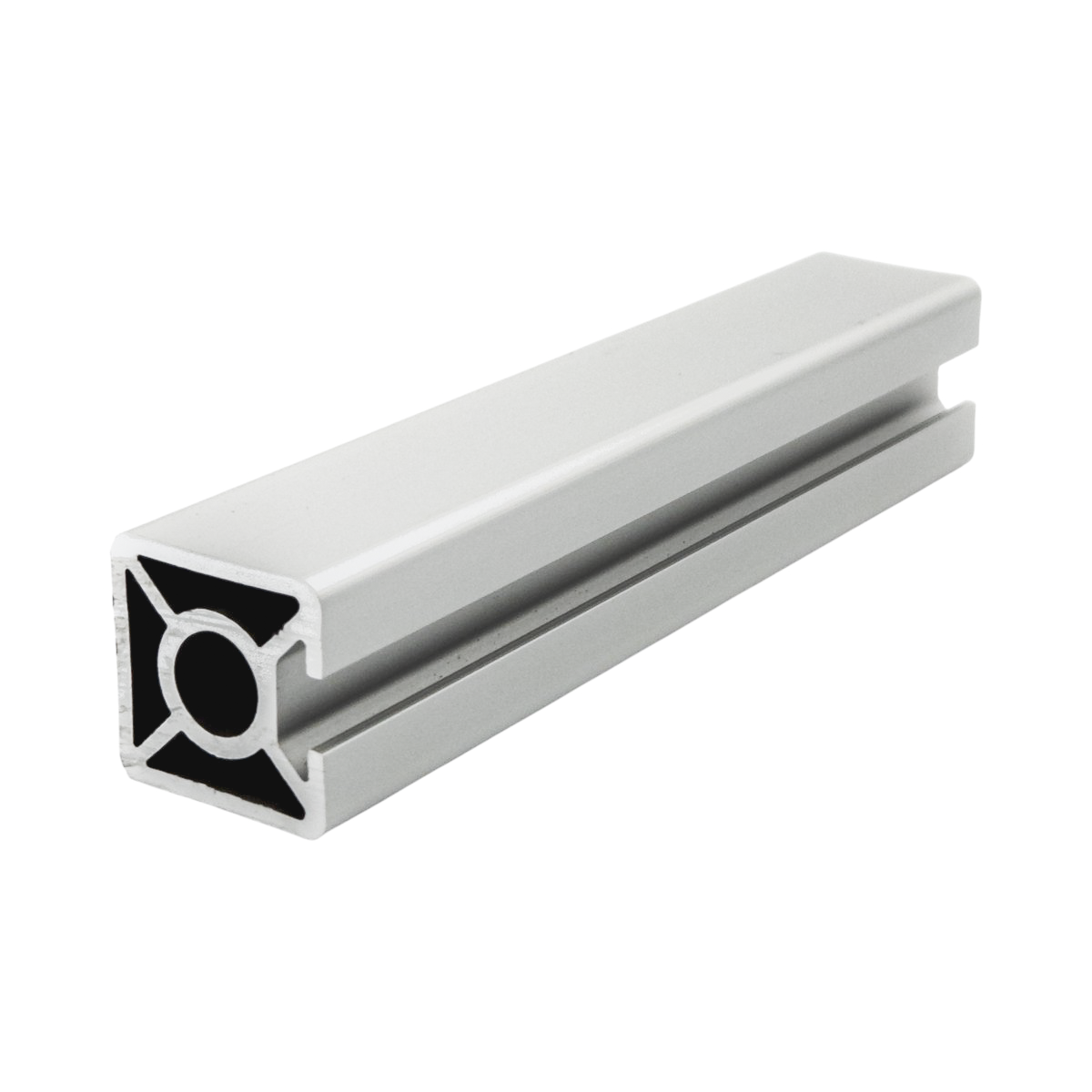

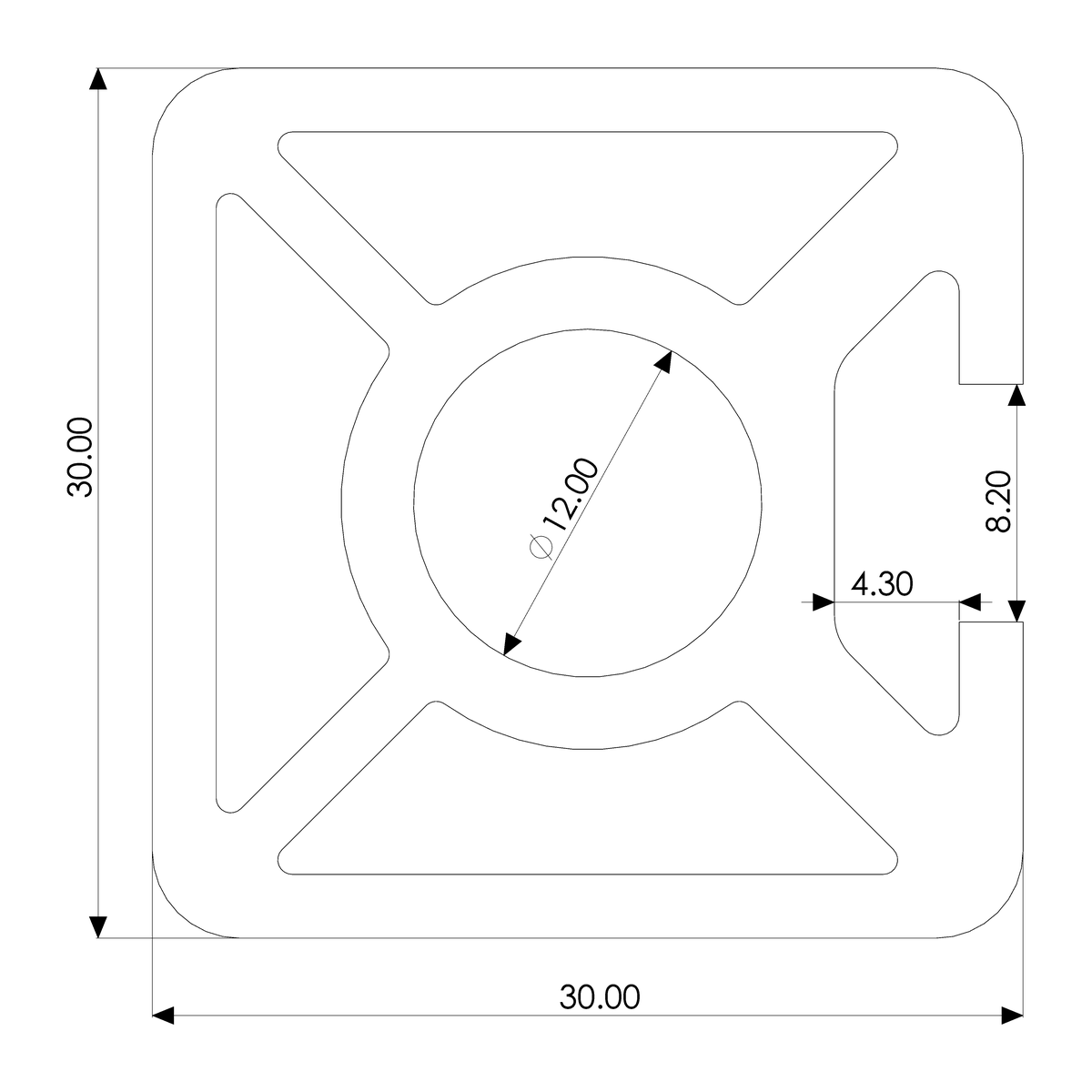

Profile 30×30, 1F, heavy, plain
Used in robust applications where aesthetics and a clean professional exterior is required, one slot provides limited options for framing while increasing rigidity and asethics while offering additional strength compared to the light profile version.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 4.3 | cm⁴ |
| Moment of Inertia | Iy | 4 | cm⁴ |
| Section Modulus | Wx | 2.9 | cm³ |
| Section Modulus | Wy | 2.6 | cm³ |
| Weight per Meter | G | 1.2 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
90 accessories work with this profile across 17 categories
Anchor, universal, incl. spring
Connector
Cross bushing PG 30
Bushing
T-Nut for subsequent insertion, w. spring F, M6
t-nut
Threaded insert M14/M8, L30
threaded insert
Cover cap, 30x30, Ø12, black
end caps
Adust tilt-foot spindle steel, M14 x 66
foot
Hinge 48 fixed, A 17.5
hinge
Mounting block screw type M6, black
mounting block
Angle GD-Zn, 28x28, natural
angle bracket
Connection plate 30x60
Connection Plate
Handle PA, with bore Ø8.5 L151
handle
Latch lock compact (slam),face mount, keyed alike
locks and latches
