PG20 Series

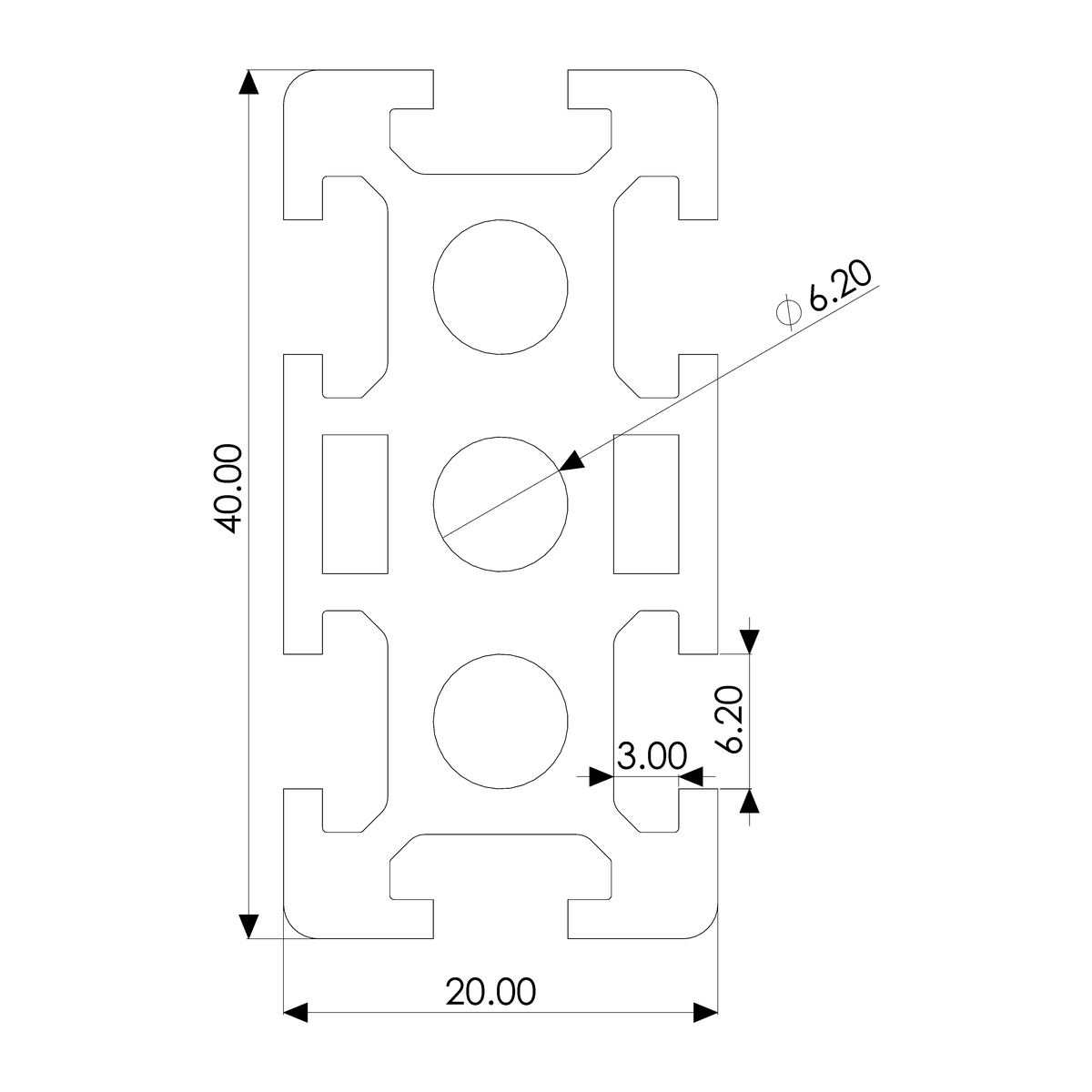

Profile 20×40 6H, heavy, plain
Used in light duty compact frames where space, functionality and cost are critical, extremely versatile for a wide range of light applications and additional strength compared to the light version of this 20x20 profile.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 6.4 | cm⁴ |
| Moment of Inertia | Iy | 1.7 | cm⁴ |
| Section Modulus | Wx | 3.2 | cm³ |
| Section Modulus | Wy | 1.7 | cm³ |
| Weight per Meter | G | 1.3 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
37 accessories work with this profile across 8 categories
