PG20 Series

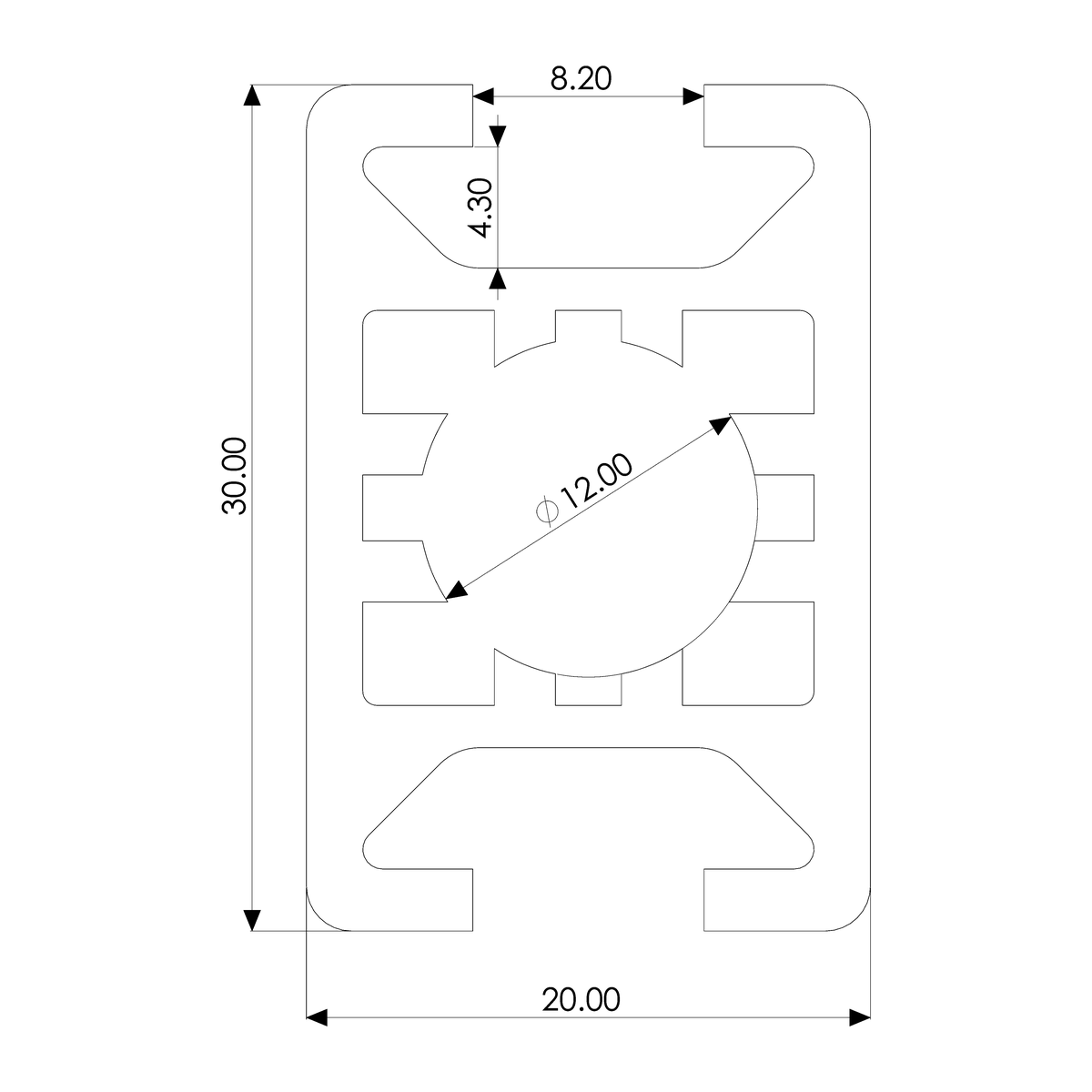

Profile 20×30 2F, light, plain
Used in light duty applications where aesthetics are important, provides two open slots, which allows for more versatile applications while striking the balance between good strength, rigidity at a reduced cost.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 2.2 | cm⁴ |
| Moment of Inertia | Iy | 1.5 | cm⁴ |
| Section Modulus | Wx | 1.5 | cm³ |
| Section Modulus | Wy | 1.5 | cm³ |
| Weight per Meter | G | 0.74 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
56 accessories work with this profile across 12 categories
T-Nut for subsequent insertion, w. spring F, M6
t-nut
Mounting block screw type M6, black
mounting block
Anchor, universal
Connector
Cross bushing PG 20, H
Bushing
Cover cap, 20x30, Ø12, black
end caps
Handle PA, with bore Ø8.5 L151
handle
Latch lock compact (slam),face mount, keyed alike
locks and latches
Cover profile PVC, F/ E, grey
cover profile
Grey Rubber Wedge 4.5mm Panel
panel wedge
Swivel castor stop fix with bolt hole fitting, Ø75
castor
Cross-block for cable binder F
cable binder
T-Bolt F, M6x20
t-bolt
