PG20 Series

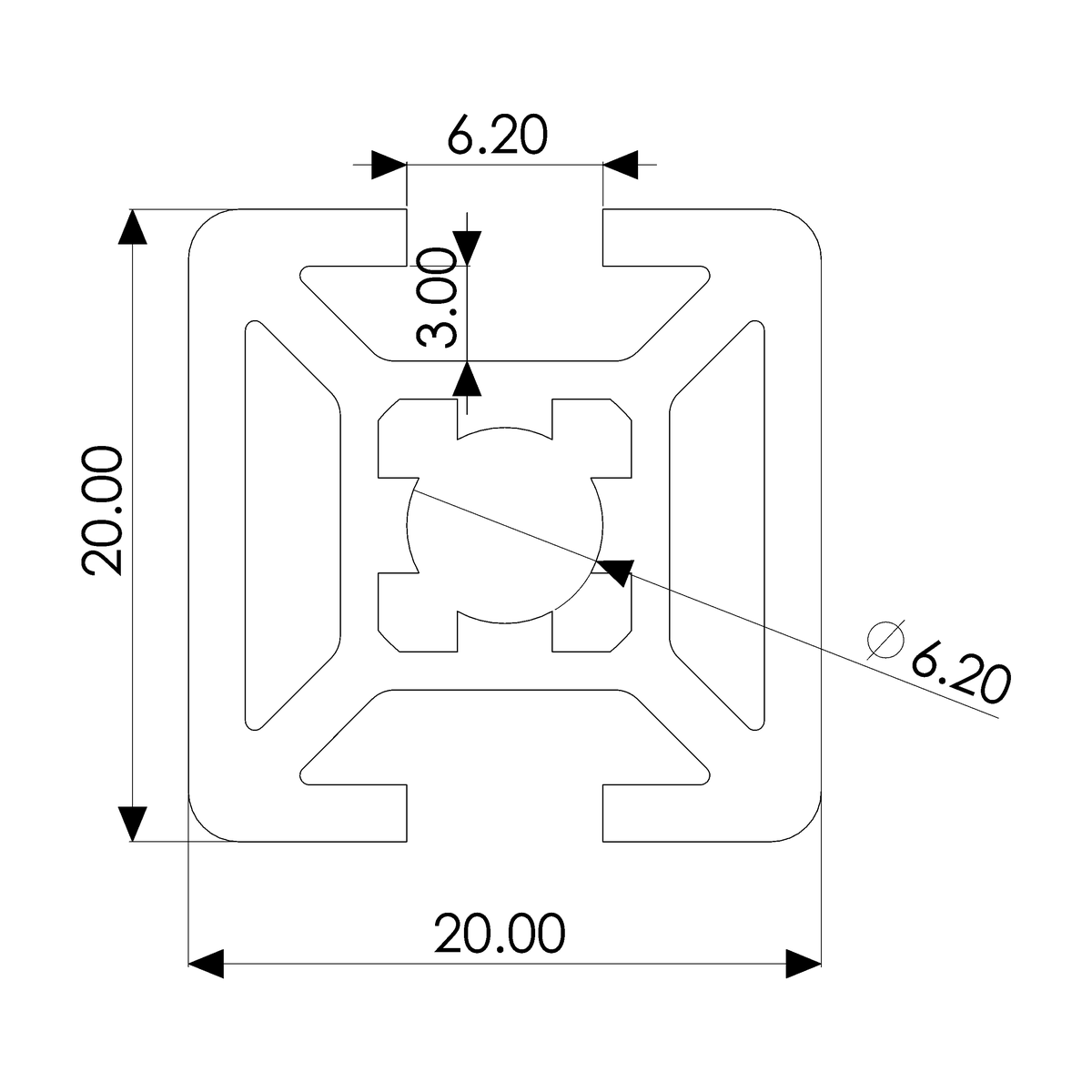

Profile 20×20 2H, light, plain
Used in light duty frames where aesthetics are important, provides a smooth exterior with two opposing open slots often used as cross members in frames.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 1 | cm⁴ |
| Moment of Inertia | Iy | 0.8 | cm⁴ |
| Section Modulus | Wx | 1 | cm³ |
| Section Modulus | Wy | 0.8 | cm³ |
| Weight per Meter | G | 0.58 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
37 accessories work with this profile across 8 categories
Mounting block screw type M6, black
mounting block
Anchor, universal
Connector
Cross bushing PG 20, H
Bushing
Threaded plate subsequ. insertion H, M5
t-nut
Cover cap, 20x20, Ø6, black
end caps
Handle PA, with bore Ø8.5 L151
handle
Latch lock compact (slam),face mount, keyed alike
locks and latches
Swivel castor stop fix with bolt hole fitting, Ø75
castor
Mounting block screw-type, M5, black
mounting block
Anchor, oblique 90 deg.-hinge
Connector
Threaded plate subsequ. insertion H, M4
t-nut
Handle PA, 135, with screw covers
handle
