PG20 Series

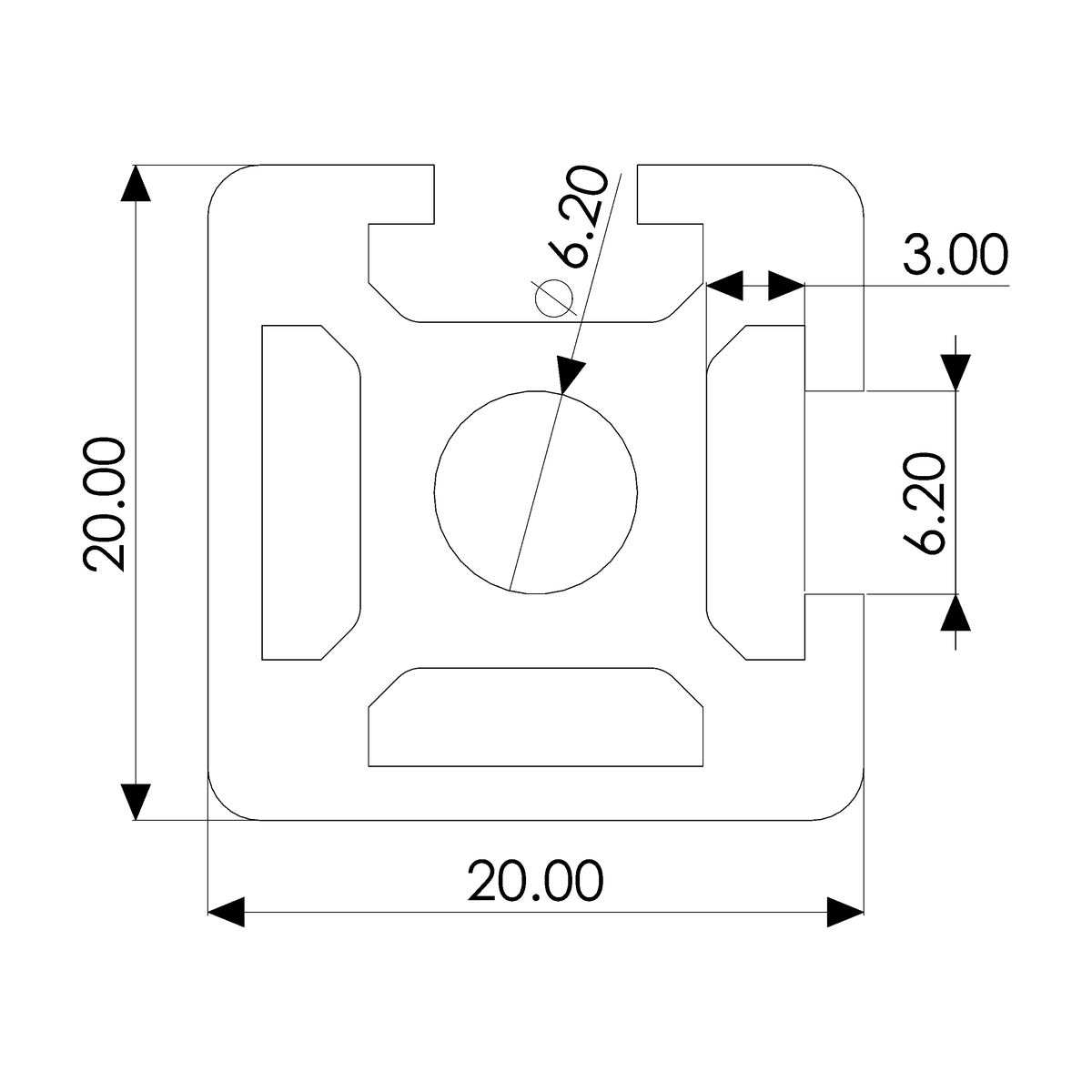

Profile 20×20, 2H, corner, heavy, plain
Used in light duty frames where aesthetics are important, provides a clean exterior for outer edges of a frame and additional strength compared to the light version of this 20x20 profile.
Machining Options Available
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 1 | cm⁴ |
| Moment of Inertia | Iy | 1 | cm⁴ |
| Section Modulus | Wx | 0.9 | cm³ |
| Section Modulus | Wy | 0.9 | cm³ |
| Weight per Meter | G | 0.68 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
