PG20 Series

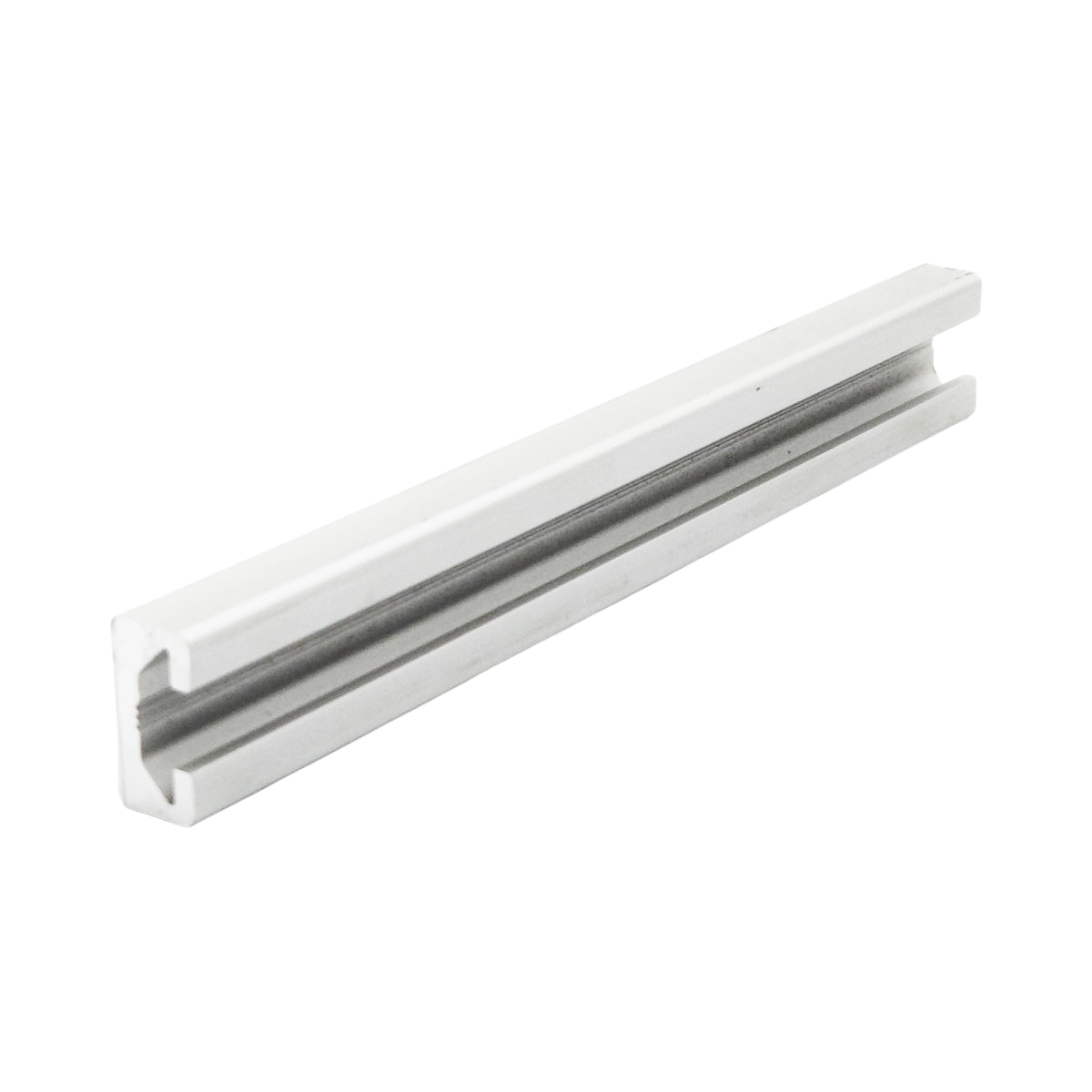

Profile 20×10 1F, light, plain
Used in light weight, space conscious applications, smooth exterior with access to one open slot.
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 0.1 | cm⁴ |
| Moment of Inertia | Iy | 0.6 | cm⁴ |
| Section Modulus | Wx | 0.2 | cm³ |
| Section Modulus | Wy | 0.5 | cm³ |
| Weight per Meter | G | 0.35 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
53 accessories work with this profile across 11 categories

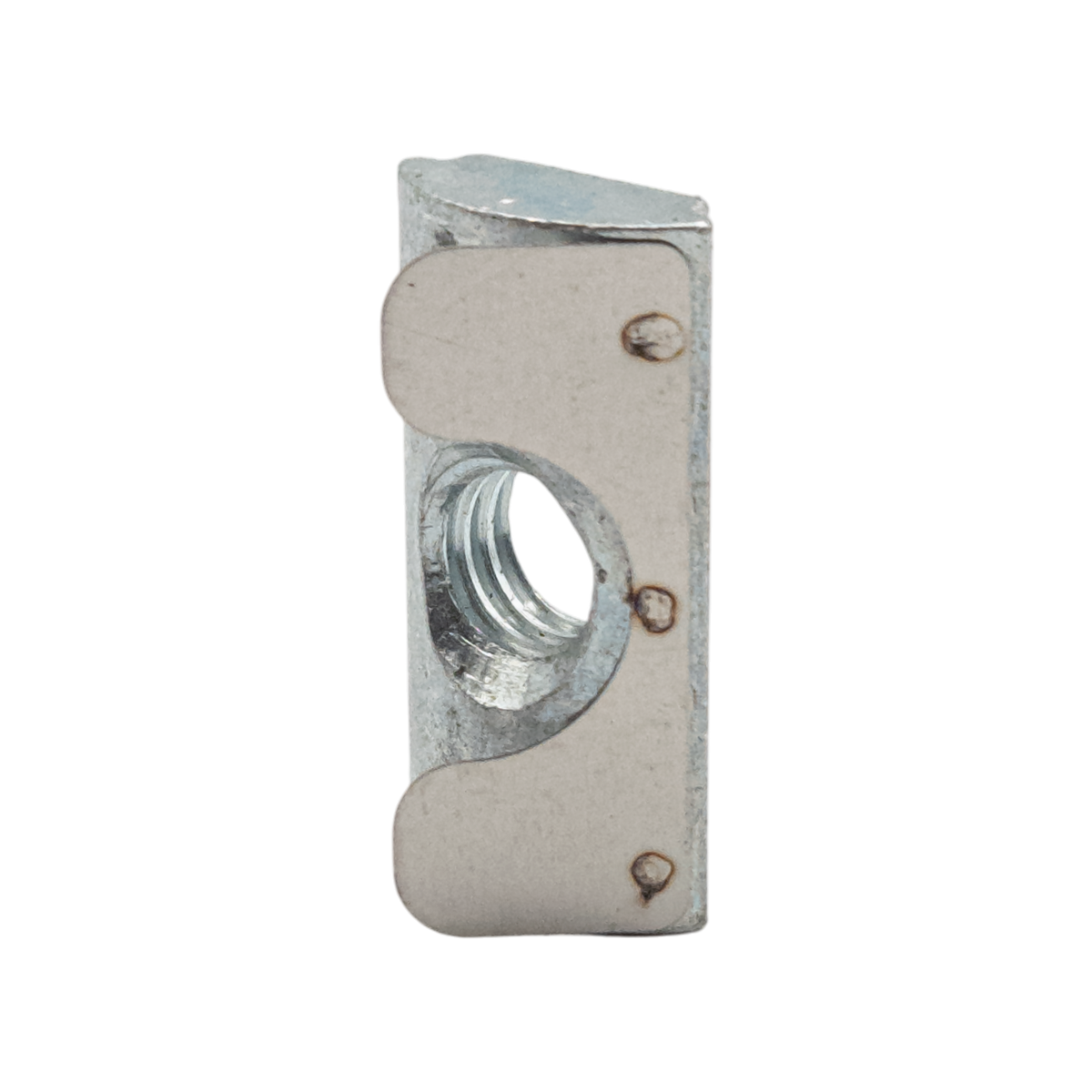

T-Nut for subsequent insertion, w. spring F, M6
t-nut
Mounting block screw type M6, black
mounting block

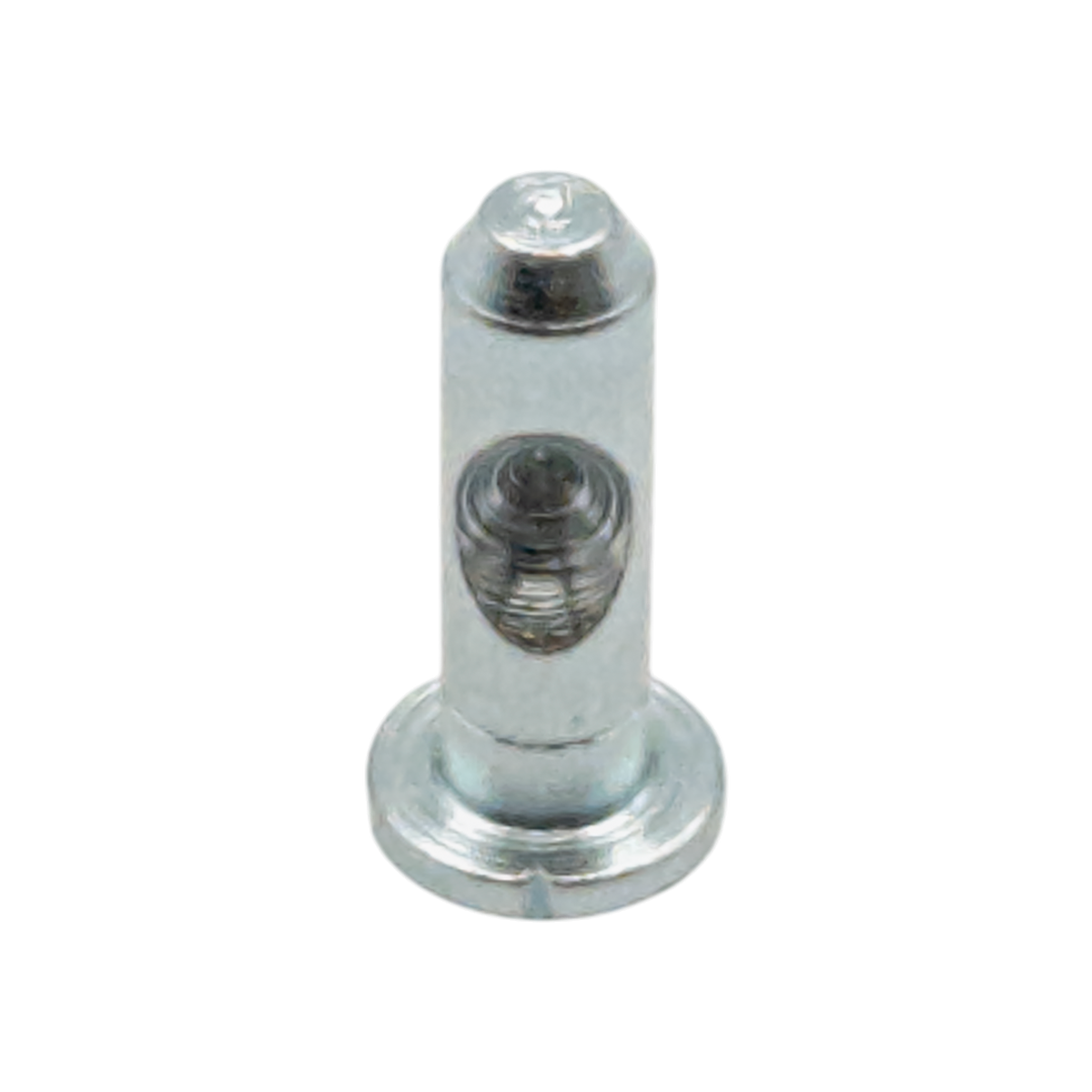

Anchor, universal
Connector

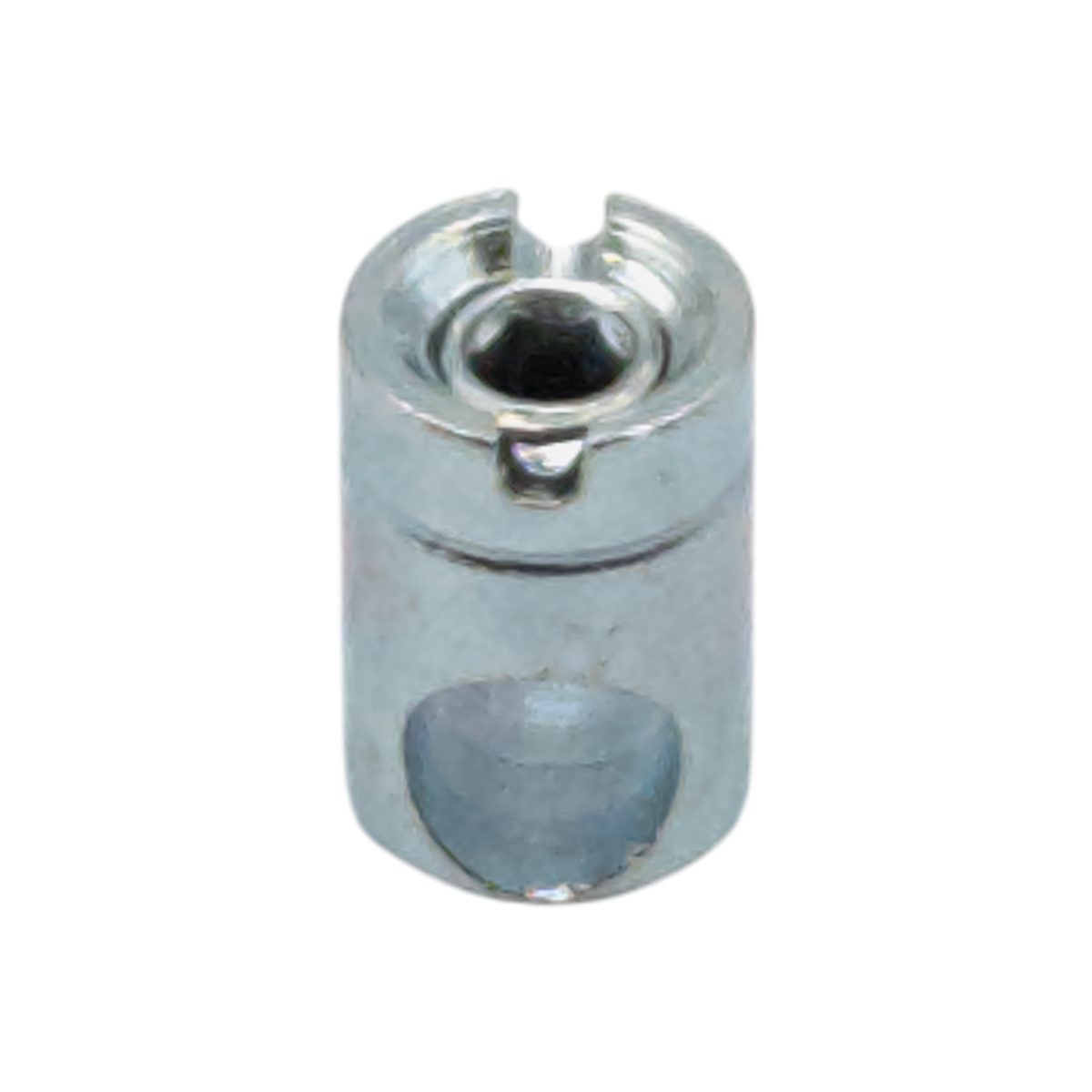

Cross bushing PG 20, H
Bushing

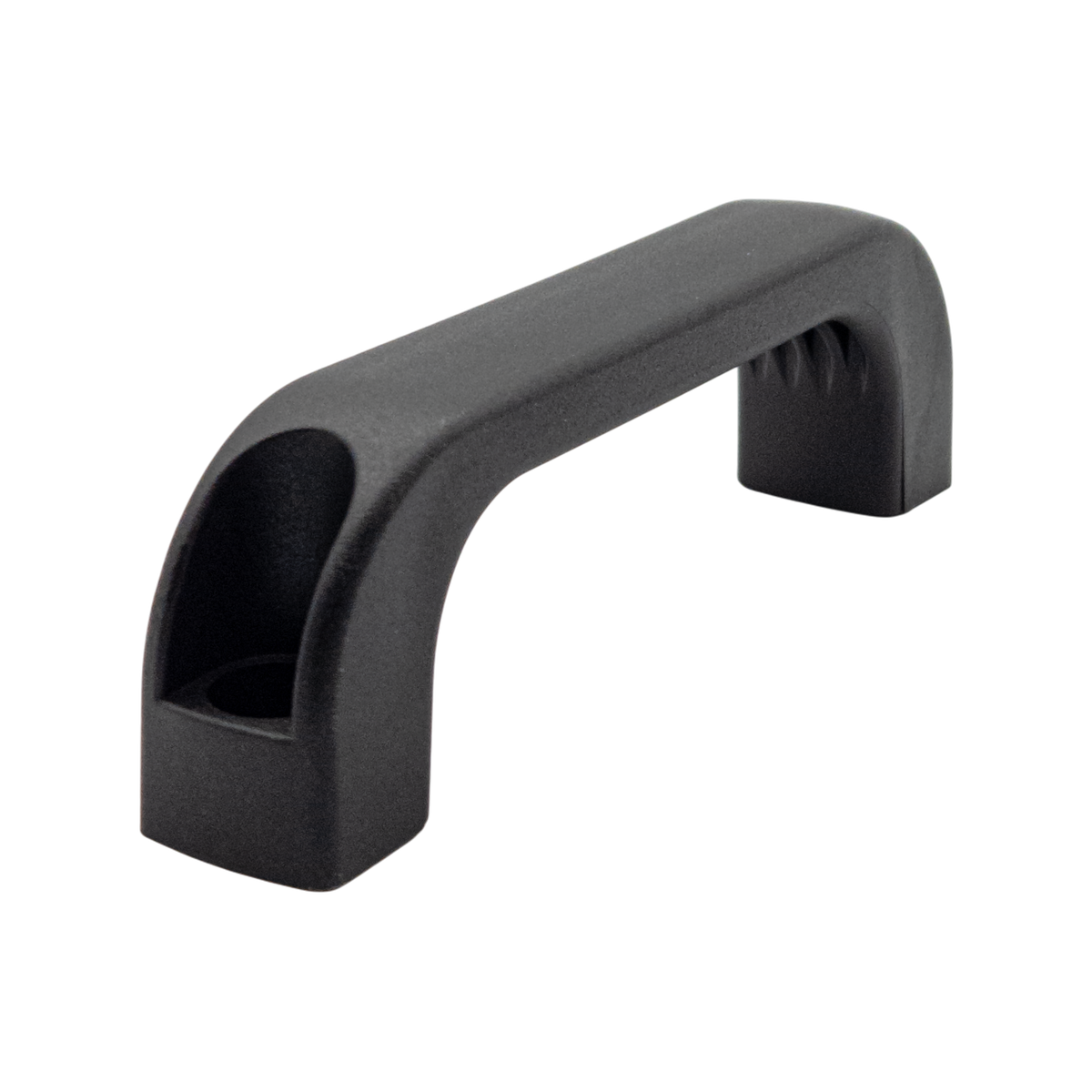

Handle PA, with bore Ø8.5 L151
handle
Latch lock compact (slam),face mount, keyed alike
locks and latches
Cover profile PVC, F/ E, grey
cover profile
Grey Rubber Wedge 4.5mm Panel
panel wedge
Swivel castor stop fix with bolt hole fitting, Ø75
castor

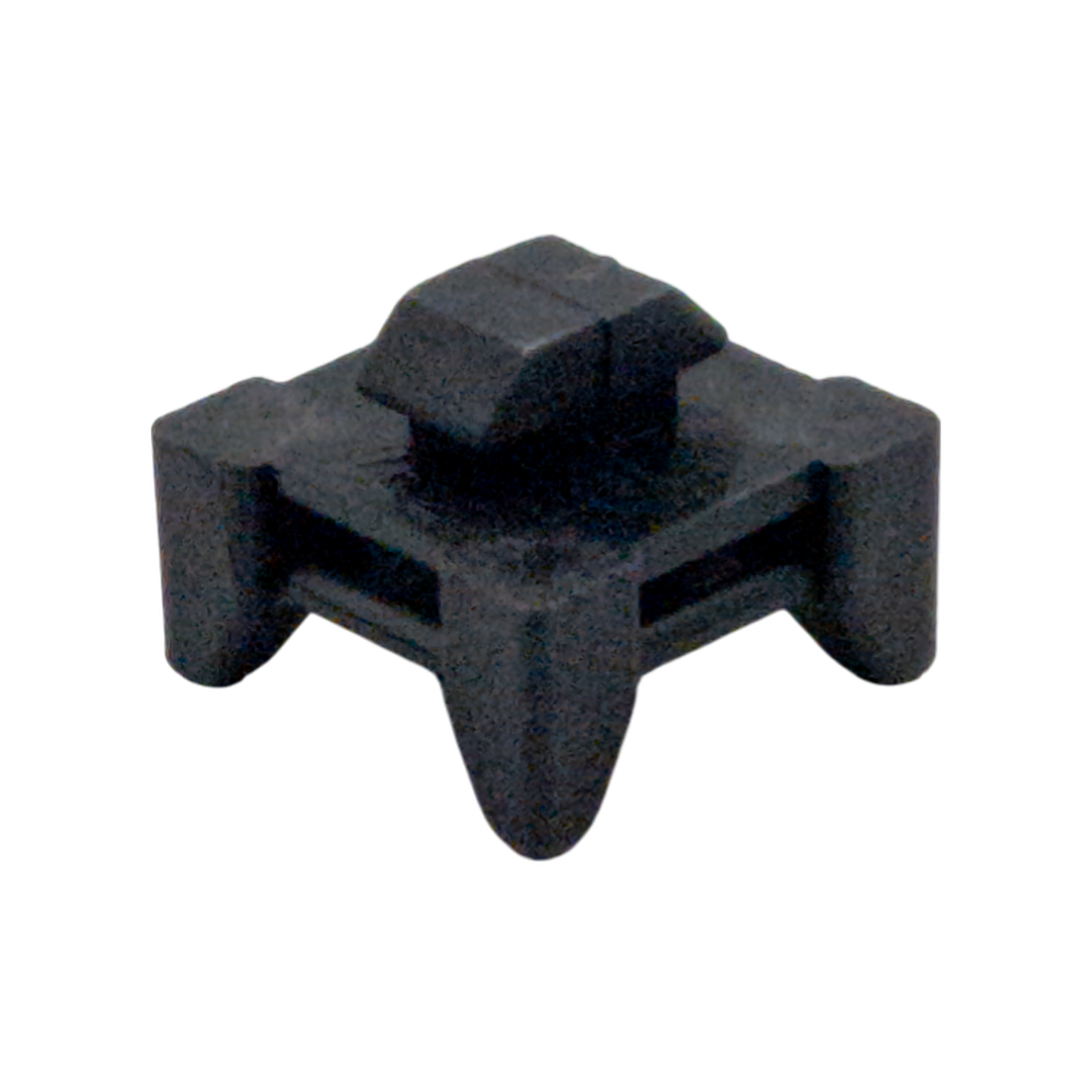

Cross-block for cable binder F
cable binder
T-Bolt F, M6x20
t-bolt
T-Nut for subsequent insertion, w. spring F, M5
t-nut
You May Also Need
Profile 20x20

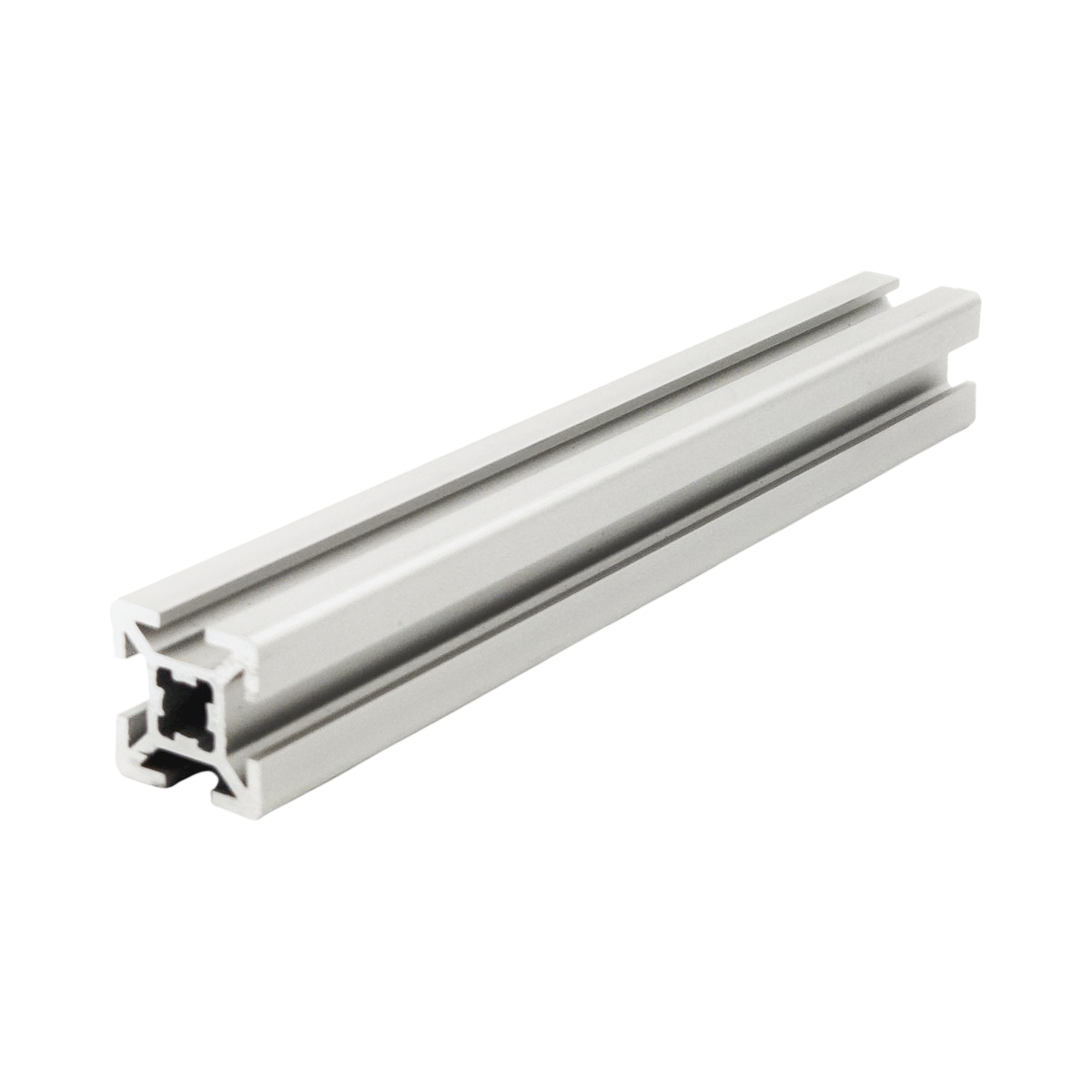

H-slotProfile · 1.10.020020.43LP
Profile 20x20

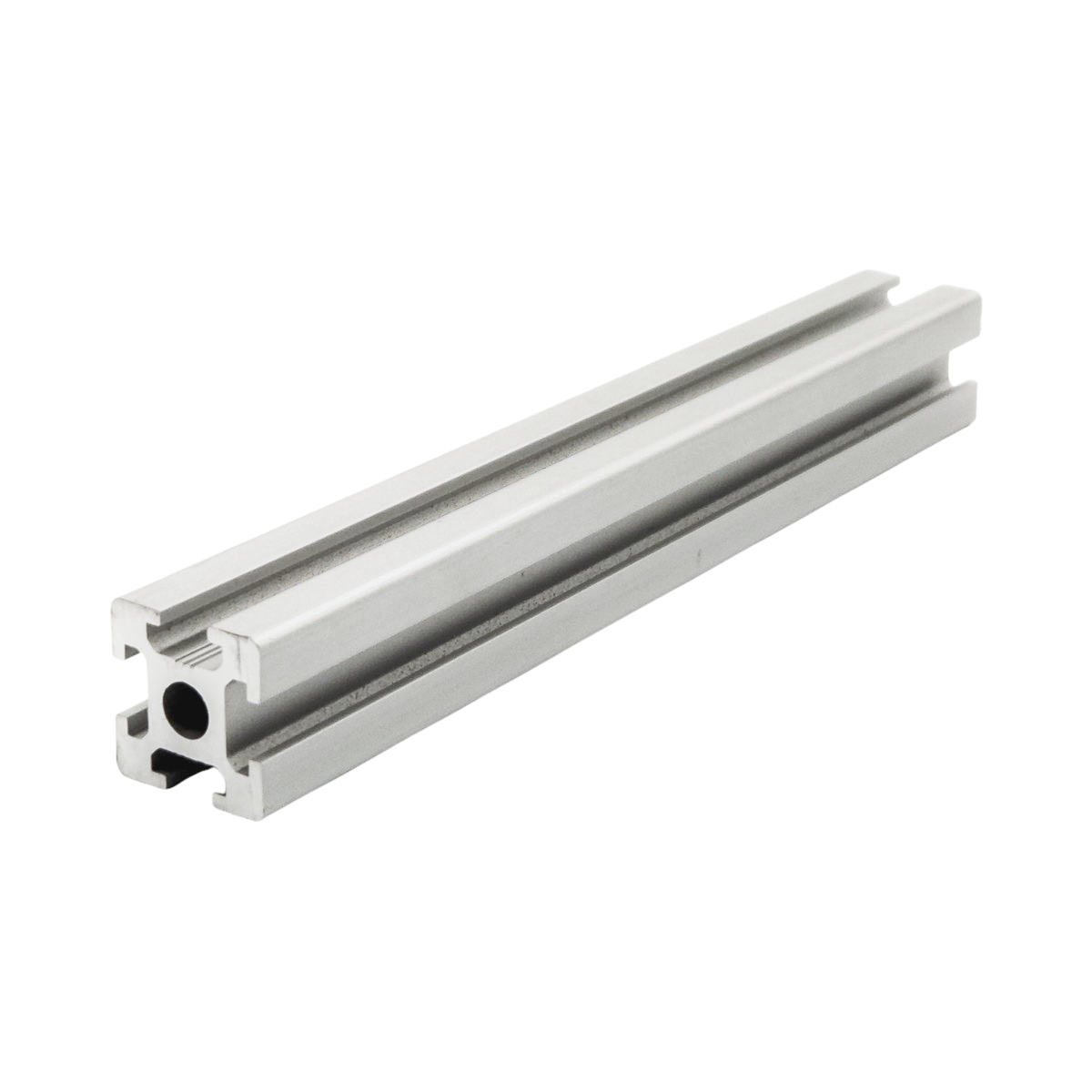

H-slotProfile · 1.10.020020.43SP
Profile 20x20

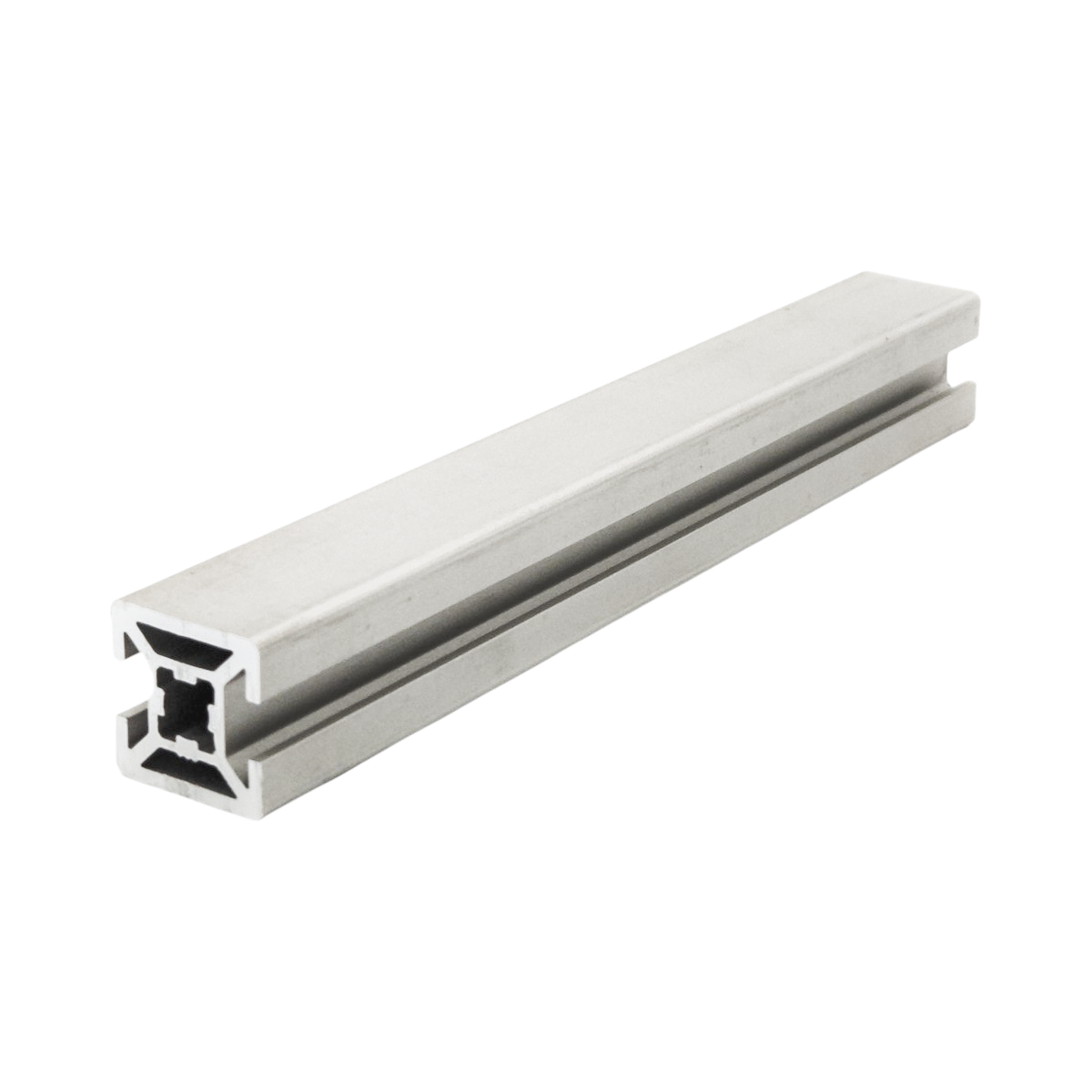

H-slotProfile · 1.10.020020.23LP
Profile 20x20
H-slotProfile · 1.10.020020.33SP
Profile 20x20

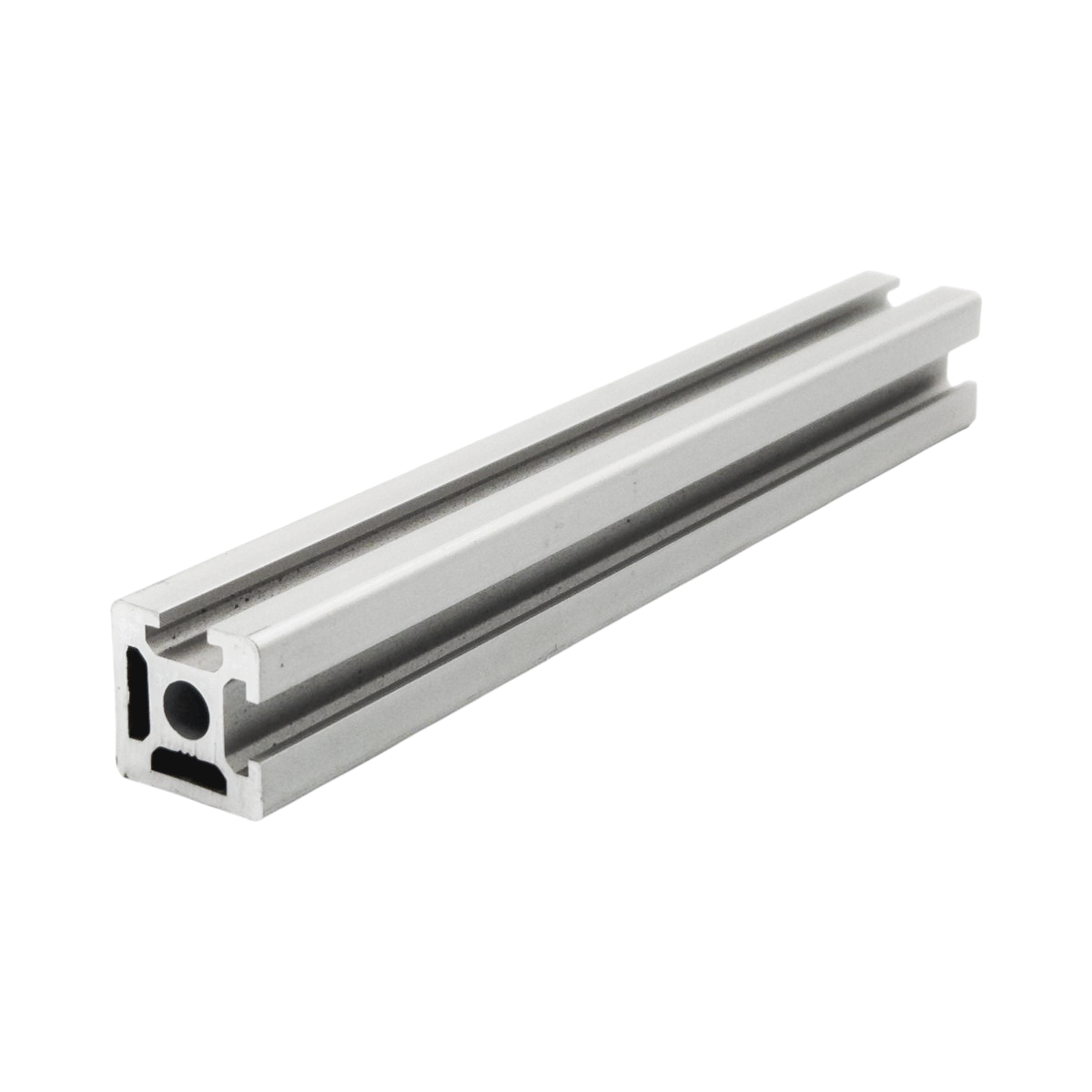

H-slotProfile · 1.10.020020.22SP
Profile 20x20
H-slotProfile · 1.10.020020.21SP
Profile 16x40
F-slotProfile · 1.10.016040.14LP
Profile 20x30

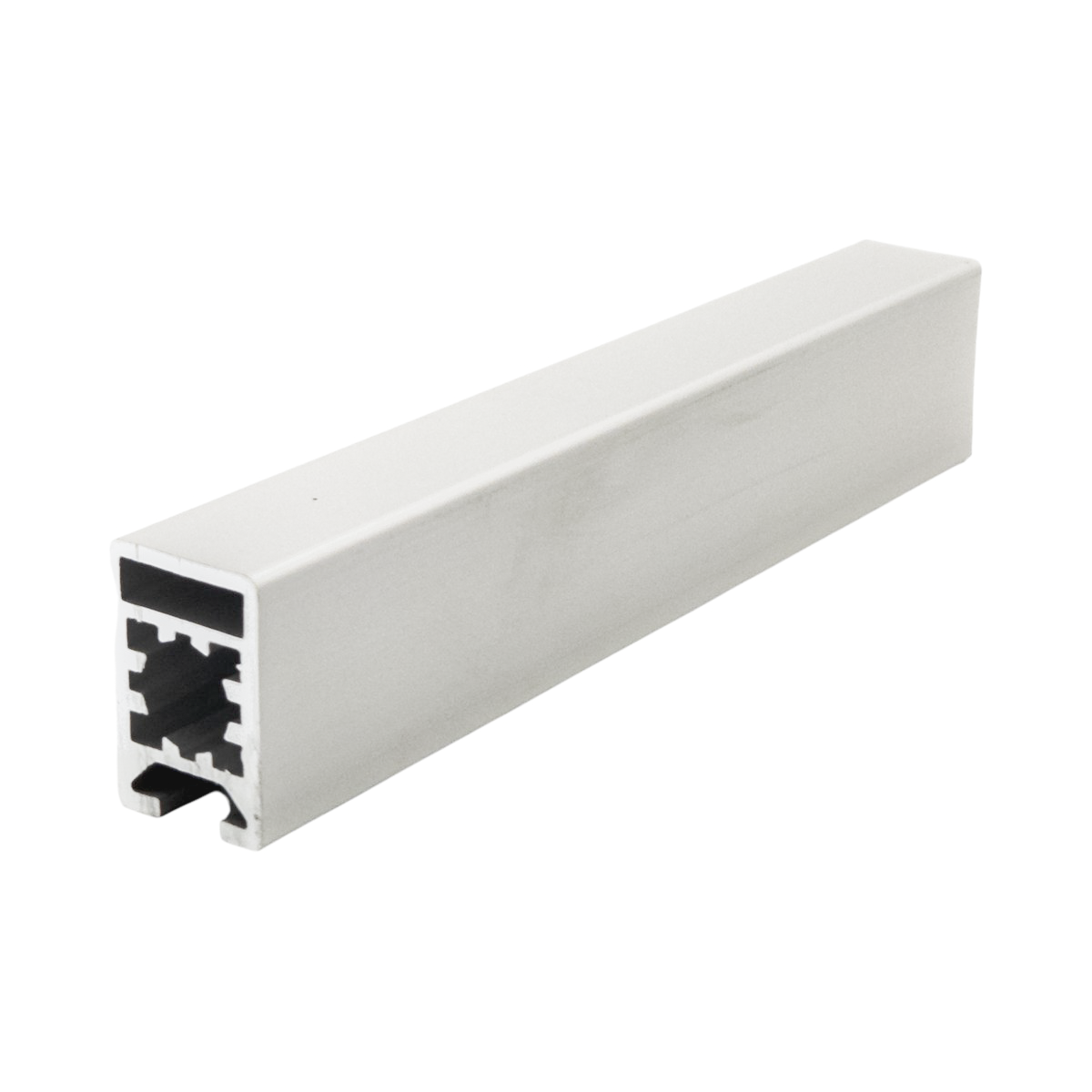

F-slotProfile · 1.11.020030.14LP
