PG16 Series

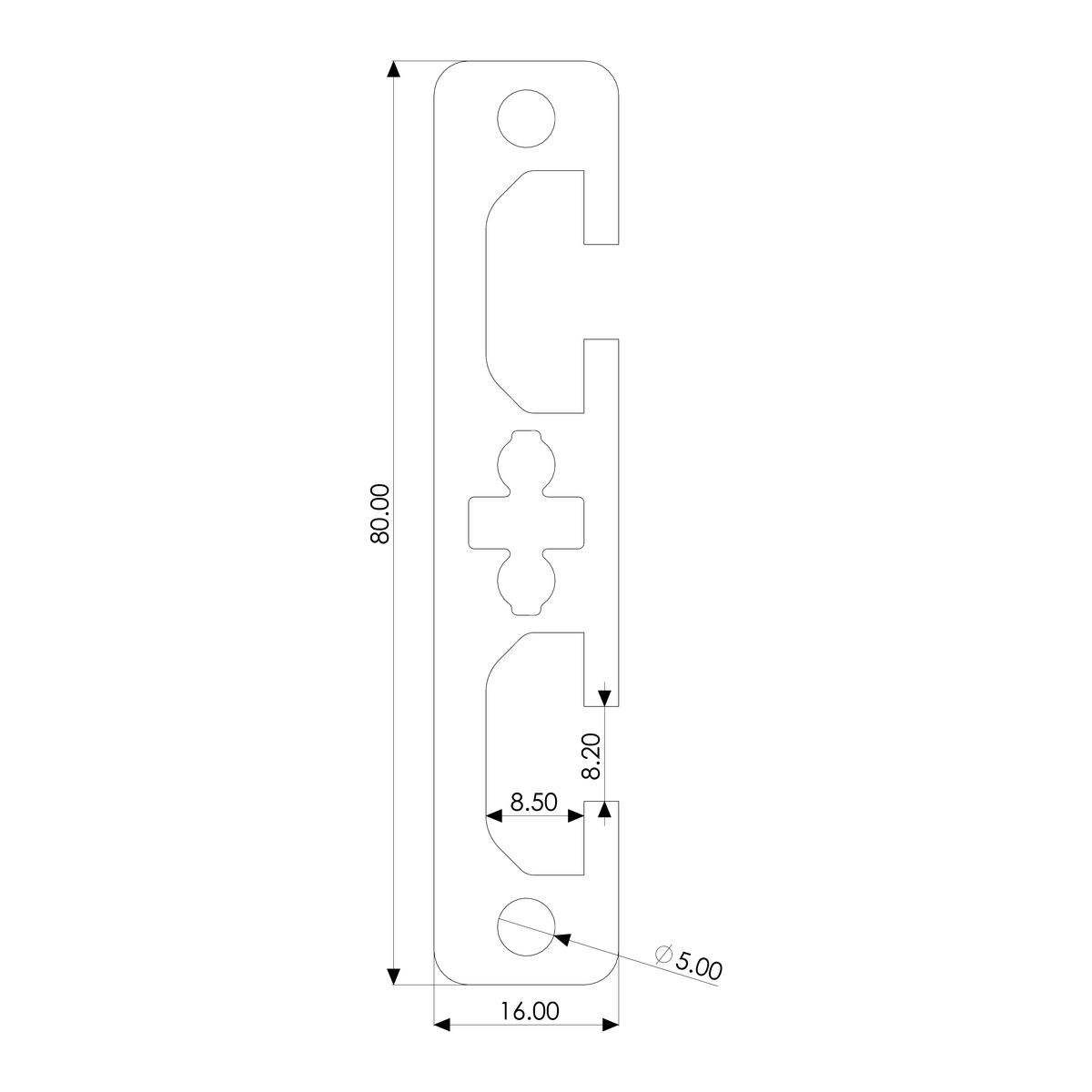

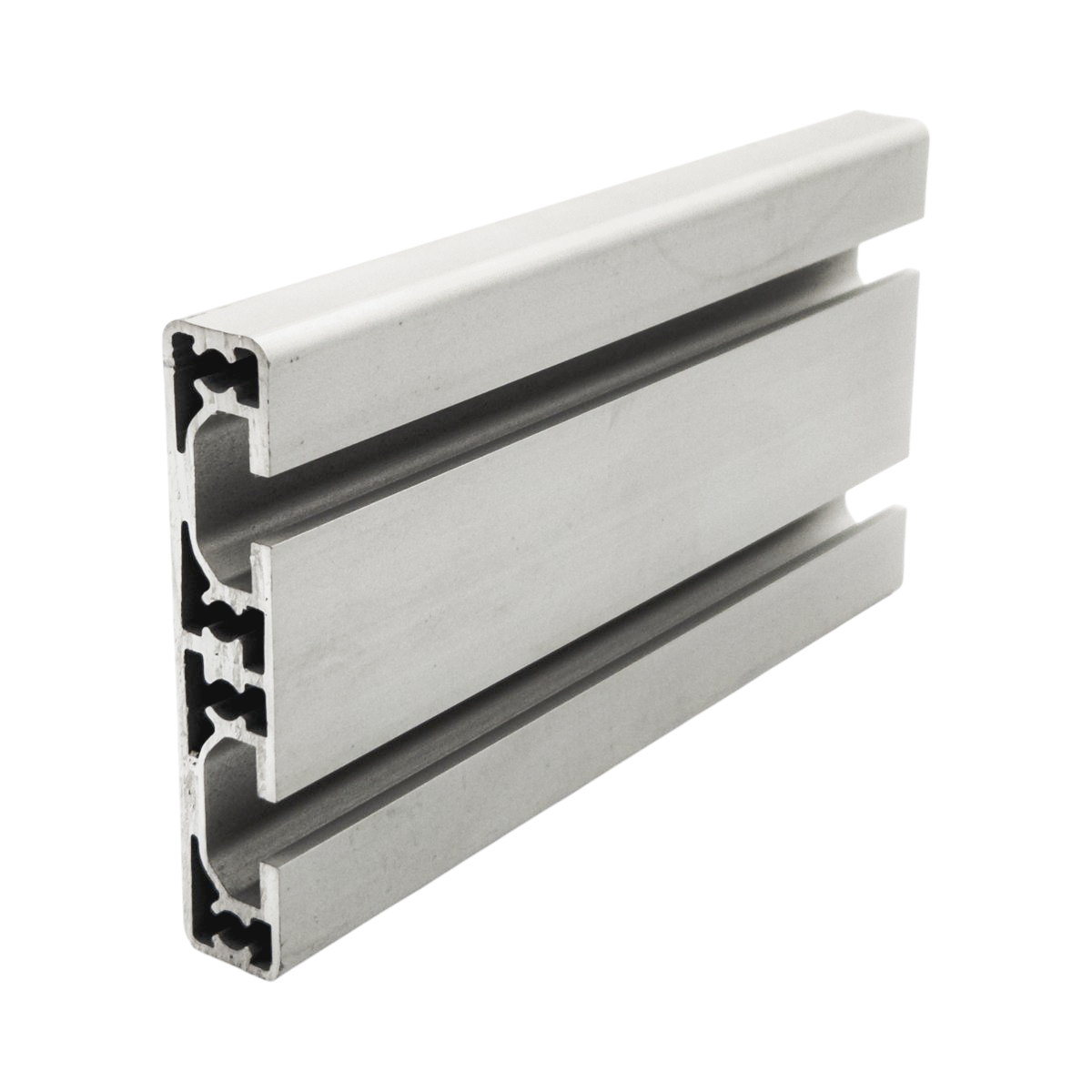

Profile 16×80 2E, heavy, plain
E-Slot
SKU1.09.016080.24SP
3D ModelSTEP(200.9 KB)—
Used as a rail to mount components, or a guide for sliding components.
50mm6000mm
mm
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 48.3 | cm⁴ |
| Moment of Inertia | Iy | 2.2 | cm⁴ |
| Section Modulus | Wx | 12 | cm³ |
| Section Modulus | Wy | 2.2 | cm³ |
| Weight per Meter | G | 2.11 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
47 accessories work with this profile across 10 categories
Best Seller

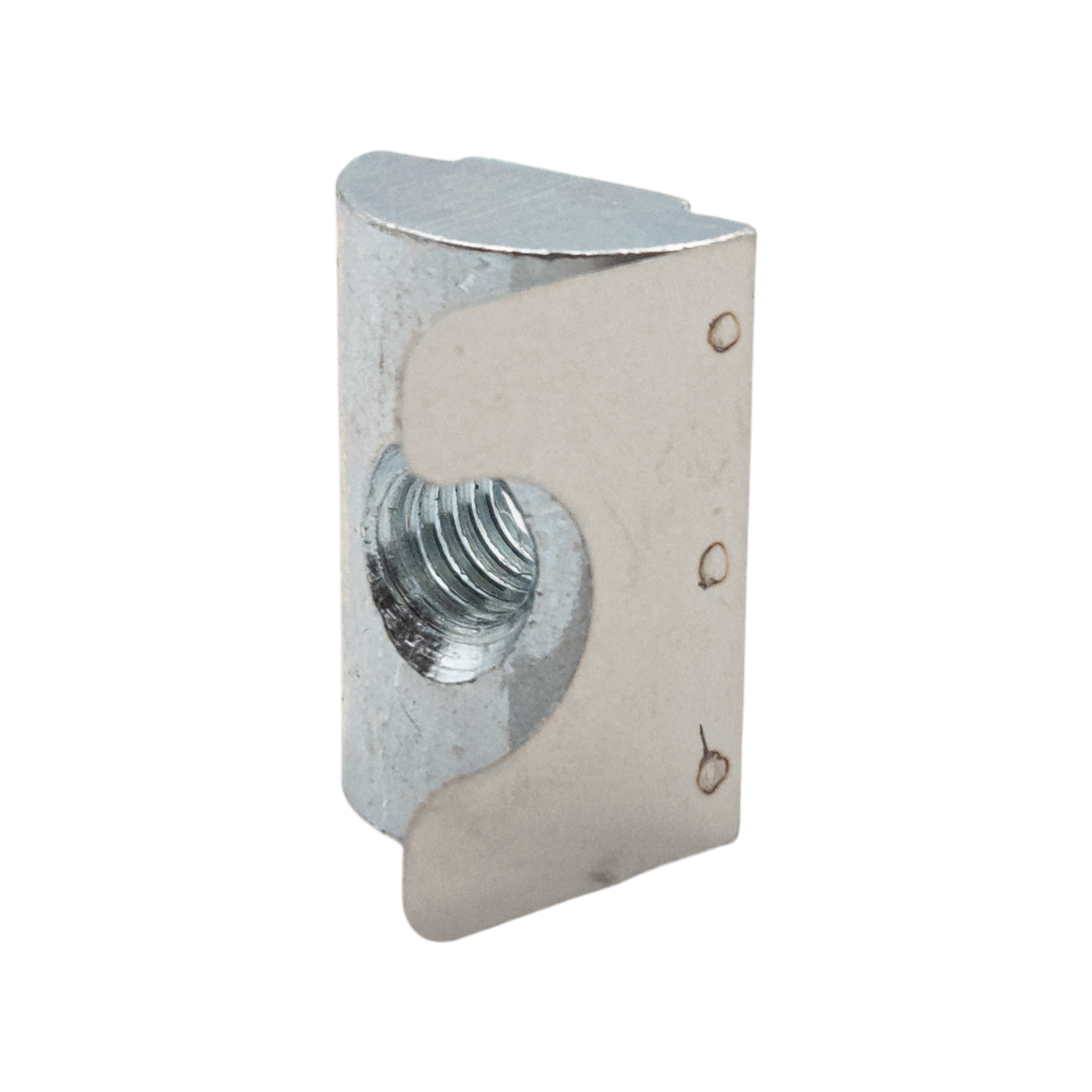

T-Nut for subsequent insertion, w. spring E, M8
t-nut
Best Seller
Mounting block screw type M6, black
mounting block
Cross connector E4
Connector
Handle PA, with bore Ø8.5 L151
handle
Latch lock compact (slam),face mount, keyed alike
locks and latches

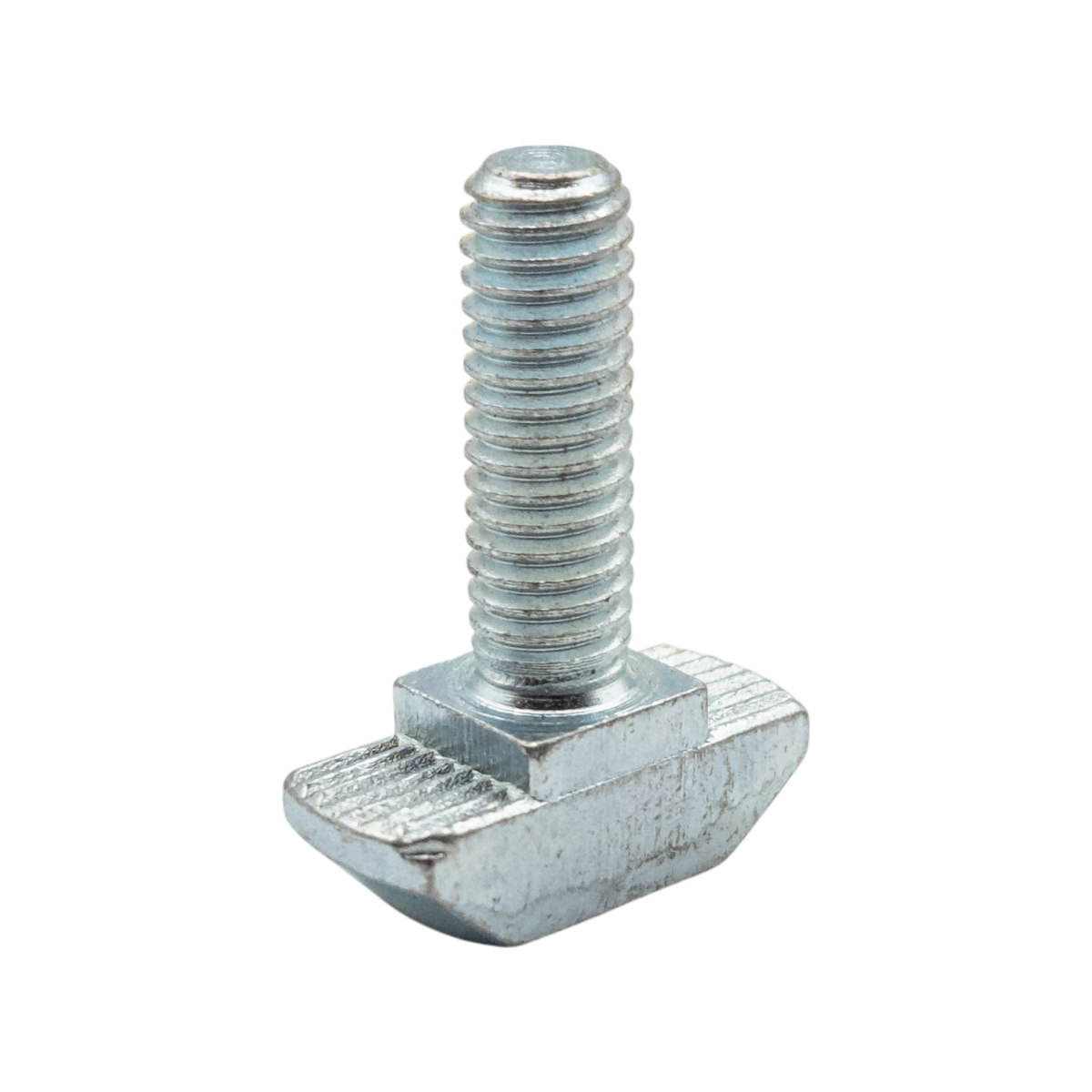

T-Bolt E, M6x20
t-bolt
Cover profile PVC, F/ E, grey
cover profile
Grey Rubber Wedge 4.5mm Panel
panel wedge
Combination profile PP, E, 1-4,5,black
panel frame

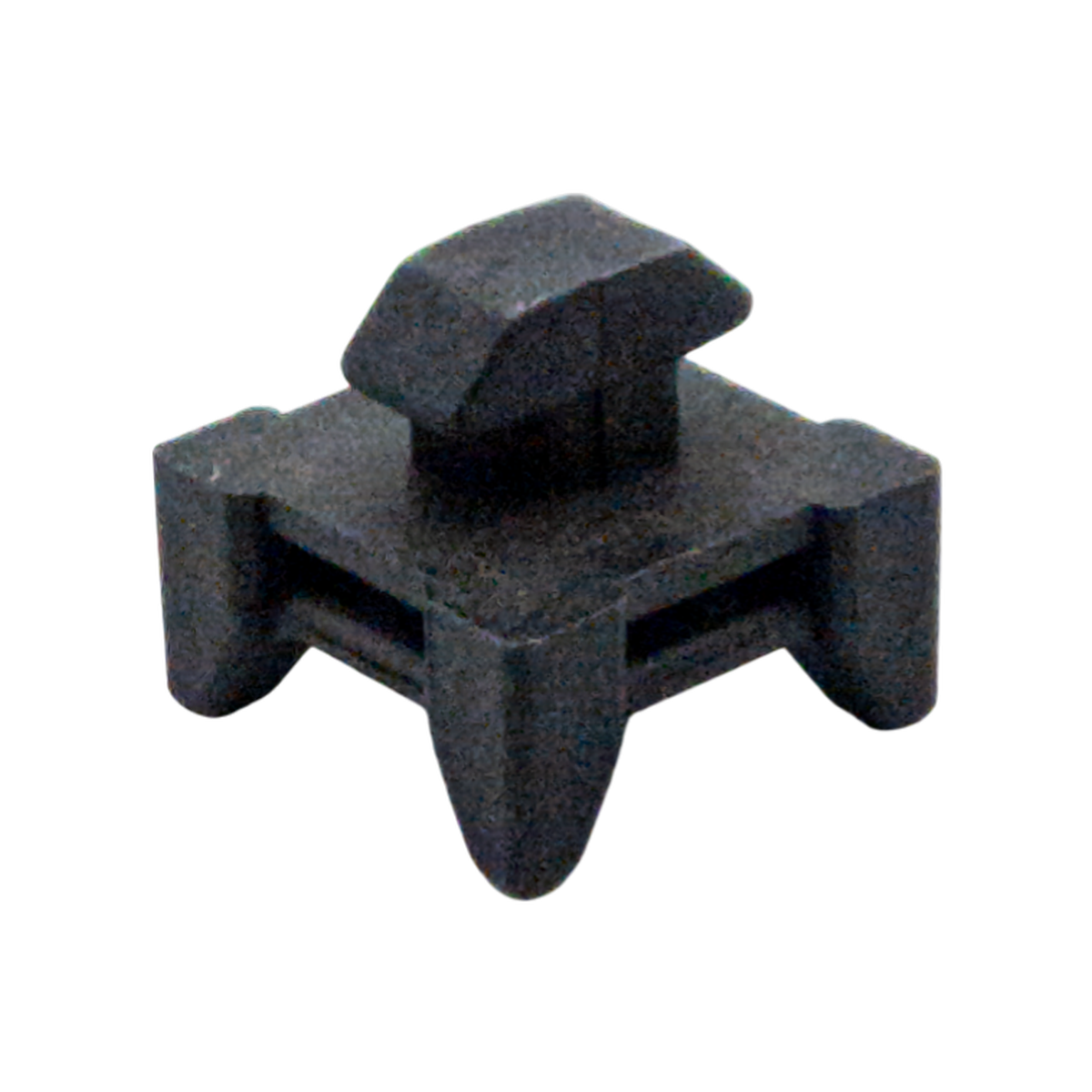

Cross-block for cable binder E4
