PG16 Series

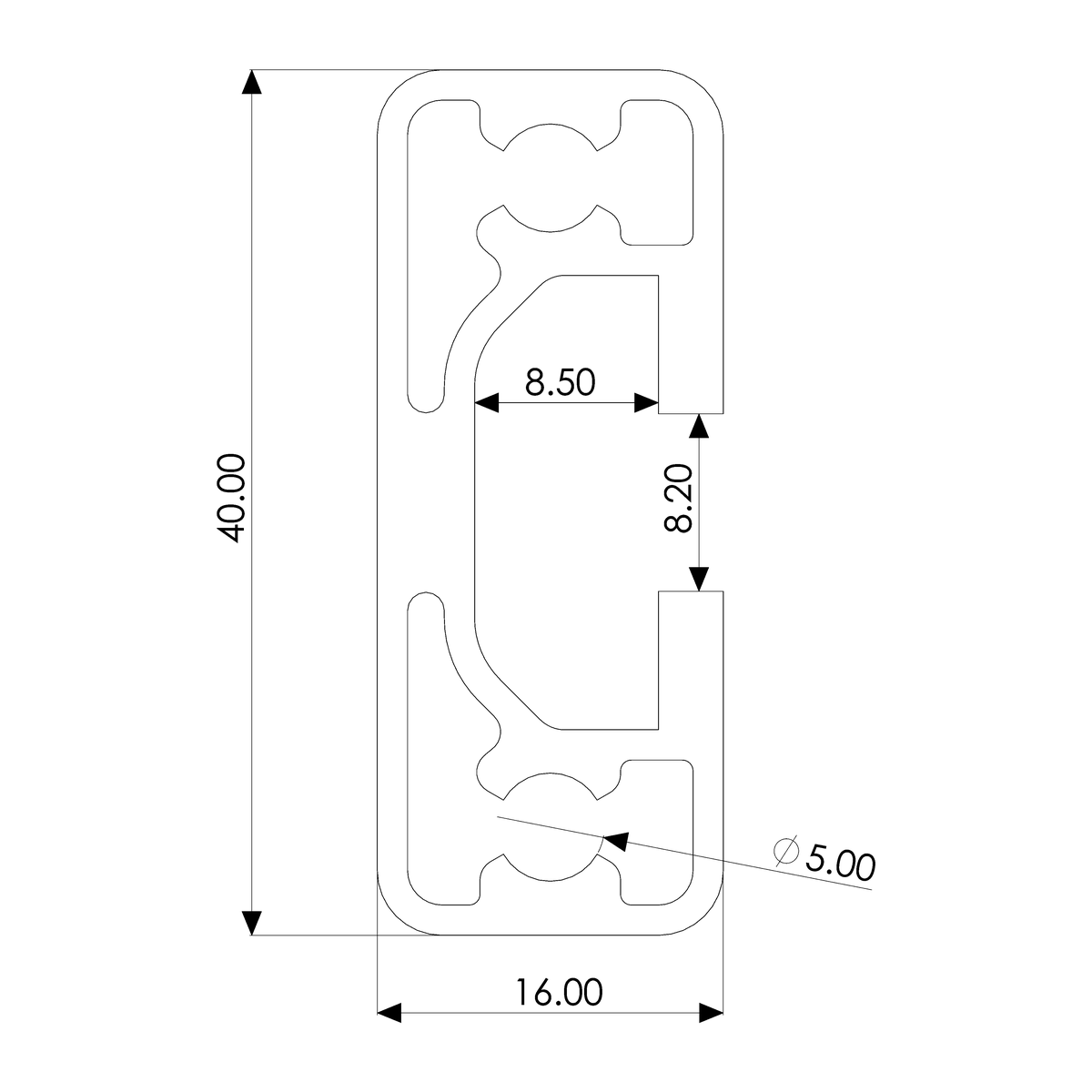

Profile 16×40 1E, light, plain
E-Slot
SKU1.09.016040.14LP
3D ModelSTEP(213.8 KB)—
Used as a rail to mount components, or a guide for sliding components.
50mm6000mm
mm
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 4.3 | cm⁴ |
| Moment of Inertia | Iy | 0.8 | cm⁴ |
| Section Modulus | Wx | 2.2 | cm³ |
| Section Modulus | Wy | 0.8 | cm³ |
| Weight per Meter | G | 0.75 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
