PG16 Series

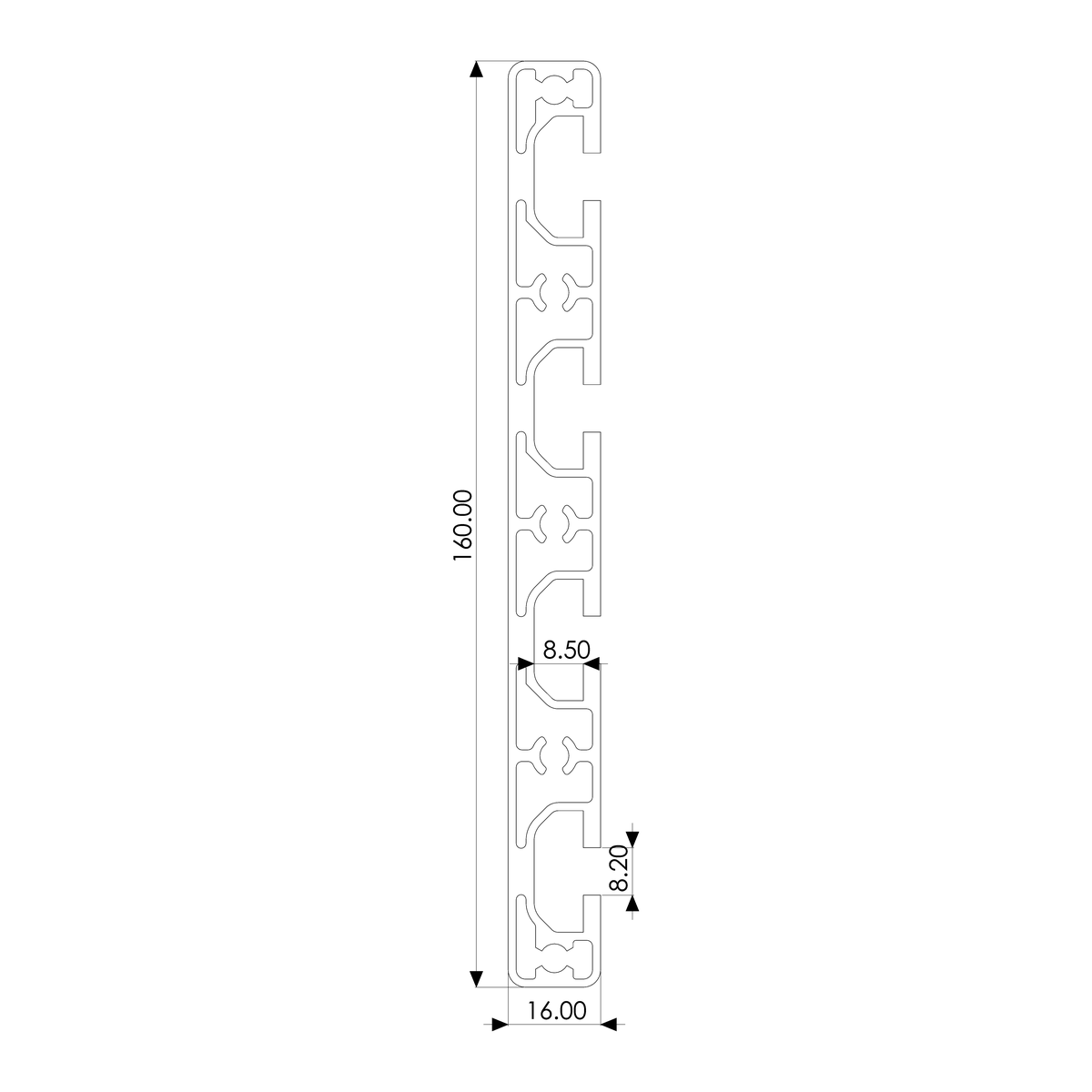

Profile 16×160, 4E, light, plain
E-Slot
SKU1.09.016160.44LP
3D ModelSTEP(667.0 KB)—
Used in light duty tables that require T slots, sometimes used as rails as well.
50mm6000mm
mm
Engineering Specifications
| Property | Symbol | Value | Unit |
|---|---|---|---|
| Moment of Inertia | Ix | 221 | cm⁴ |
| Moment of Inertia | Iy | 3.2 | cm⁴ |
| Section Modulus | Wx | 27.5 | cm³ |
| Section Modulus | Wy | 3.2 | cm³ |
| Weight per Meter | G | 2.6 | kg/m |
Material: EN AW-6063 T5 (AlMgSi0.5) · E-modulus: 70,000 N/mm²
Compatible Accessories
47 accessories work with this profile across 10 categories
